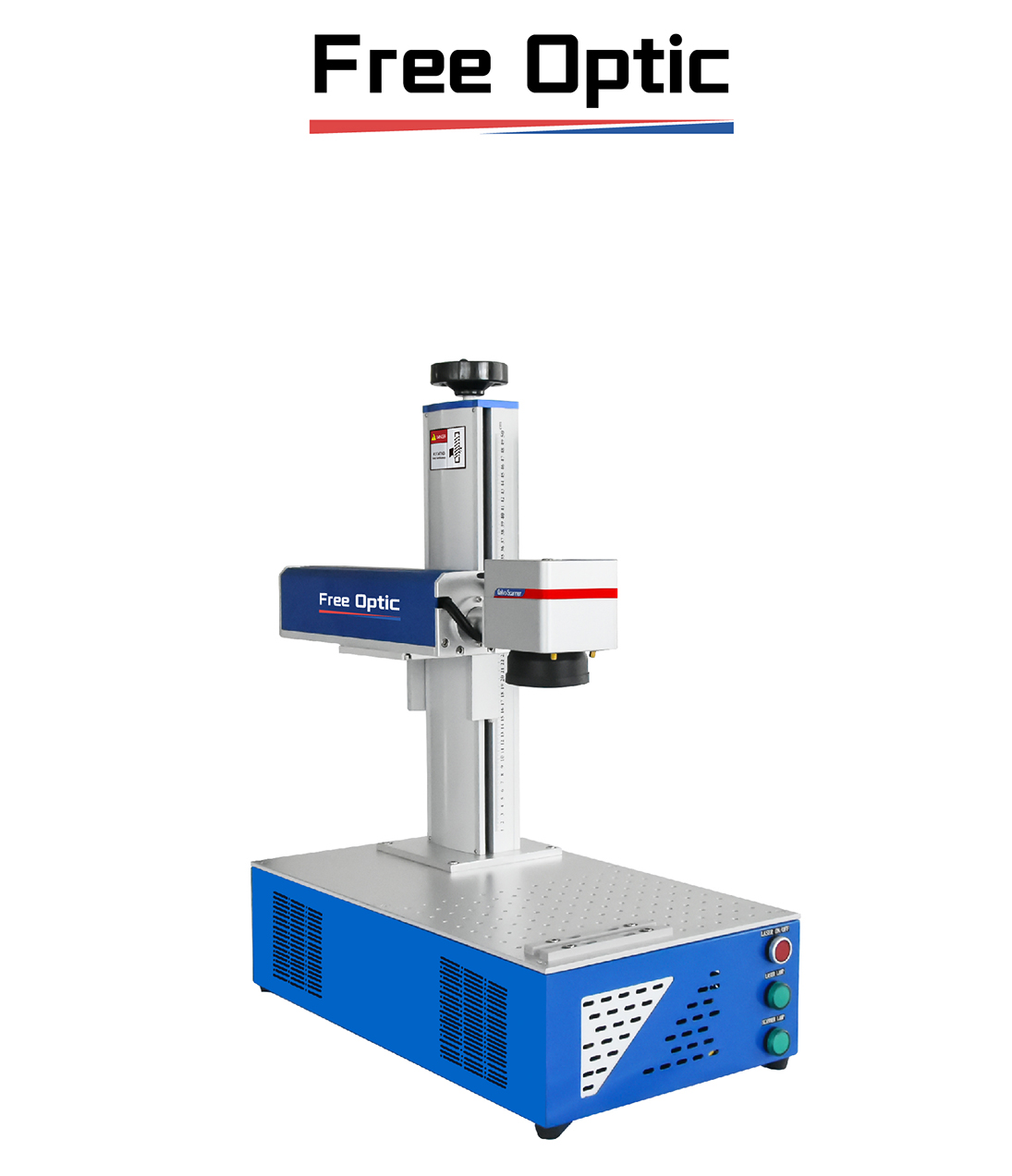

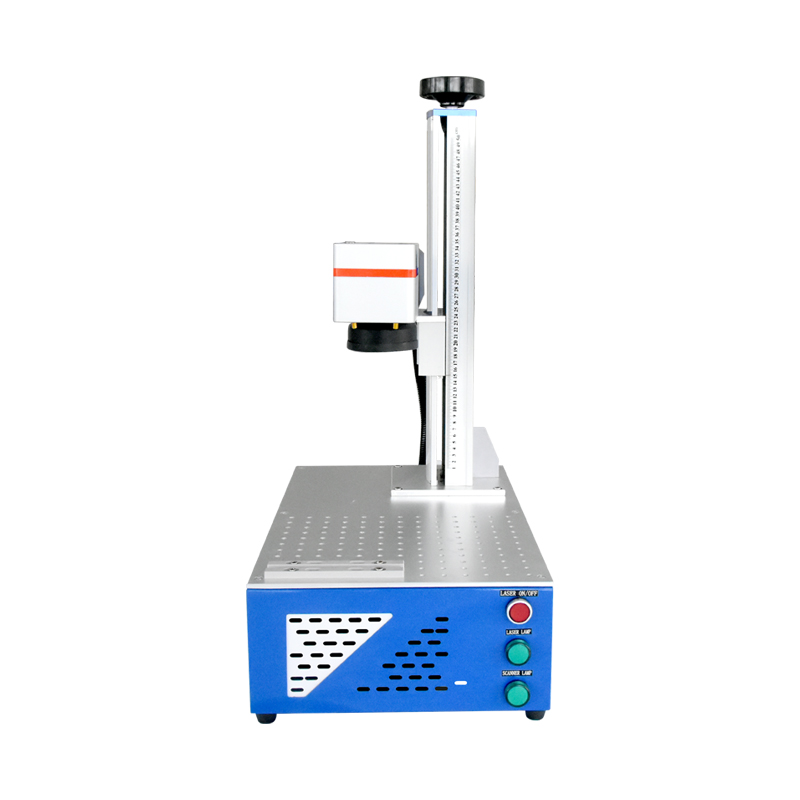

Wholesale High Quality Mini Fiber Laser Engraving Machine on the Table Fiber Laser Marking Machine 20w 30w 50w

Short Description:

1. Small desktop portable fiber laser marking machine
2. 20W, 30W, 50W different powers are available
3. The maximum marking range can be 200x200mm
4. Small size and light weight, suitable for international express transportation
5. Small footprint, it can achieve marking work without taking up a lot of space
6. It can be connected to your laptop for operation, or we can provide you with an integrated computer with a touch screen.


Product Detail

Product Tags

Product Advantages

1. Small size machine, suitable for marking smaller workpieces.

2. It is suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc..

3. Some non-metal materials including PC, ABS, HDPE, tires, mirrors etc.

4. Can be equipped with rotary tooling to achieve circular marking.

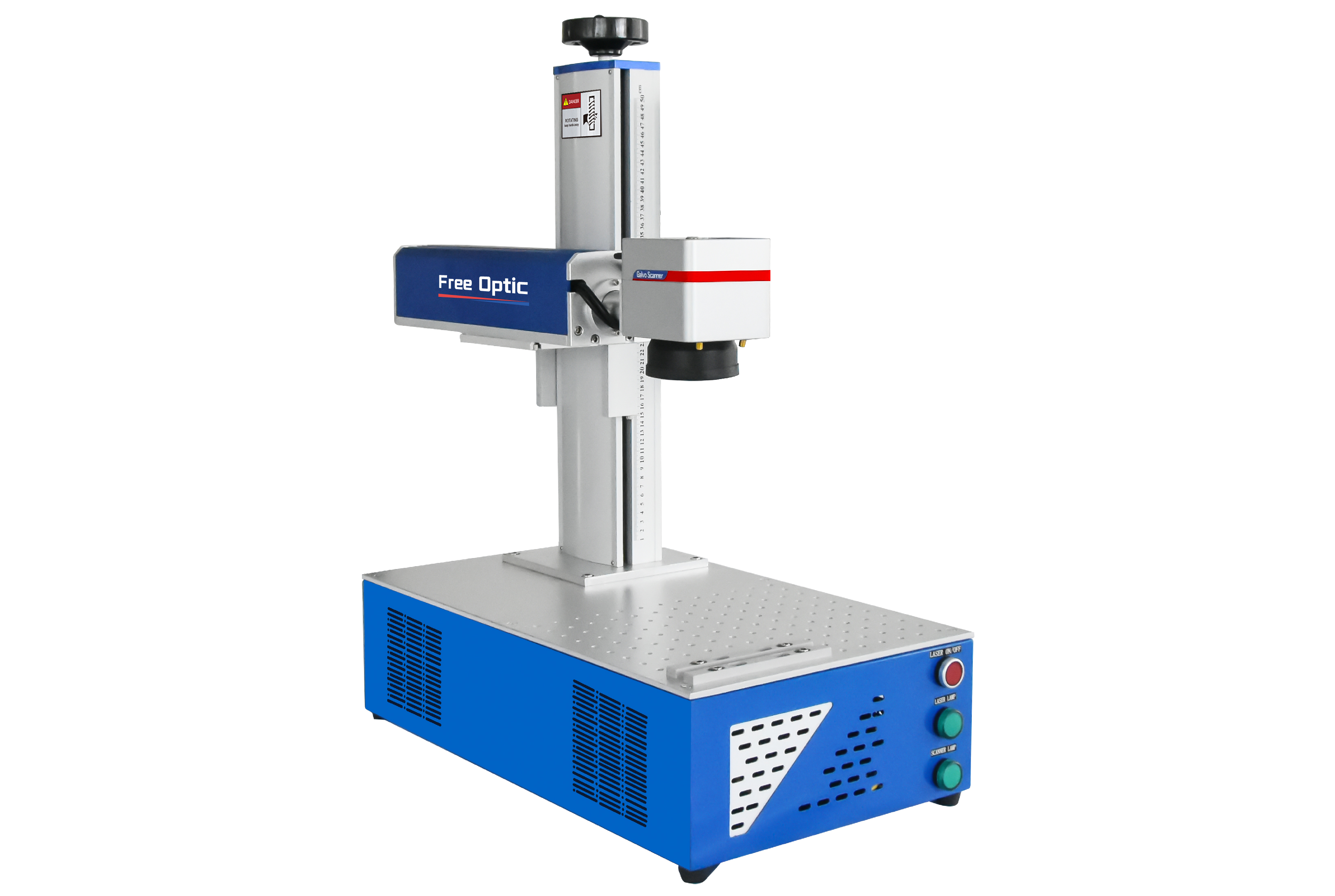

桌面打标机-最新_画板 1

Technical Parameters

FP-50Z Fiber Laser Marking Machine Technical Parameters
1 Model FP-50Z
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 50W
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%, 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

Laser Marking Samples

桌面打标机-最新_画板 1 副本

Product Characteristics

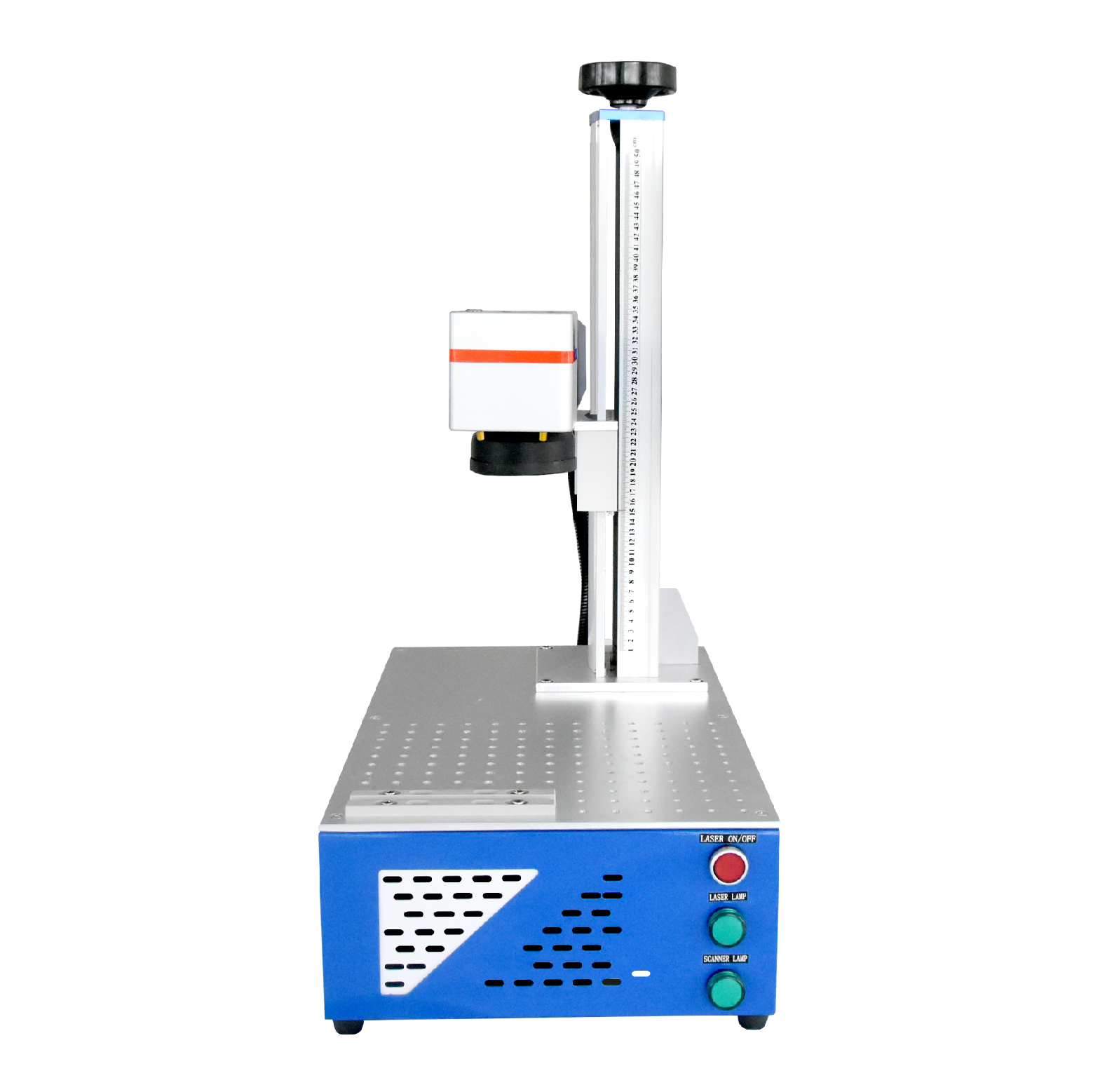

桌面打标机-最新_画板 1 副本 11

Wide range of applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Marking speed is fast
Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

Product Detail

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Q1: How can I get the best machine for me?

A1: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your needs or not. Then we can give you the best machine depends on our experience.



Q2: This is the first time I use this kind of machine, is it easy to operate?

A2: We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.



Q3: If the machine has problem in my place, how could I do?

A3: The machine has two years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".



Q4: This model is not suitable for me, do you have more models available?

A4: Yes, we can supply many models, such as portable fiber laser marking machine, table fiber laser marking machine, enclosed fiber laser marking machine, CO2 laser marking machine, UV laser marking machine and so on. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!

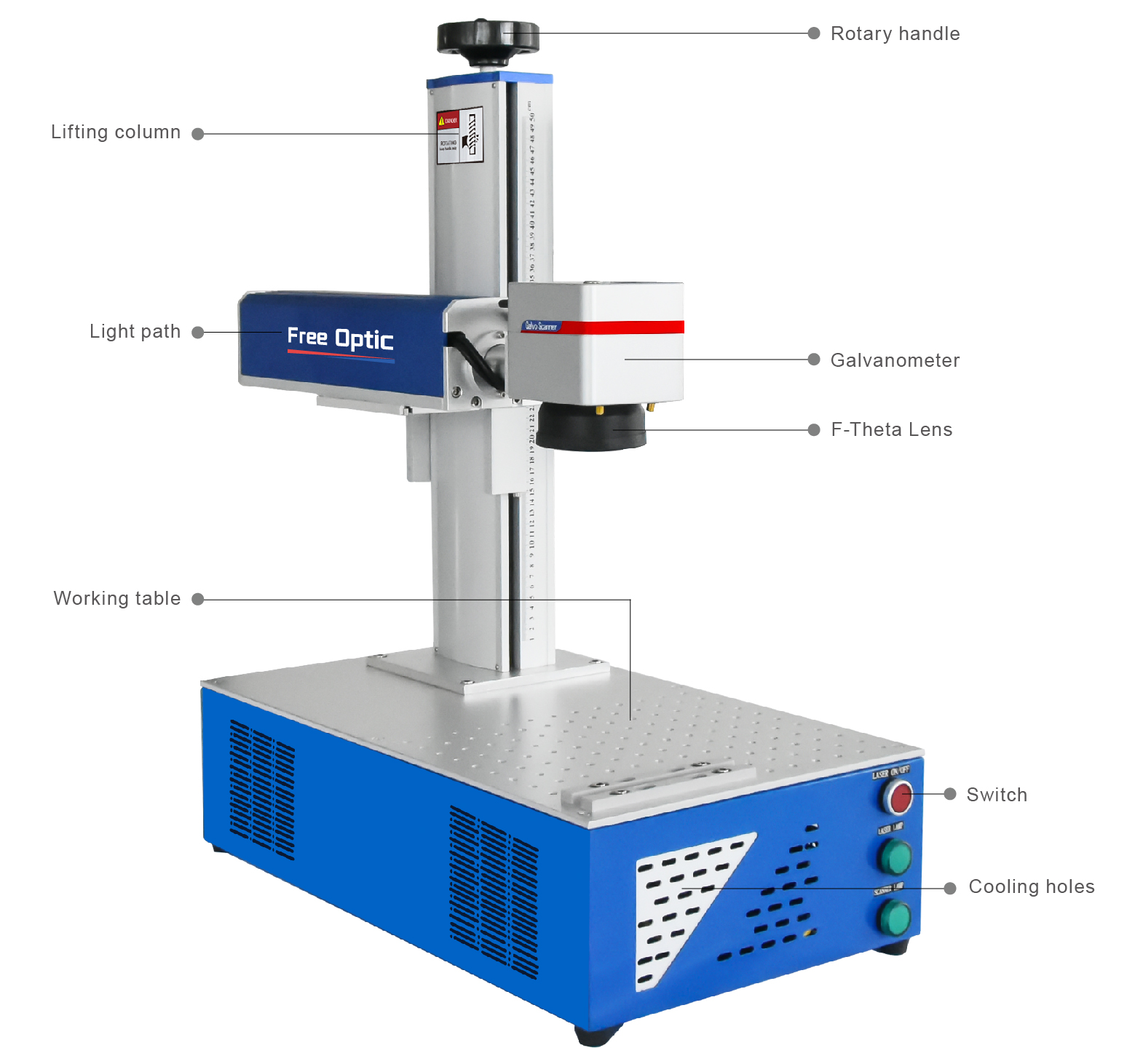

桌面打标机-最新_画板 1 副本 3

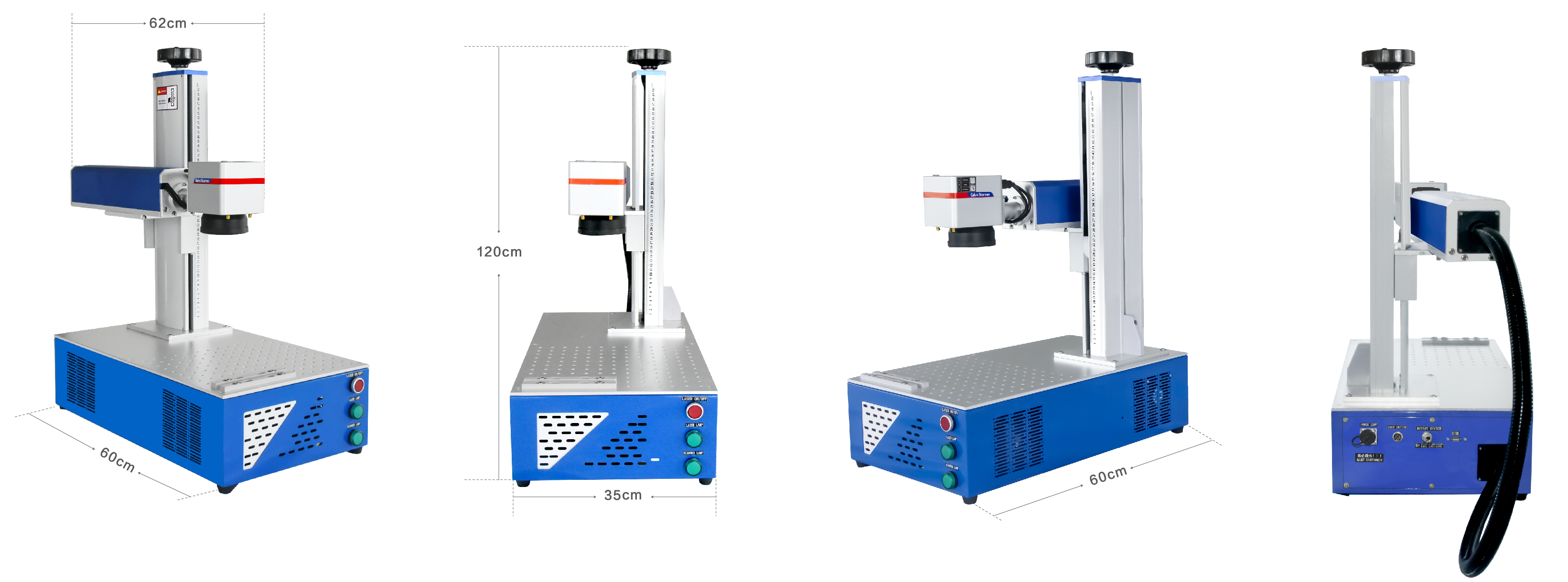

桌面打标机-最新_画板 1 副本 4

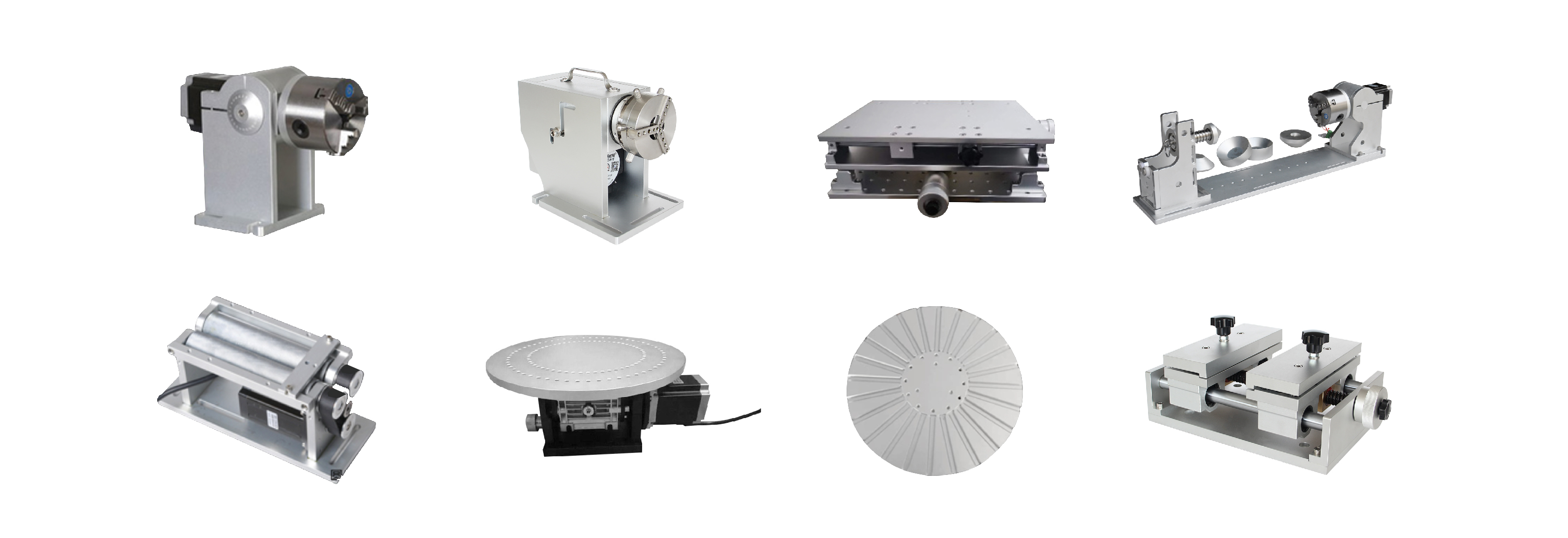

Configuration Options

桌面打标机-最新-06

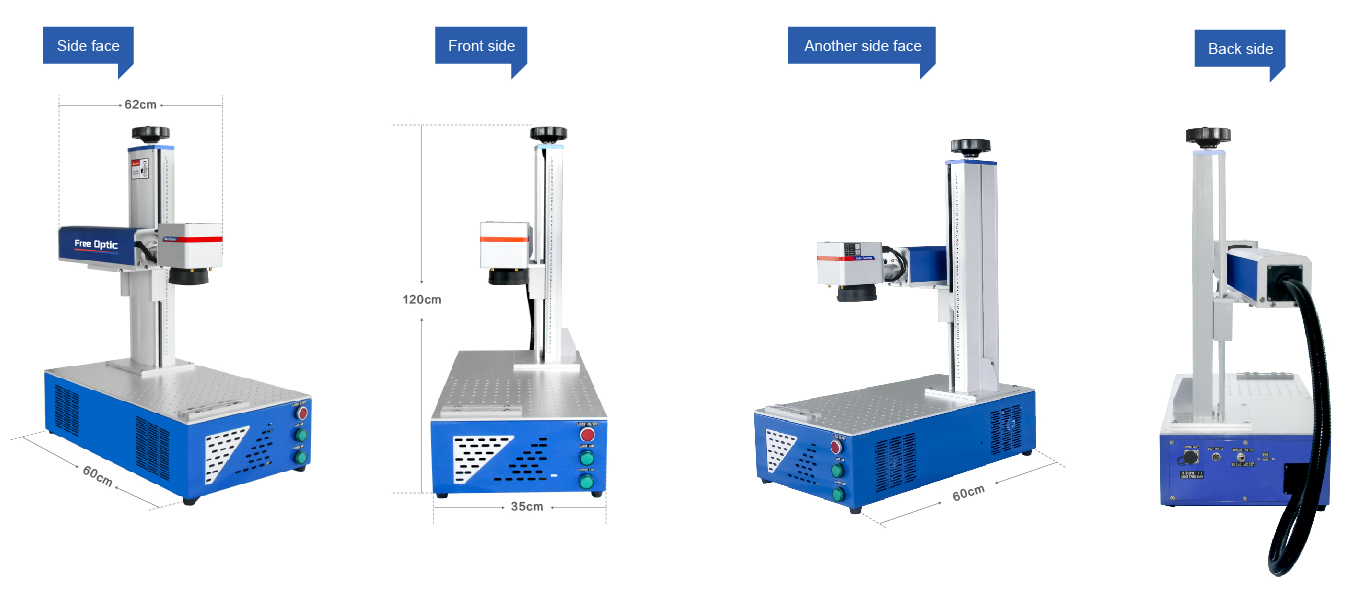

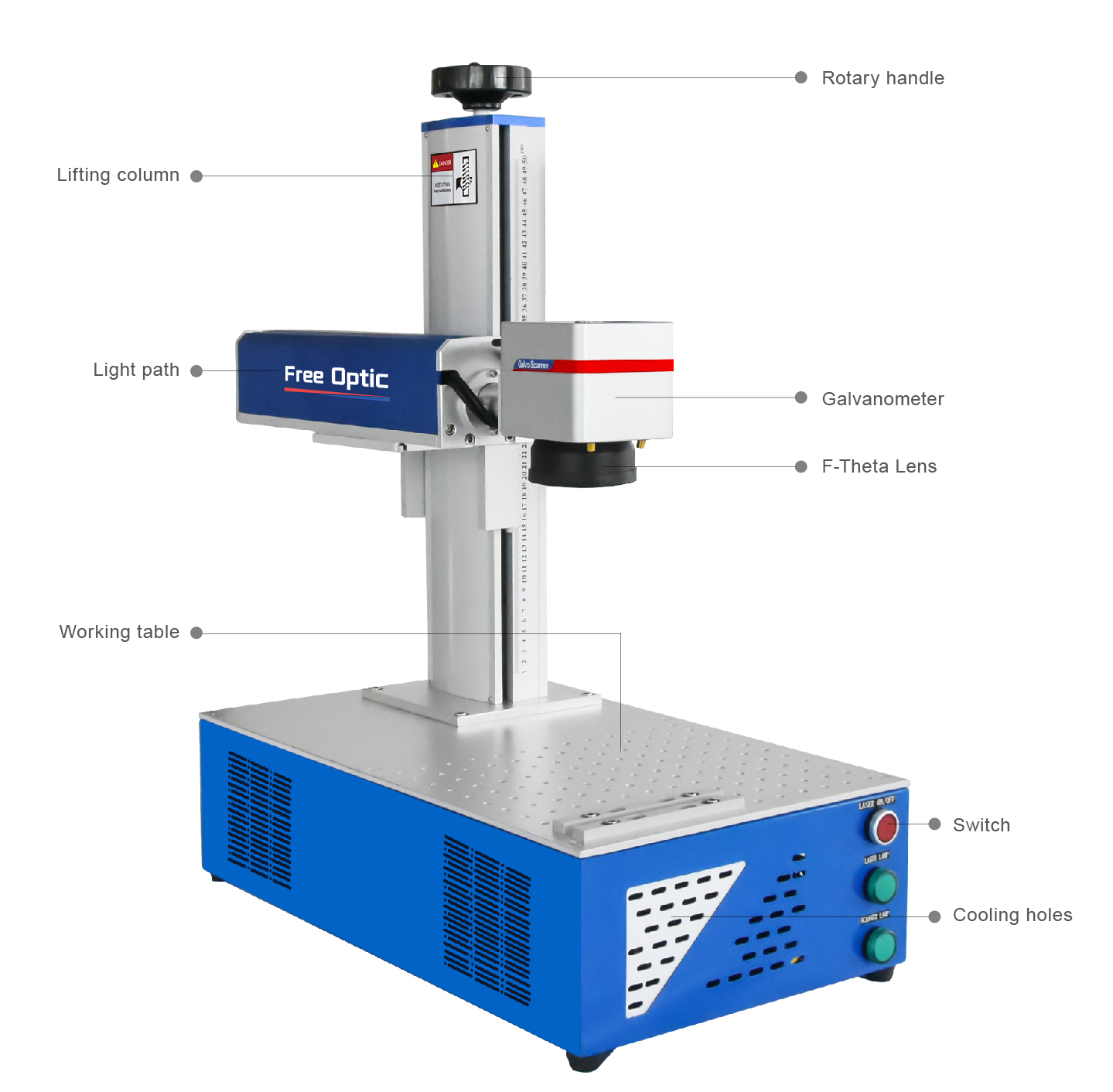

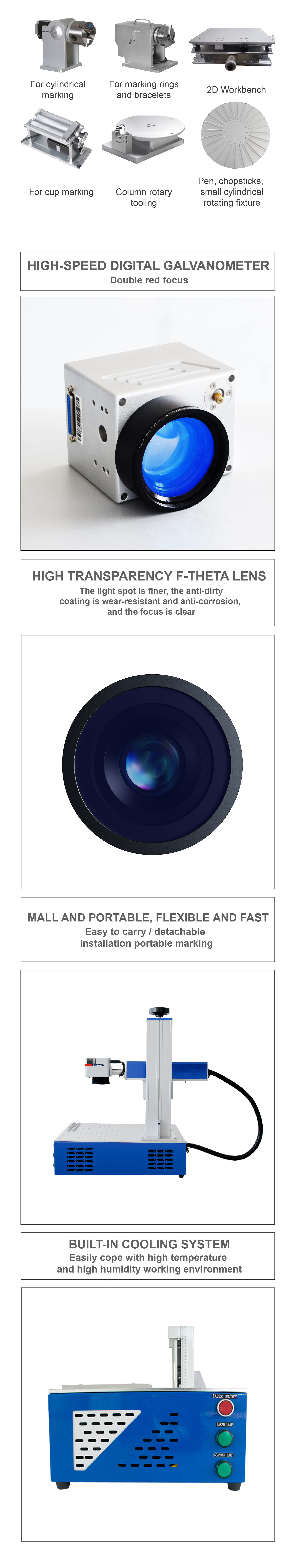

Machine Details Display

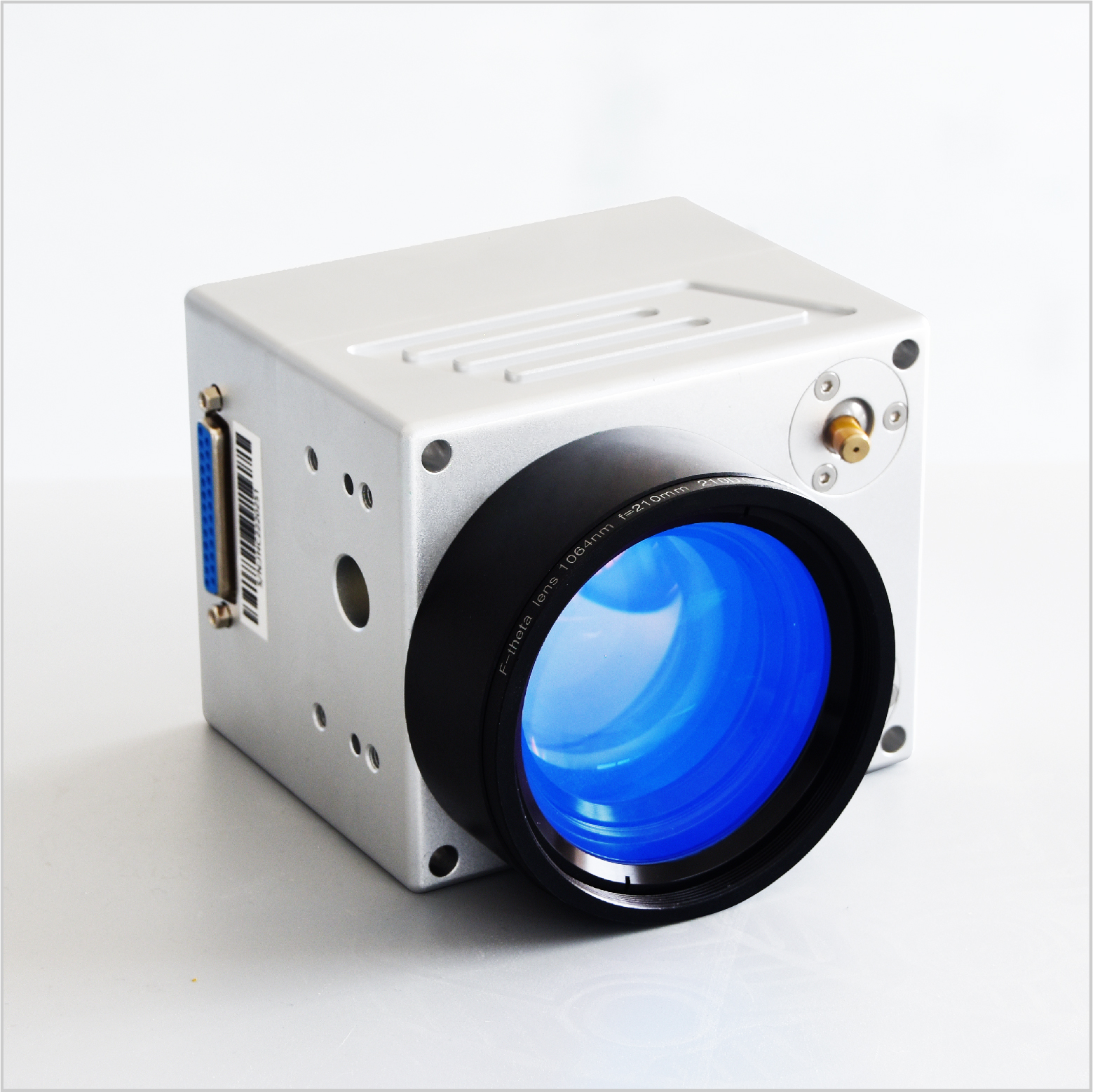

桌面打标机-最新_画板 1 副本 6

High-speed digital galvanometer
Double red focus

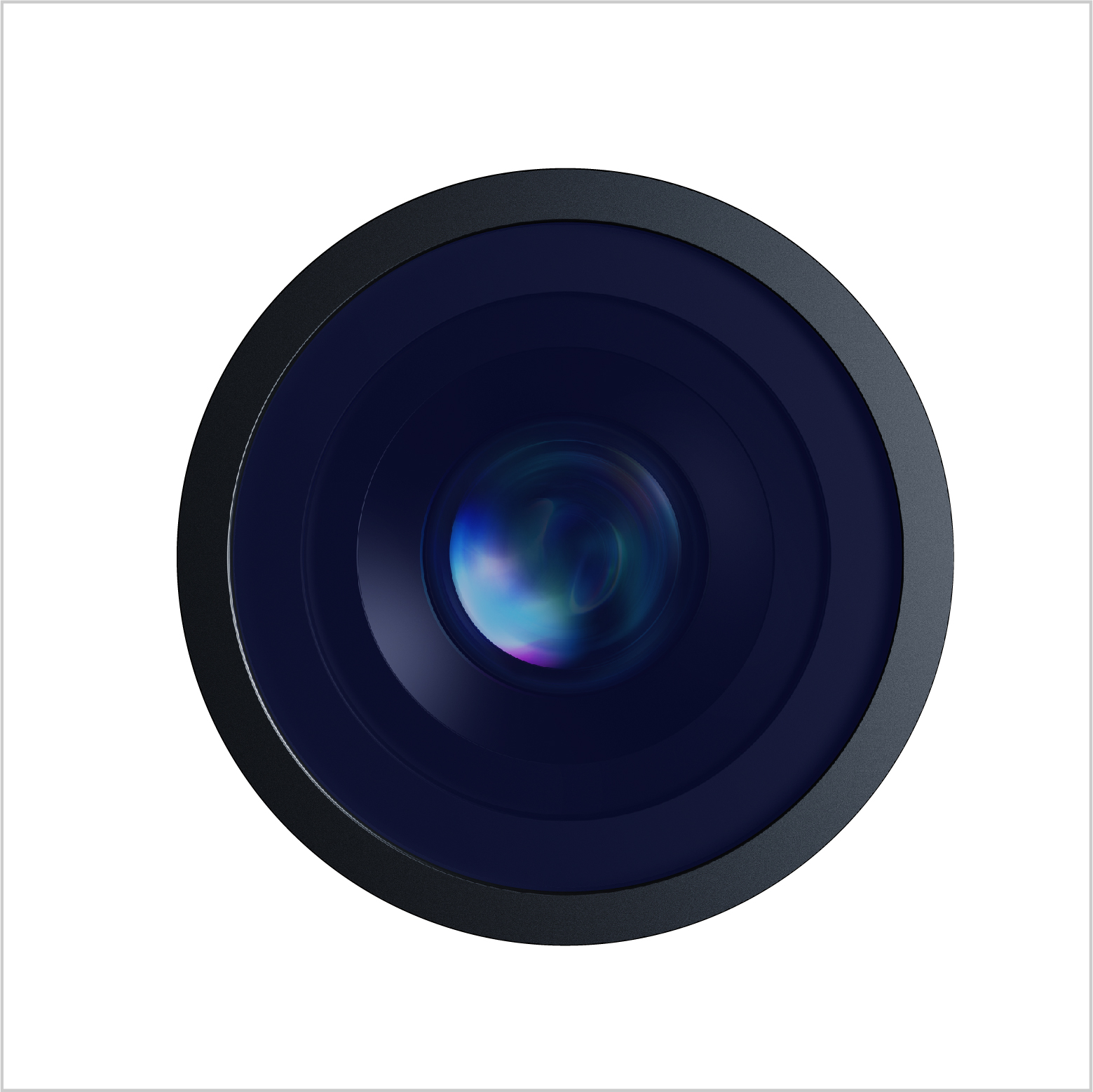

High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

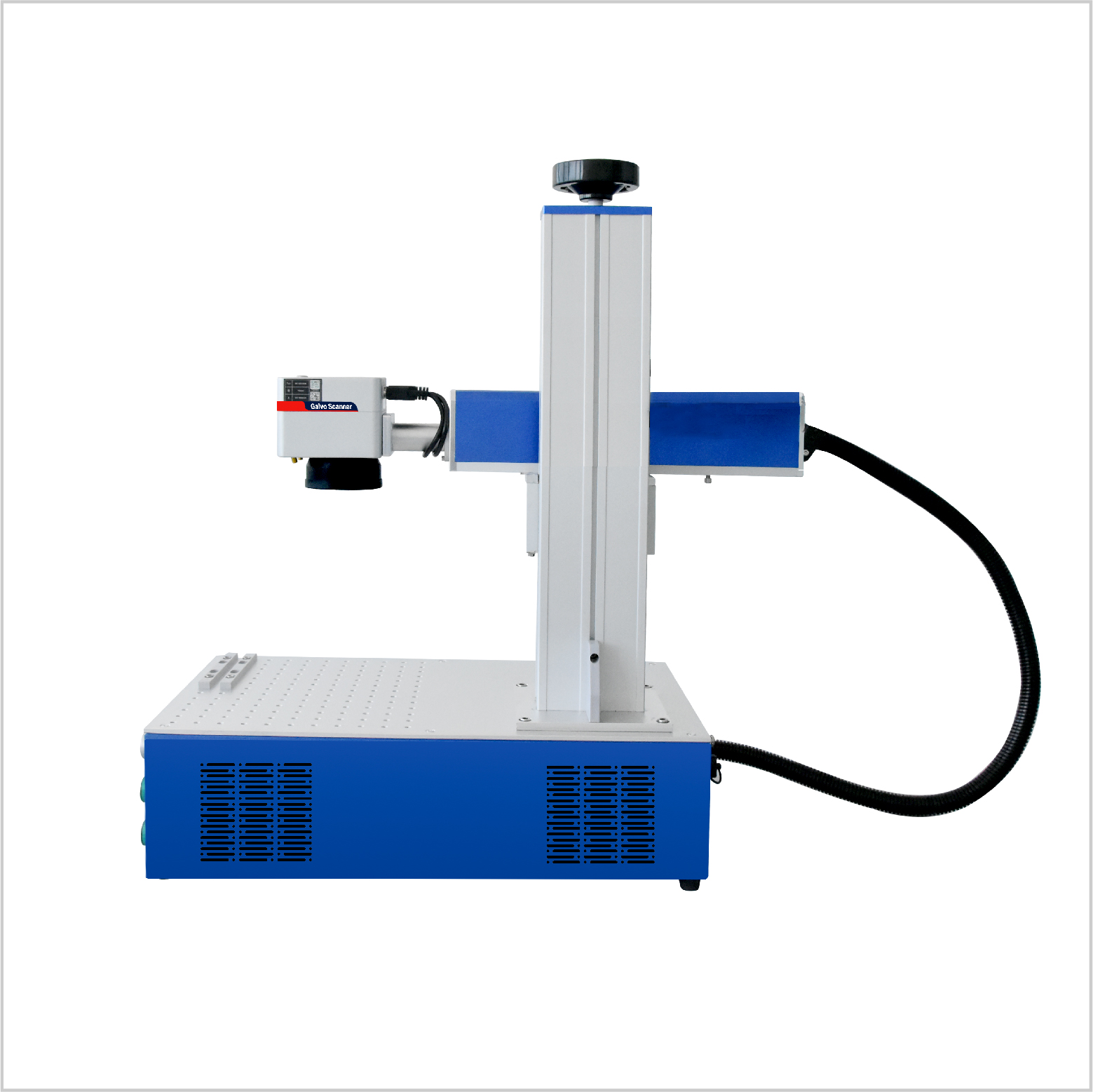

桌面打标机-最新_画板 1 副本 7
桌面打标机-最新_画板 1 副本 8

Mall and portable, flexible and fast
Easy to carry / detachable installation portable marking

Built-in cooling system
Easily cope with high temperature and high humidity working environment

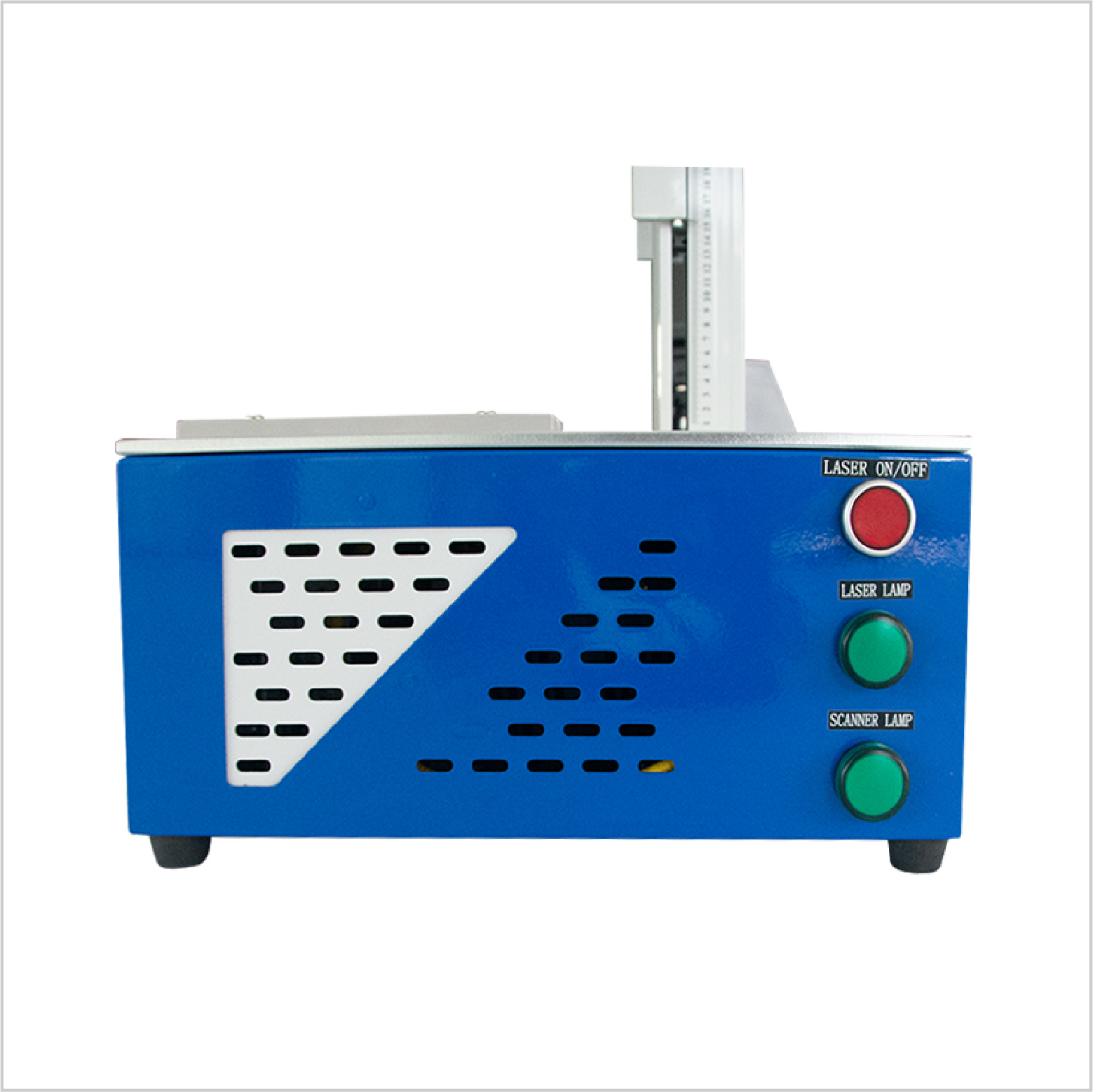

桌面打标机-最新_画板 1 副本 9
