Super Quality Large Working Area FOR Acrylic 450w CO2 Laser Engraving Machine 1325 Laser cutting machines

Short Description:

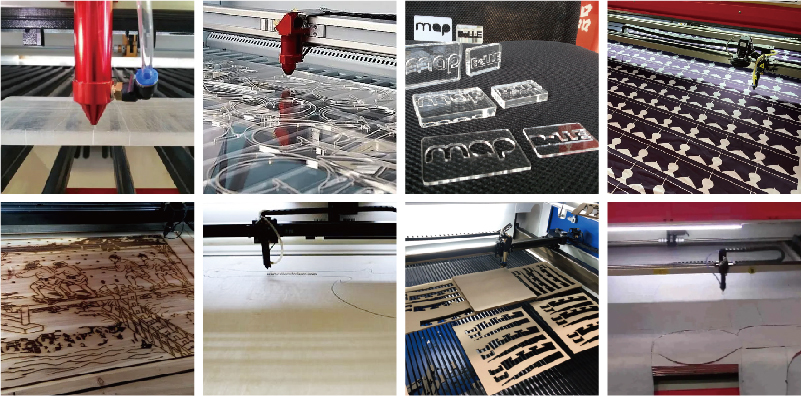

Acrylic, plexiglass, wood board, density board, sandwich board, paper cardboard, leather, cloth, felt, velvet products, plastic board, film products, leaves and other materials for cutting and marking applications.

Typically used in advertising products, craft production, model craft, cloth art, leather product industry, clothing design blanking, craft gifts, wooden toys, exhibition display, decoration and other industries.

Send email to us

Product Detail

Product Tags

Main Advantages

FP1325PG CO2 laser engraving cutting machine

Double drive high speed
Independent research and development original: Y-axis rack double drive + X-axis screw hybrid transmission mode

Meet the high-speed cutting requirements of 450W/300W users, and the Y-axis dual servo motor drive meets the high-speed cutting requirements of 450W/300W laser tubes under high load. At the same time, the unique transmission structure and precision assembly realize cutting stability and better cutting effect. Ordinary models will have obvious jagged sections when cutting fast (speed over 30mm/s). This model meets the requirement of cutting a smooth section at a speed of 120mm/s.

Low vibration
Multi-connected bridge gantry structure --- more stable characteristics at high speed to meet high precision and cutting quality

Unique gantry structure and transmission components, reducer with customized parameters and aviation-grade aluminum profiles with independent molds, unique structural design of gantry columns, and precision assembly. After more than a dozen batches of products have been repeatedly optimized and improved, the vibration and vibration during machine tool operation (especially during acceleration, deceleration and reversing) have been better suppressed to achieve high cutting quality at high speed. The optical path and beam of the laser directly affect the cutting effect and cutting speed when vibrating, and the laser tube is more stable and reliable.

Sheet tube welding
Sheet tube welding heavy bed structure

Technical Parameters

FP1325 Big Power 450W CO2 Laser Engraving Cutting Machine Specification Sheets

FP1325 450W CO2 Laser Cutting Machine Technical Parameters
1	Model	FP1325
2	Laser type	Co2 Glass Inner Cavity Sealed Laser
3	Max. processing range at one time	1250x2550mm
4	Feed Width	1400mm
5	Weight	750kg
6	Fastest movement speed of the machine tool	60m/min
7	Fastest working speed	40m/min
8	The best cutting speed segment	1mm/s-180mm/s
9	speed control	0-100% stepless control
10	Laser Energy Control	Software control/manual adjustment two optional modes
11	Laser tube cooling	Forced water cooling (industrial chiller)
12	mechanical resolution	0.025mm
13	The thickest cutting depth	30mm (acrylic as an example)
14	Repeatability	±0.1mm
15	power supply	AC220V±15% 50Hz
16	Total power	≤3000W
17	Support software format	BMP PLT DST AI DXF DWG
18	Drive	Servo motor drive Y rack double drive + X screw drive system
19	Working temperature	0℃～45℃

Configuration Options

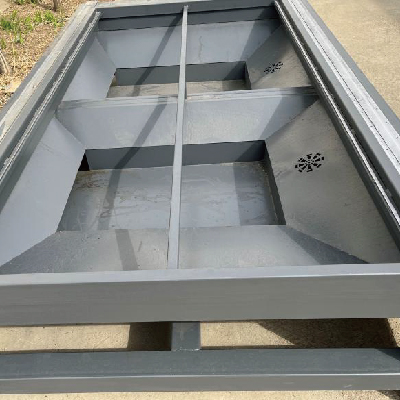

High strength reinforced steel frame welding machine bed

The platform blade supports the CNC gantry milling process to ensure the levelness of different positions of the platform during processing, and the platform error of the whole board is less than 0.1mm, ensuring the cutting effect of the entire format.

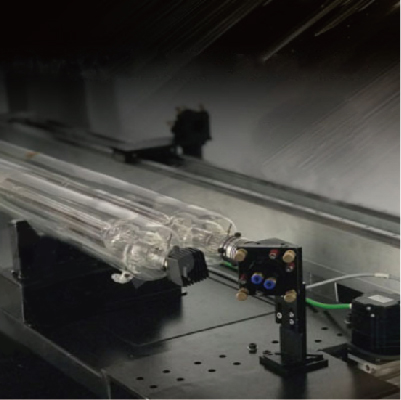

Use 450W high power laser tube

Double-tube folding balance cavity structure, laser tube light output adjustment head design better laser mode.

Marble stand, double high-voltage design, dual power supply synchronous power supply, long life and stability.

Unique laser tube mounting platform architecture designed for high power.

Support high-power and more reliable optical lenses.

The silicon-based gold-plated material of the reflector has a diameter of 30mm, and the industrial-grade precision optical bracket is equipped with a lens water cooling function.

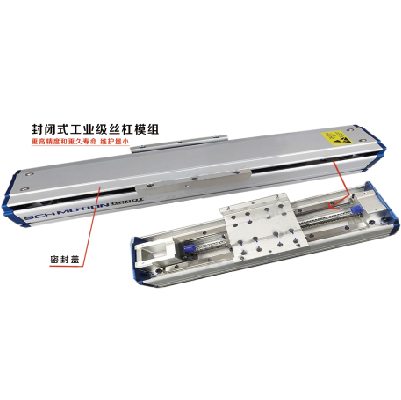

The X-axis screw drive assembly adopts a sealed industrial linear module.

Higher precision, longer life of dust-proof structure, less maintenance.

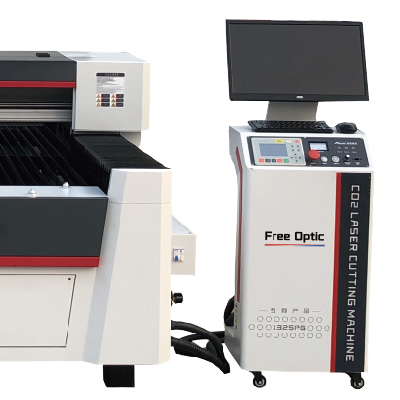

Independent control cabinet

In terms of operation, electronically controlled separation is more stable

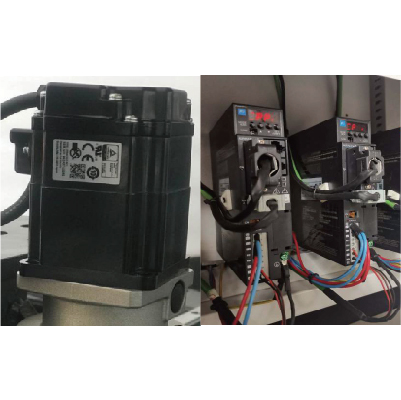

Adopt Fuji Fuji or HCFA servo motor

Japanese Nidec SHIMPO precision reducer

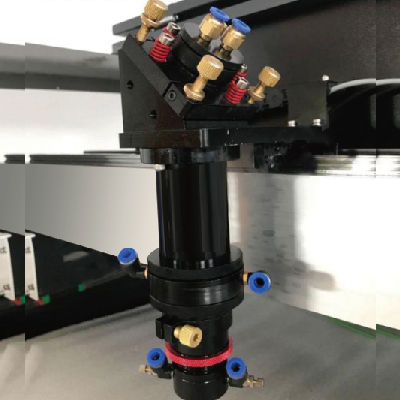

Self-developed high-power dedicated water-cooled laser head, modular replacement or optional focusing mirror, compatible with a variety of 20/25/30 diameter and focal length focusing mirrors, the height of the cutting nozzle can be adjusted freely.

450W cutting capacity reference table (Compared with 150W laser reference)

450W cutting capacity reference table
Material	Material thickness	Cutting speed	Best cutting speed
Acrylic	3mm	100-160mm/s	120mm/s
	5mm	60-85 mm/s	60mm/s
	8mm	25-40mm/s	30mm/s
	15mm	8-15mm/s	9mm/s
	20mm	4-8mm/s	4mm/s
	30mm	2-3mm/s	2mm/s
Note: The above speed is for reference only. The fastest cutting speed will be different due to material difference, environment difference, voltage and other influences. The optimal cutting speed refers to the speed at which the new laser tube is taken as an example to ensure the cutting effect.
