Electric Lifting Motorised Lifting fiber laser marking machines marking laser machines

Short Description:

1. Suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc..

2. Suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc..

3. Some non-metal materials including PC, ABS, HDPE, tires, mirrors and etc. Electric lifting column, press the up and down switch button to achieve easy focus.

4. Machines with different powers are available, such as 20W, 30W, 50W, 100W, 200W.

Send email to us

Product Detail

Product Tags

Product Advantages

Electric lift laser marking machines offer several advantages over manual hand-crank models, making them a superior choice for many industrial applications:

a) Precision and Control: The electric lift system can ensure that the laser focus is optimal for various marking tasks. This leads to improved marking quality and consistency.

b) Ease of Use: With the electric lift, height adjustments are automated and can be controlled with the push of a button, reducing the physical effort required and increasing operational efficiency.

c) Time-Saving: The electric system allows for faster setup, especially when working with multiple workpieces of different heights, significantly reducing downtime between marking jobs.

These benefits make electric lift laser marking machines a preferred choice for industries requiring precision, efficiency, and safety in their marking processes.

Technical Parameters

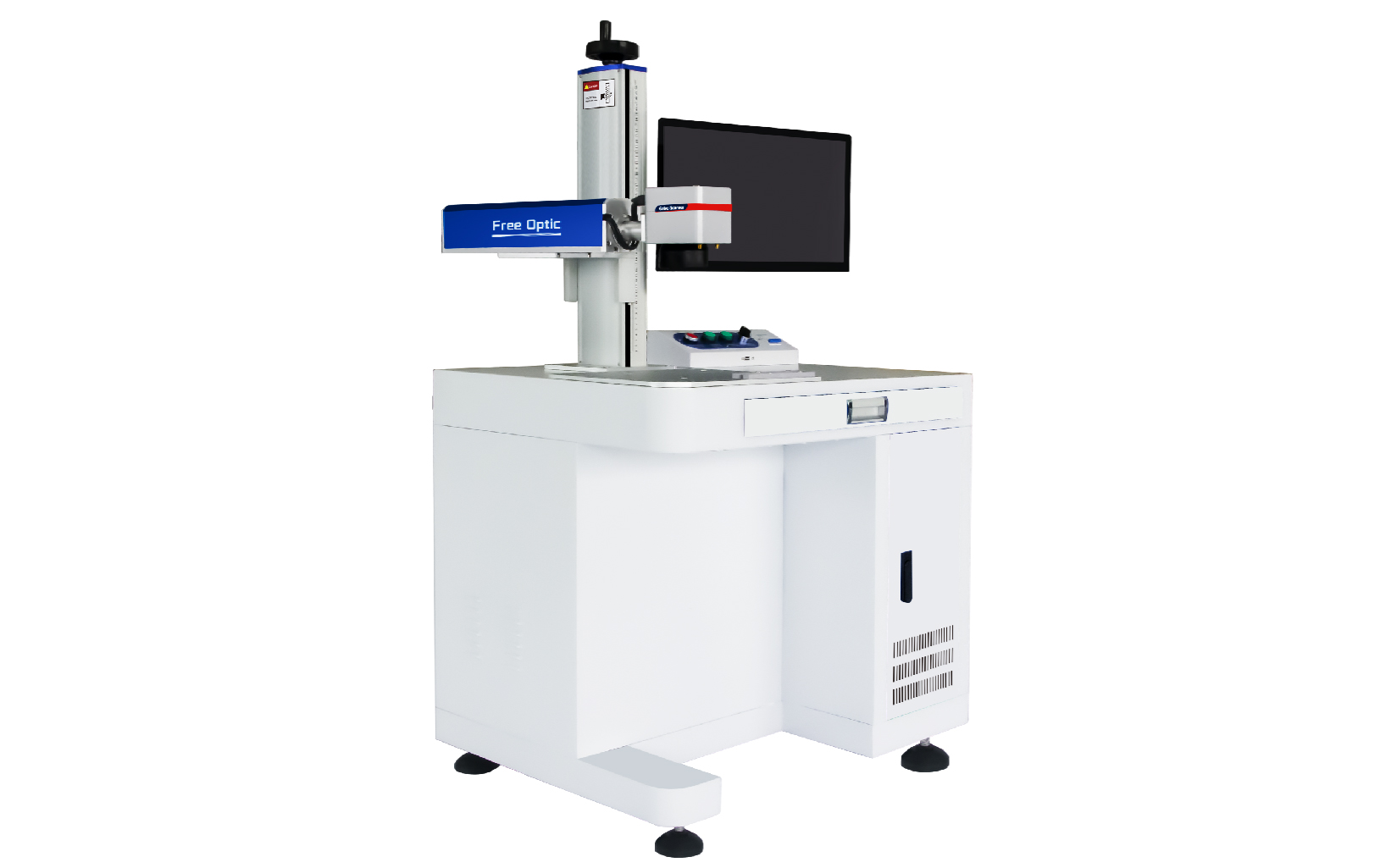

FP-20T Series Electric Lifting Desktop Fiber Laser Marking Machine
1	Model	FP-20T (30T/50T/100T/150T/200T)
2	Beam quality	M2 ：＜1.5（TEMOO M）
3	Average output power	20W/30W/50W/100W/150W/200W
4	Marking speed	≤12000mm/s
5	Laser wavelength	1064nm
6	Laser repetition frequency range	30khz-100khz (adjustable)
7	Character size	0.2mmx0.2mm
8	Output spot diameter	0.017mm
9	Marking range (optional)	110x110mm (standard) Optional: 70x70mm, 150x150mm,175x175mm, 200x200mm, 250x250mm, 300x300mm(The greater the range, the less energy)
10	Repeatability	0.01mm
11	Output fiber length	3m
12	Power adjustment range	10%-100%
13	Total power	≤500W
14	Cooling system	Air cooling
15	Output power stability	＜3%
16	Output power stability	0℃-40℃
17	Power supply	AC220V±10%, 50HZ/60HZ
18	File Format	BMP/DXF/PLT/JPEG/HPGL

Laser Marking Samples

Product Characteristics

Wide Range Of Applications
It is suitable for marking, cutting and punching of various non-metallic materials, such as plastic, rubber, resin, ceramics, coating, stone, leather, acrylic, wood, paper, cloth, etc. Widely used in clothing, leather products, electronic components, pharmaceuticals, food packaging, handicrafts and other fields.

Permanent Marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

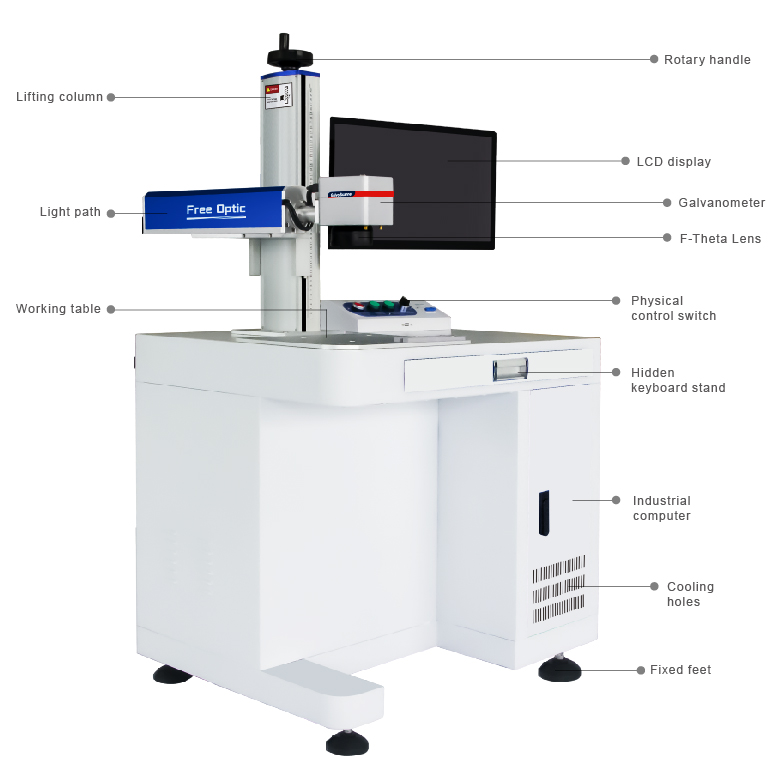

Product Detail

Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Low environmental requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.

No consumables required
No need for any consumables, non-toxic, no environmental pollution, high environmental protection

Red light positioning
Using red light positioning system, convenient positioning and high positioning accuracy.

Extensions
Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.

Computer program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.

1. What should I do if there is a problem with the machine during use?
Cooperate with Free Optic, please don't worry about after-sales problems. Once there is any problem with the machine, please contact us at the first time, we have a professional technical team to solve it for you at the first time.
