New Arrival Cost-effective 1325 CO2 Laser Cutting Engraving Machine for Wood Plastic Leather Acrylic
FP1325PL CO2 laser engraving cutting machine
1. High strength heavy steel frame welded structure, after aging and high temperature annealing treatment. Precision welding frame coupled with heavy frame ensure the high strength and high reliability of the bed.
2. The frame guide plane goes through CNC planer milling by fiber laser cutting machine standard to ensure the levelness and parallelism of the machine tool.
3. Excellent transmission components, Y axis double motor drive, ensure the high speed machining performance of the machine.
4. Optical mirror stand, more stable optical path.
5. The whole machine is equipped with leakage overload protector.
6. Excellent transmission components, Y axis with double motor drive ensure the high speed machining performance of the machine.
7. Optical mirror stand, more stable optical path.
8. Full edge search for 1CM square error is small.
9. Exclusive patent: double blowing and anti-fire function.
10. It is equipped with two sets of suction system: double fans down function system and auxiliary upper suction system, better smoke extraction effect.
11. The fan and air pump are automatically switched on and off to save electricity and less noisy.
FP1325 CO2 Laser Engraving Cutting Machine Specification Sheets
| 1 | Model | FP1325PL | |||||||||
| 2 | Laser type | Co2 Glass Inner Cavity Sealed Laser | |||||||||
| 3 | Laser power | 150W | |||||||||
| 4 | Max. processing range at one time | 1225*2450mm | |||||||||
| 5 | Max. Feeding width | 1400mm | |||||||||
| 6 | Weight | 950kgs | |||||||||
| 7 | Max. movement speed of machine | 80m/min | |||||||||
| 8 | Max working speed | 40m/min | |||||||||
| 9 | Speed control | 0-100% | |||||||||
| 10 | Laser energy control | 2 options: Software control／Manual adjustment | |||||||||
| 11 | Laser tube cooling | Forced water cooling（Industrial chiller） | |||||||||
| 12 | Machine resolution | 0.025mm | |||||||||
| 13 | Min. shaping character | Chinese 2mm , English 1mm | |||||||||
| 14 | Max. cutting deepth | 20mm (For Example: acrylic) As to material | |||||||||
| 15 | setting positioning accuracy | ±0.1mm | |||||||||
| 16 | Power supply | AC220V±15% 50Hz | |||||||||
| 17 | Total power | ≤1500W | |||||||||
| 18 | File format supported | BMP PLT DST AI DXF DWG | |||||||||
| 19 | Driving | Digital subdivision step drive | |||||||||
| 20 | Operating humidity | 5%～95% | |||||||||
High strength reinforced steel frame welding machine bed
The machine bed adopts the structure of high-strength reinforced steel frame welding machine tool, and the mounting surface of the frame rail with the fine processing and grooving of CNC planer milling machine.
Machinical grade precision assembly

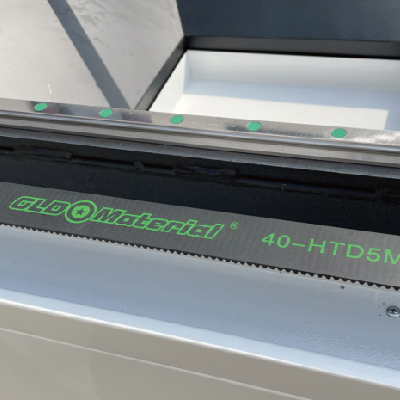

Belt transmission
High transmission efficiency and stability, high strength anti-aging, good flexure resistance

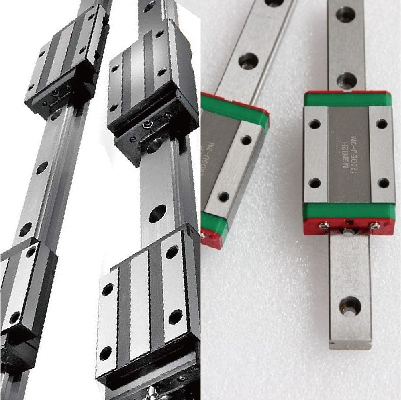

Taiwan PMI/HIWIN linear guide rail
The transmission system adopts three Taiwan HIWIN square linear guide rail with imported bearing wheel, with high speed, convenient maintenance, which service life is three times more than ordinary guideway.
Especially suitable for the corrosion of guide rail caused by smoke during laser cutting, the operation is more stable and the noise is low.

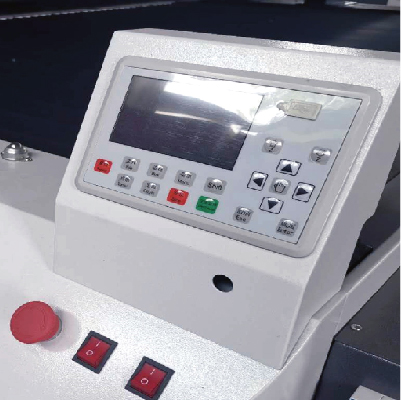

Control system
Support USB transmission, U disk data import
Support continuation engraving and cutting after power off restart function
USB3.0 chip is used to support all brands of U disk
Support standard RJ45 network cable data transmission

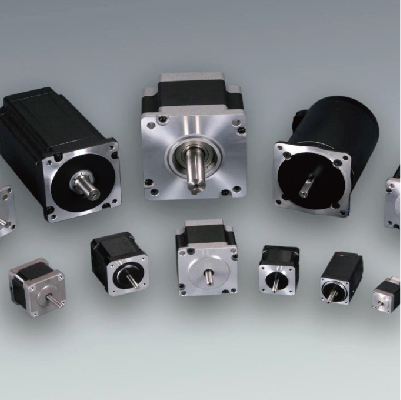

Three phrase stepper motor
Using the full digital three-phase stepper motor driver and matching motor, the balance of power and torque is much better than the two-phase stepper system widely used in the industry.
America II-VI focusing lenses

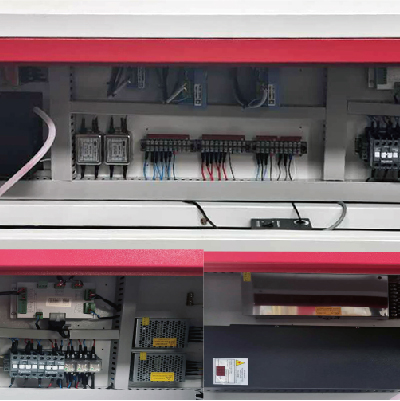

European standard industrial electric cabinet
The safety and reliability of circuit are superior to the industry standards and regulations.
-
