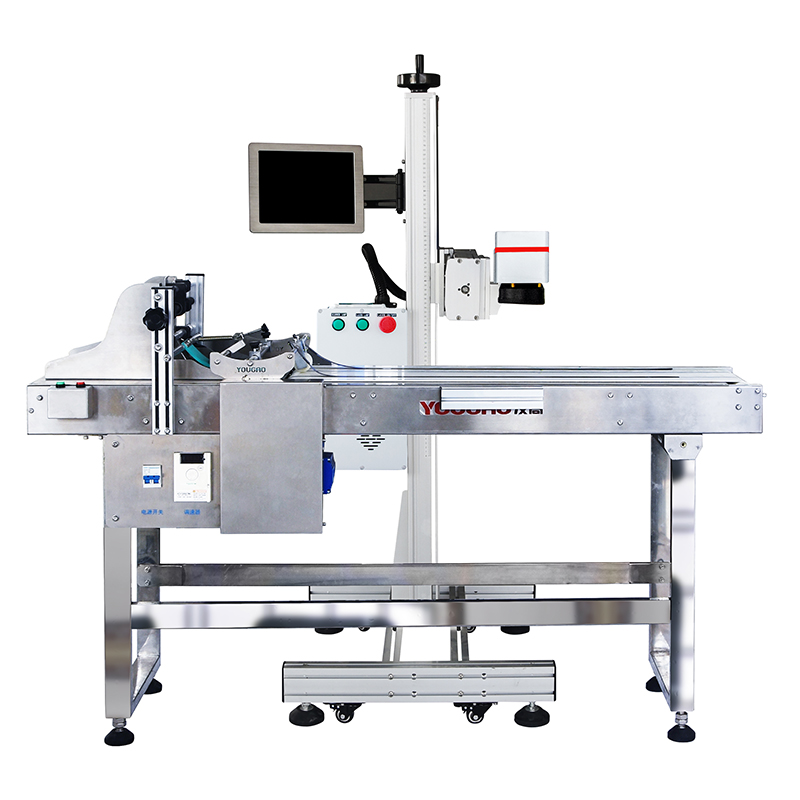

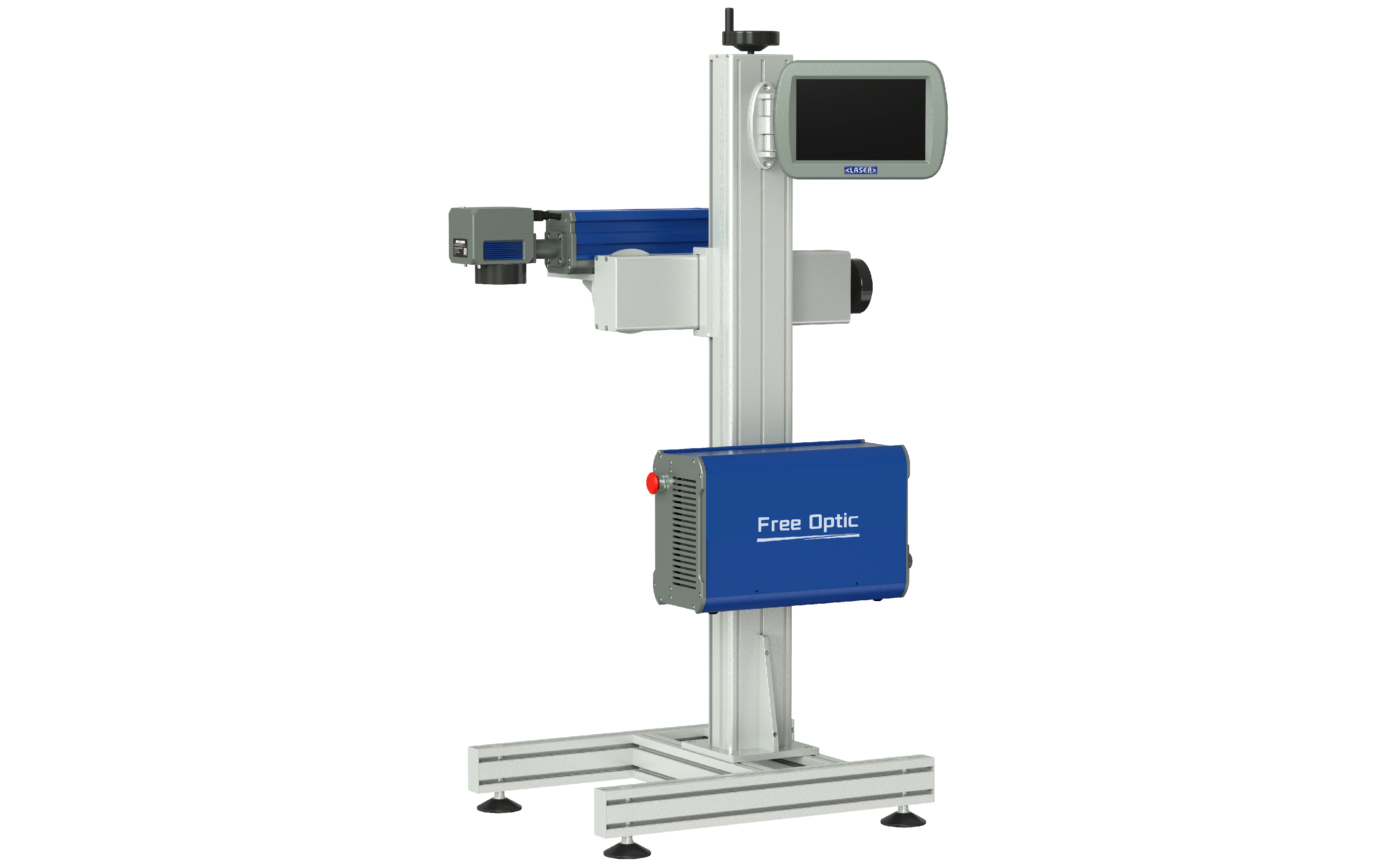

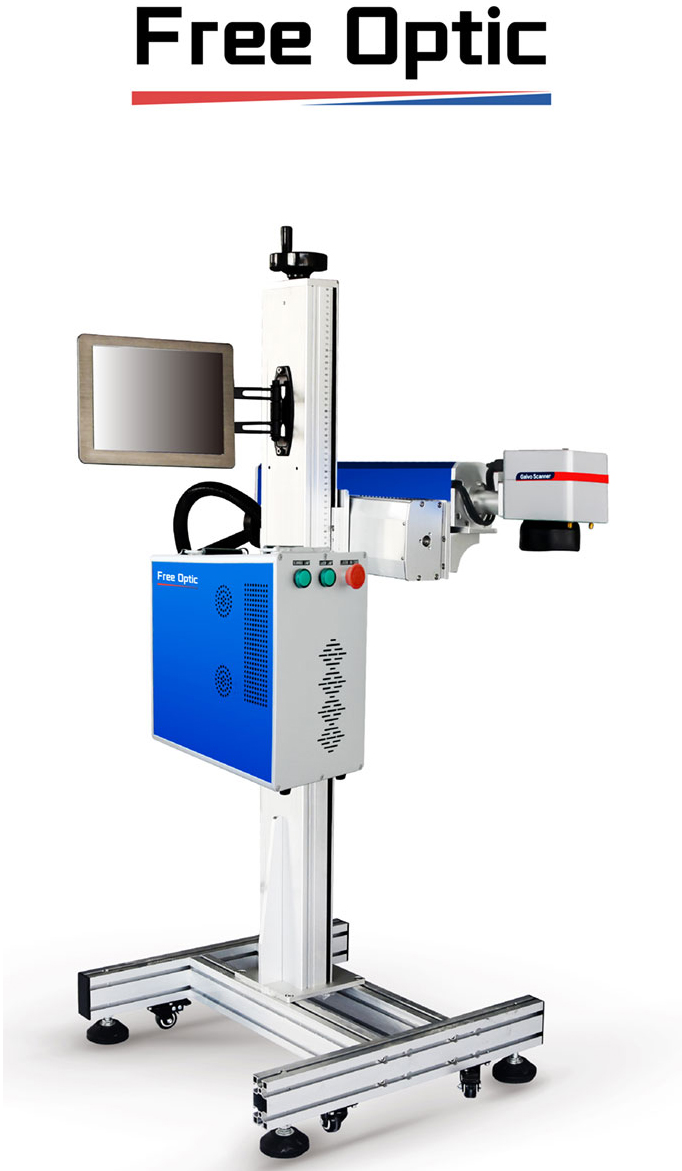

Flying Online Assembly Line Fiber Laser Marking Machine 20w 30w 50w High Speed Flying Laser Engraving Printing Machine

Short Description:

Flying/online/assembly line fiber laser marking machine

1. Laser power: 20W, 30W, 50W, 100W

2. Marking area: 110*110mm/150*150mm/175*175mm/200*200mm/300*300m

3. Laser source: Raycus/Max

Send email to us

Product Detail

Product Tags

Product Advantages

1. It is suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc.,

2. Some non-metal materials including PC, ABS, HDPE, Tires, mirrors etc.

3. There's sensor and encoder with the flying online fiber laser marking machine together.

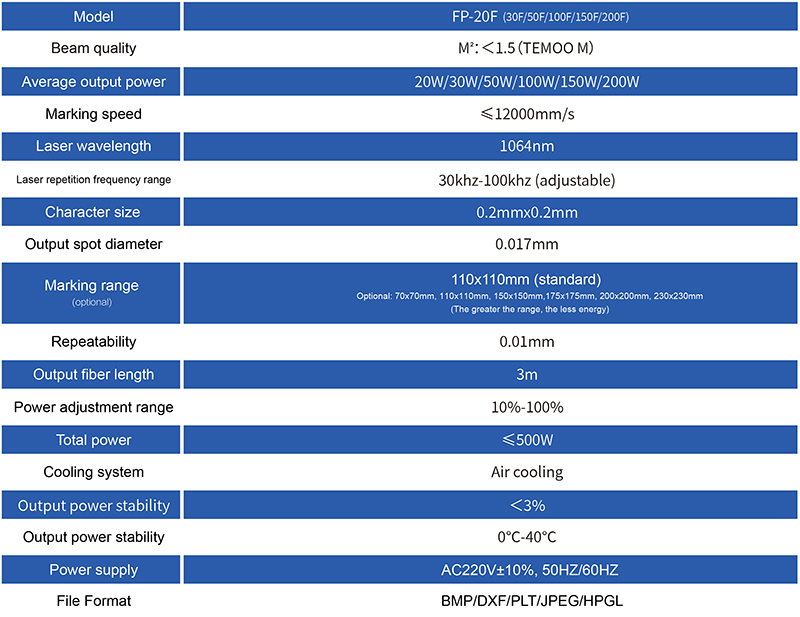

Technical Parameters

FP-20F Flying Fiber Laser Marking Machine Technical Parameters
1	Model	FP-20F
2	Beam quality	M': < 1.5 (TE MOO M)
3	Average output power	20W/30W/50W/100W/150W/200W
4	Marking speed	≥12000mm/s
5	Laser wavelength	1064nm
6	Laser repetition frequency range	30khz-100khz (adjustable)
7	Character size	0.2mmx0.2mm
8	Output spot diameter	0.017mm
9	Marking range	110x110mm (standard) Optional: 150x150mm, 175x175mm, 200x200mm, 230x230mm
10	Repeatability	0.01mm
11	Output fiber length	3M
12	Power adjustment range	10-100%
13	Total power	≤500W
14	Cooling system	Air cooling
15	Output power stability	0-4℃
16	Power supply	AC220V±10%， 50hz/60hz
17	File format	BMP/DXF/PLT/JPEG/HPGL

Laser Marking Samples

Product Characteristics

Wide Range Of Applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent Marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Marking speed is fast

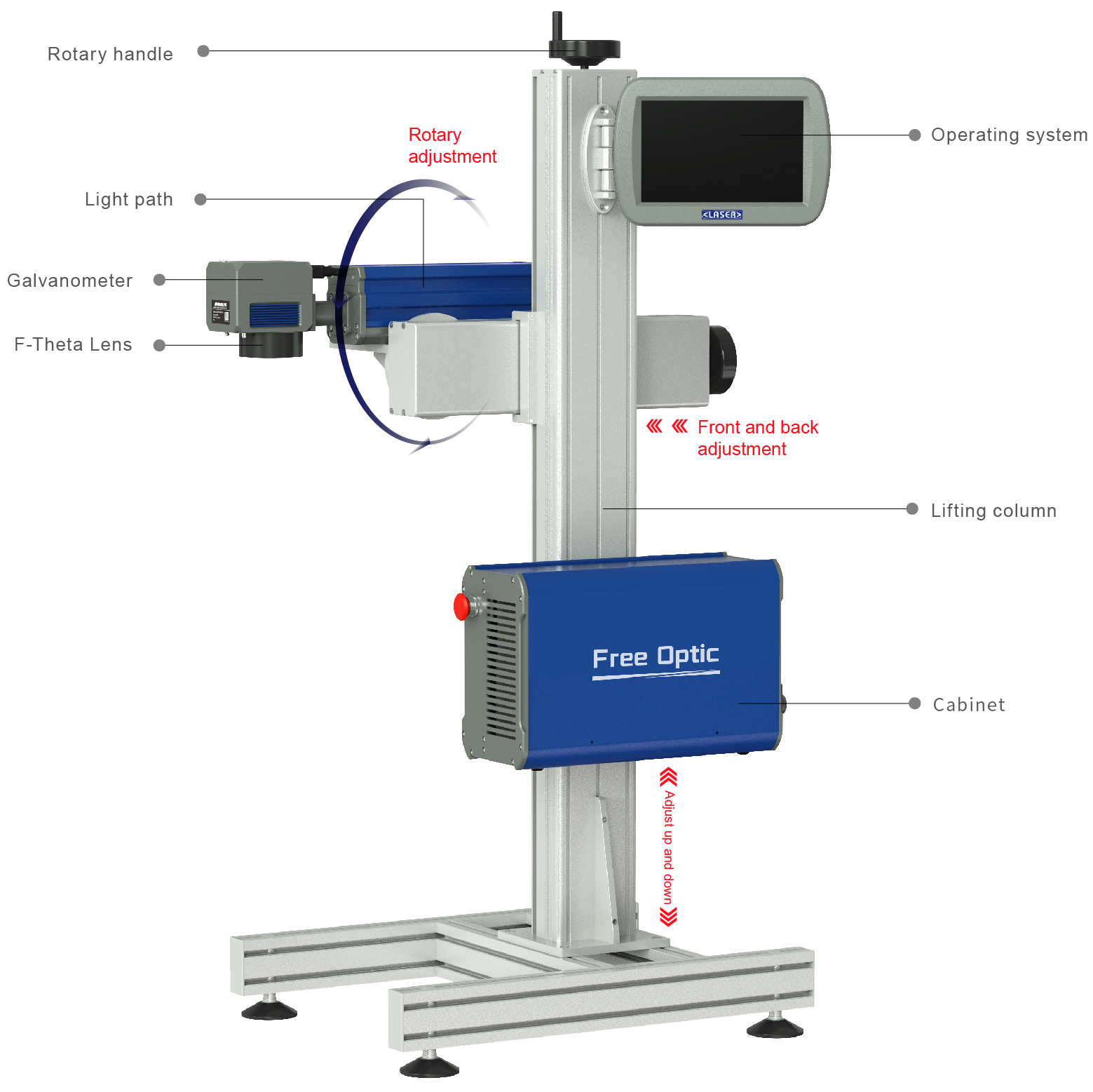

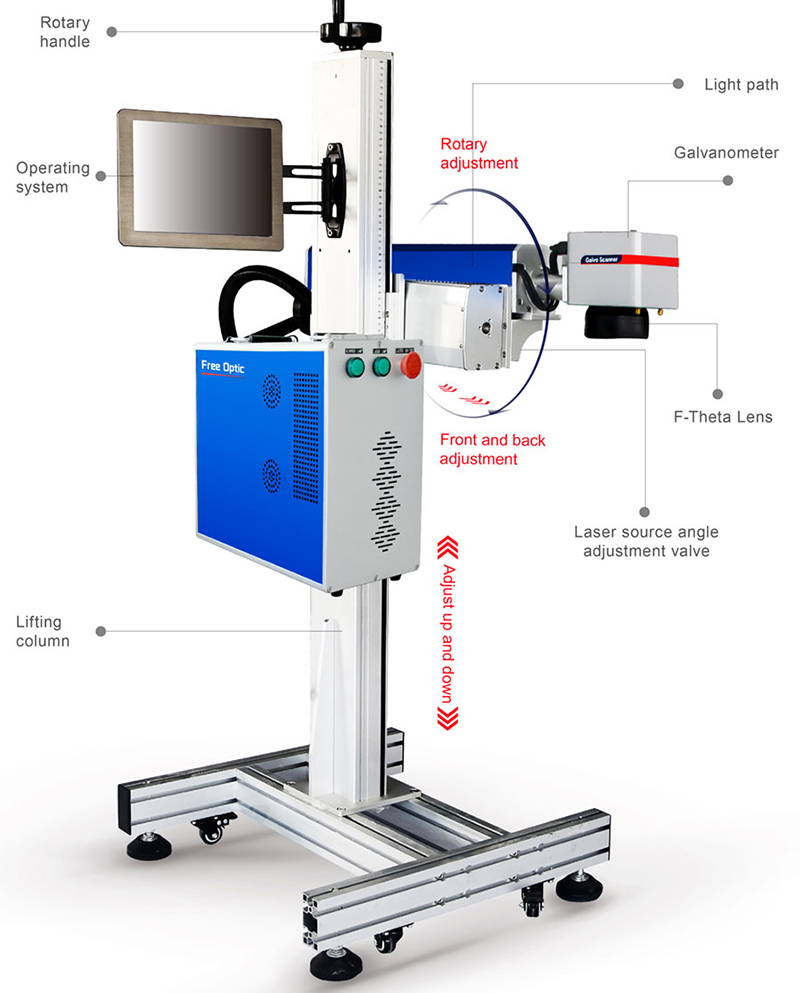

Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

Product Detail

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

No consumables required
No need for any consumables, non-toxic, no environmental pollution, high environmental protection

Red light positioning
Using red light positioning system, convenient positioning and high positioning accuracy.

Extensions

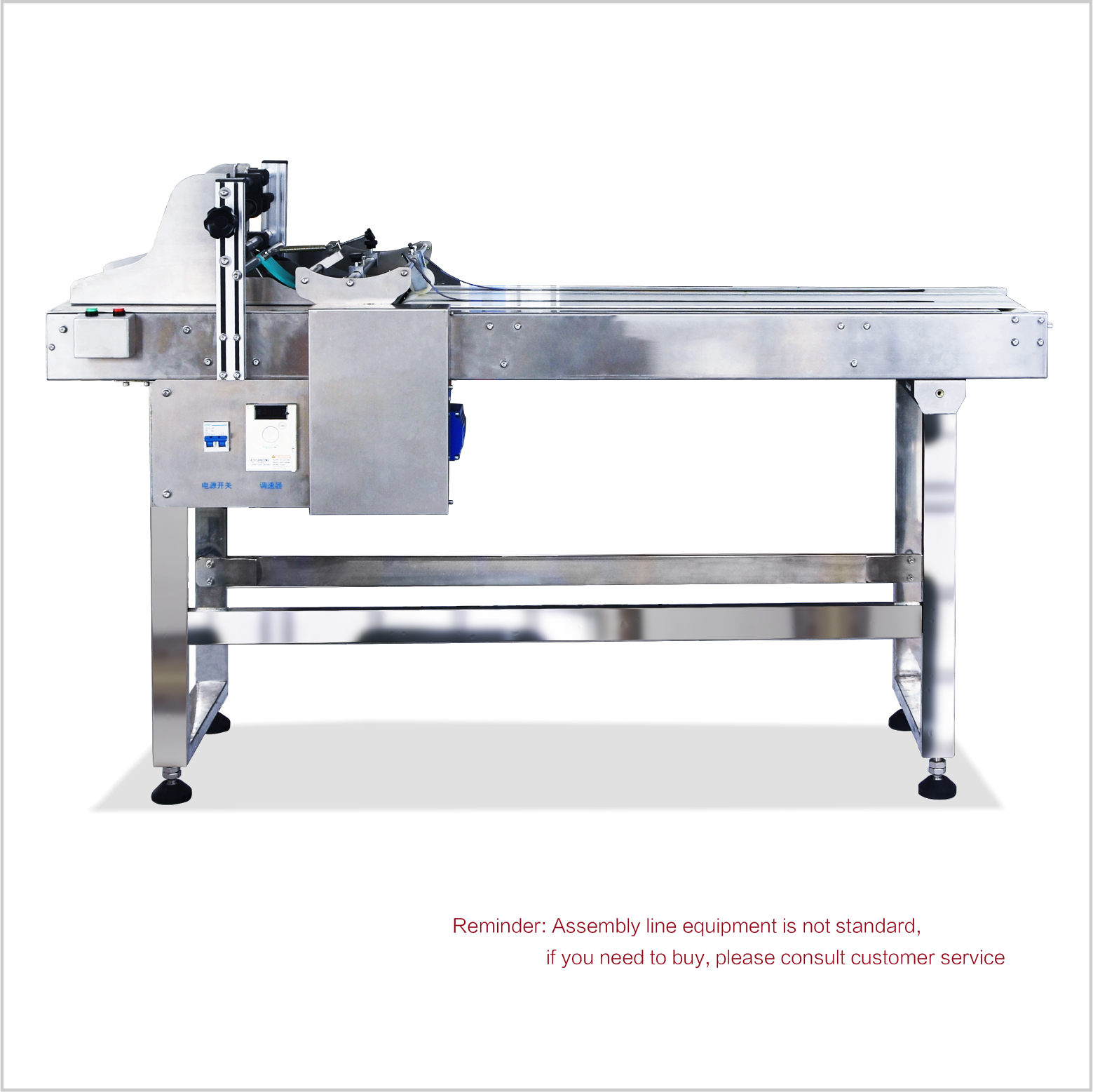

Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.

Computer program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.

1. Is the packaging safe for international long-distance transportation?
We will use the standard export wooden cases sponge filled inside for packing protection.
The machine is covered by plastic film for waterproof. Then covered by foam to protect the machine from shaking. And the outside, we adopt the standard export wooden cases.
Regardless of international express, air or sea transportation, we will try our best to protect the machine from damage during transportation.

2. What should I do if there is a problem with the machine during use?
Cooperate with Free Optic, please don't worry about after-sales problems. Once there is any problem with the machine, please contact us at the first time, we have a professional technical team to solve it for you at the first time.
