Integrated All-in-one Portable Small Size Fiber Laser Marking Machine 20W, 30W, 50W

Short Description:

Integrated All-in-one Portable Small Size Fiber Laser Marking Machine

1. Laser power: 20W, 30W, 50W

2. Marking area: 110*110mm/150*150mm

3. Laser source brand:Max

4. Optional tools: Rotary device, fixture, nameplates device and etc.


Product Detail

Product Tags

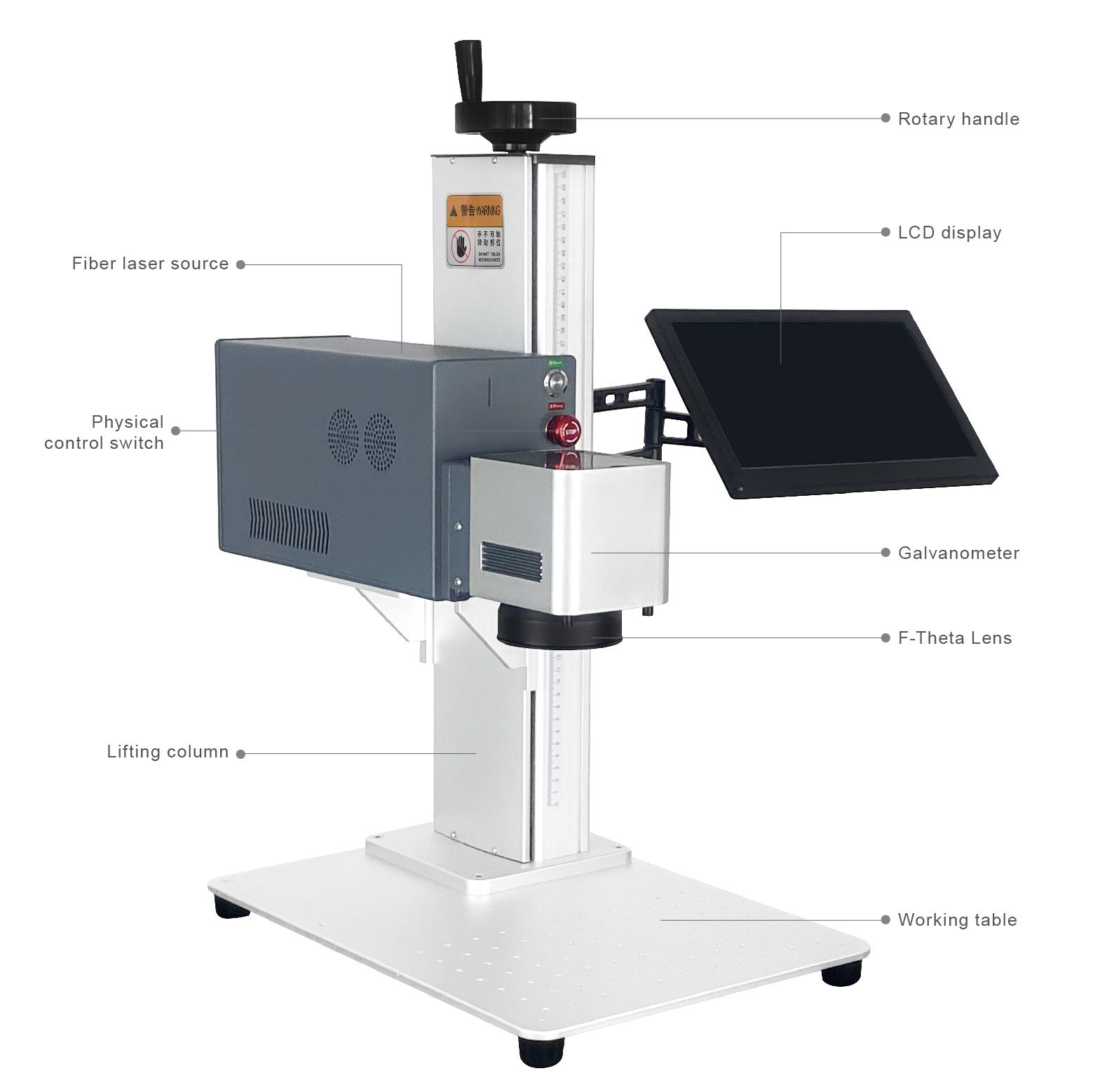

Product Features

光纤一体机1

1. Integrated design, the machine is compact, portable and light weight, saving space and easy to carry.

2. lt is suitable to metal, such as steel, stainless, copper, aluminum, gold, silver, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.

3. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

光纤一体机2

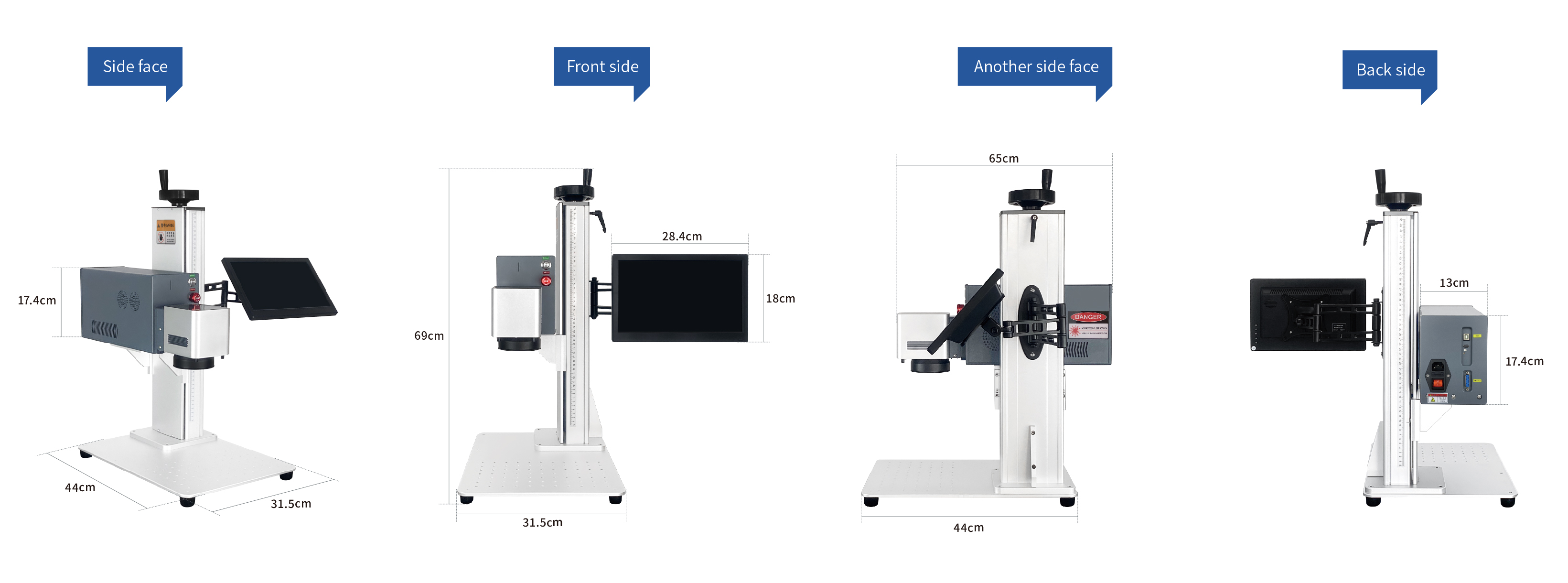

Machine Main Configuration

集成式_画板 1 副本 8

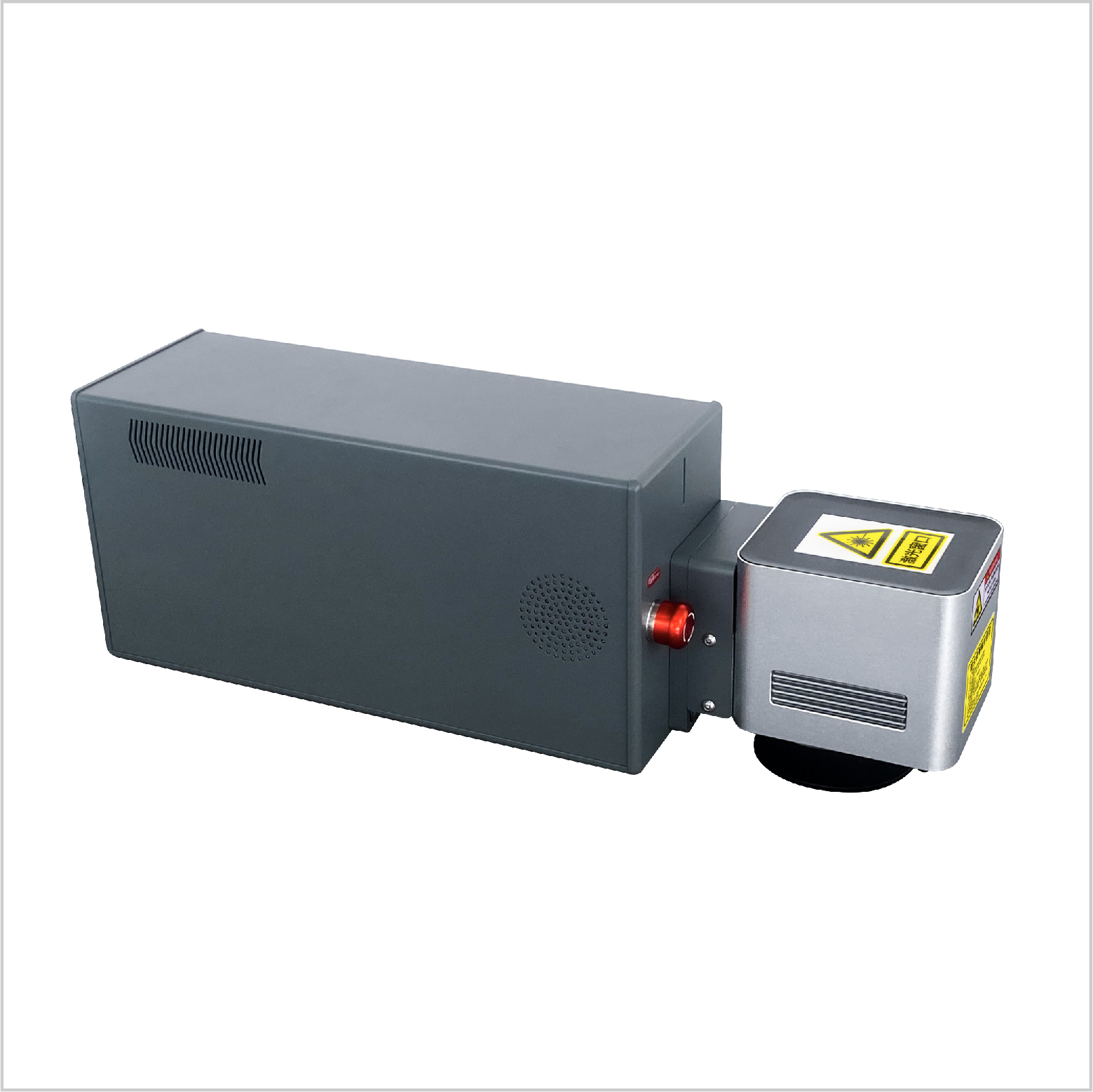

Integrated design, the machine is compact, portable and light weight, saving space and easy to carry.

The operation is flexible and simple

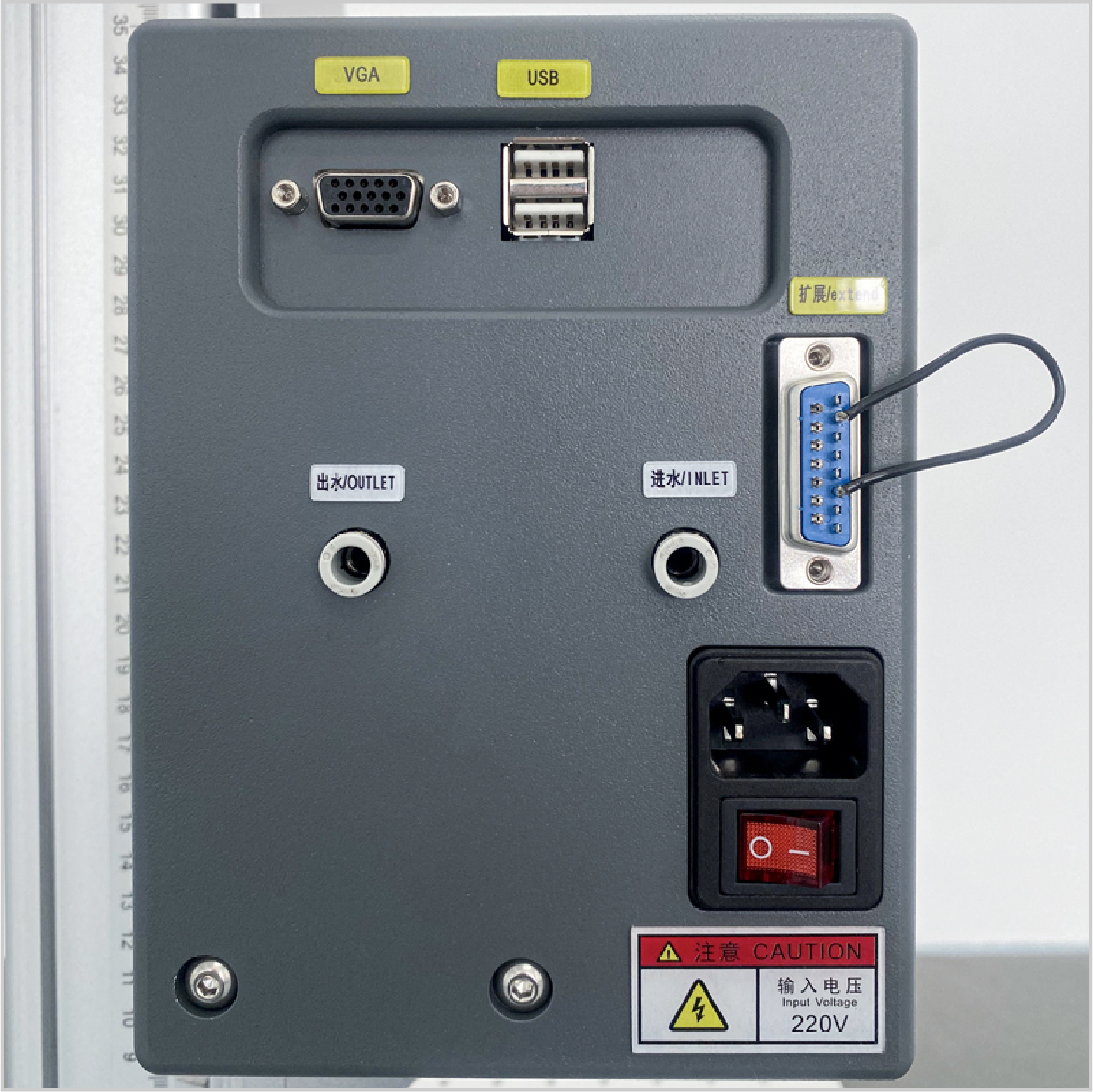

The machine can be used after simple connection

集成式_画板 1 副本 11
光纤一体机3

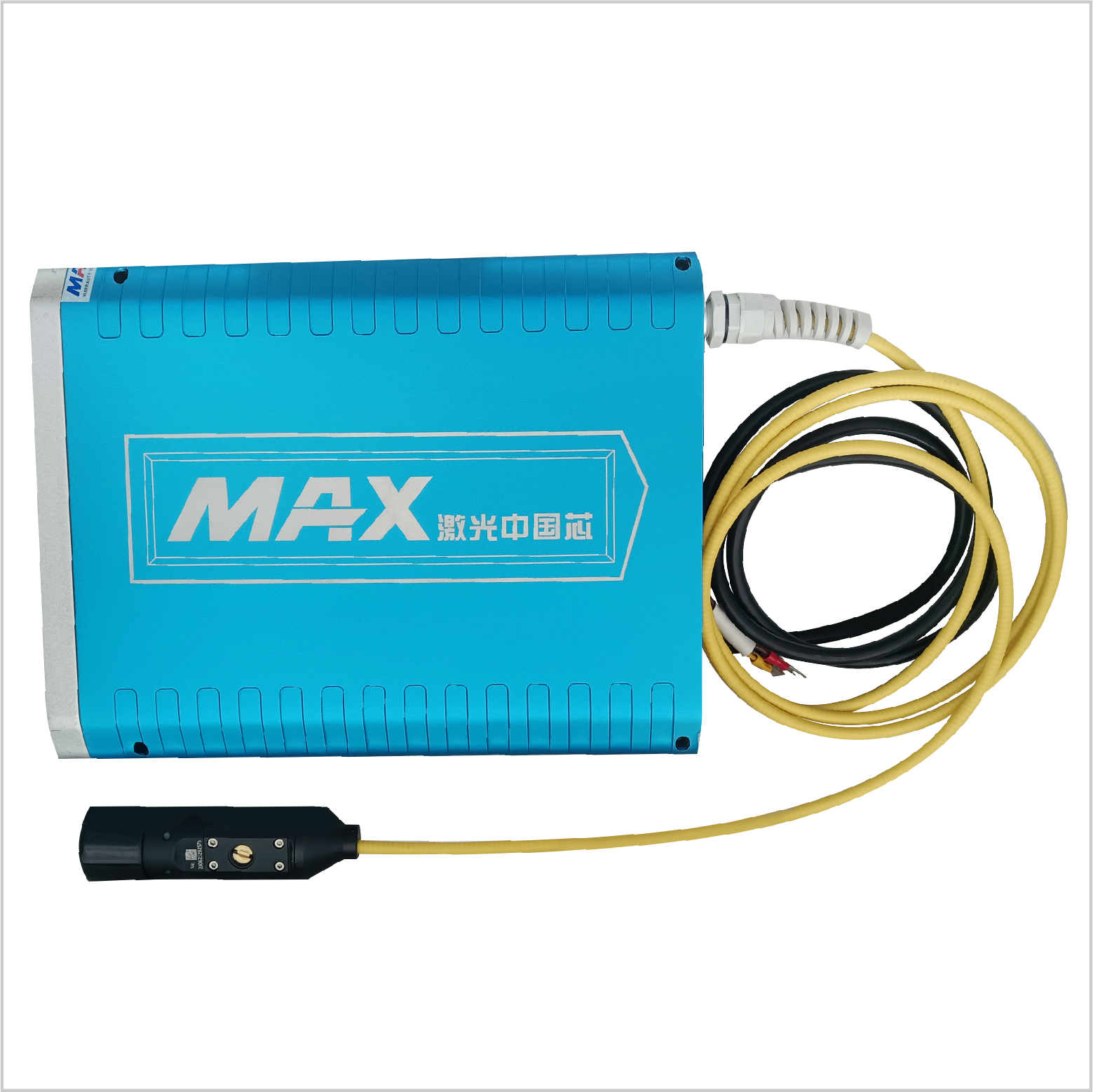

Max laser source
Customized Max laser, stable quality, service life exceeds 100,000 hours

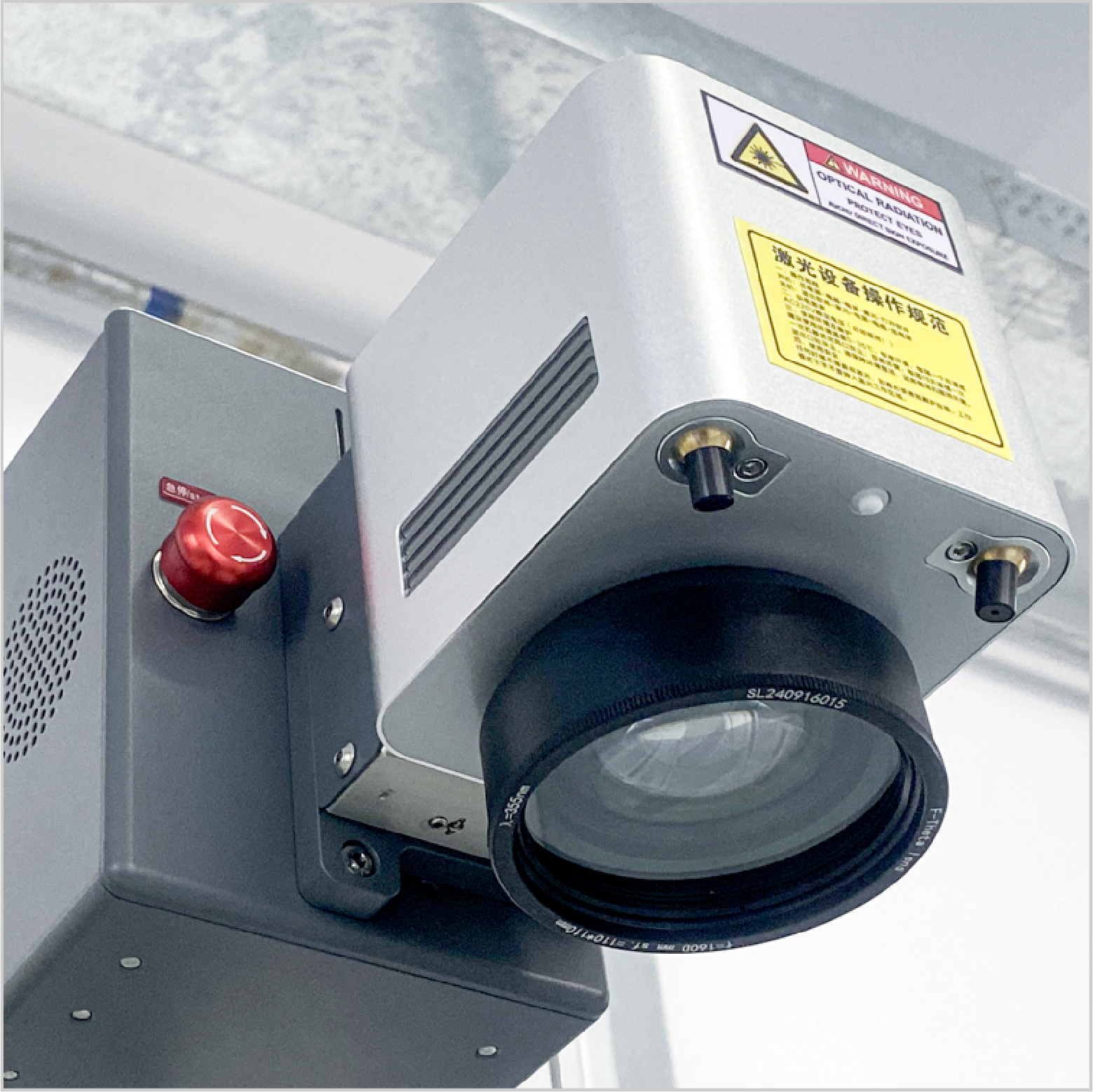

Free Optic Customized High Speed Digital Galvanometer
External dual red light helps to quickly find the focus position

集成式_画板 1 副本 9
标准台式2023_画板 1 副本 7

Free Optic Customized High Transparency F-theta Lens

Lens 110x110mm, 150x150mm

Basiliang Control Board or BJ JCZ Genuine Control Board

标准台式（白色机柜） 电动升降2.0_画板 1 副本 10
集成式_画板 1 副本 6

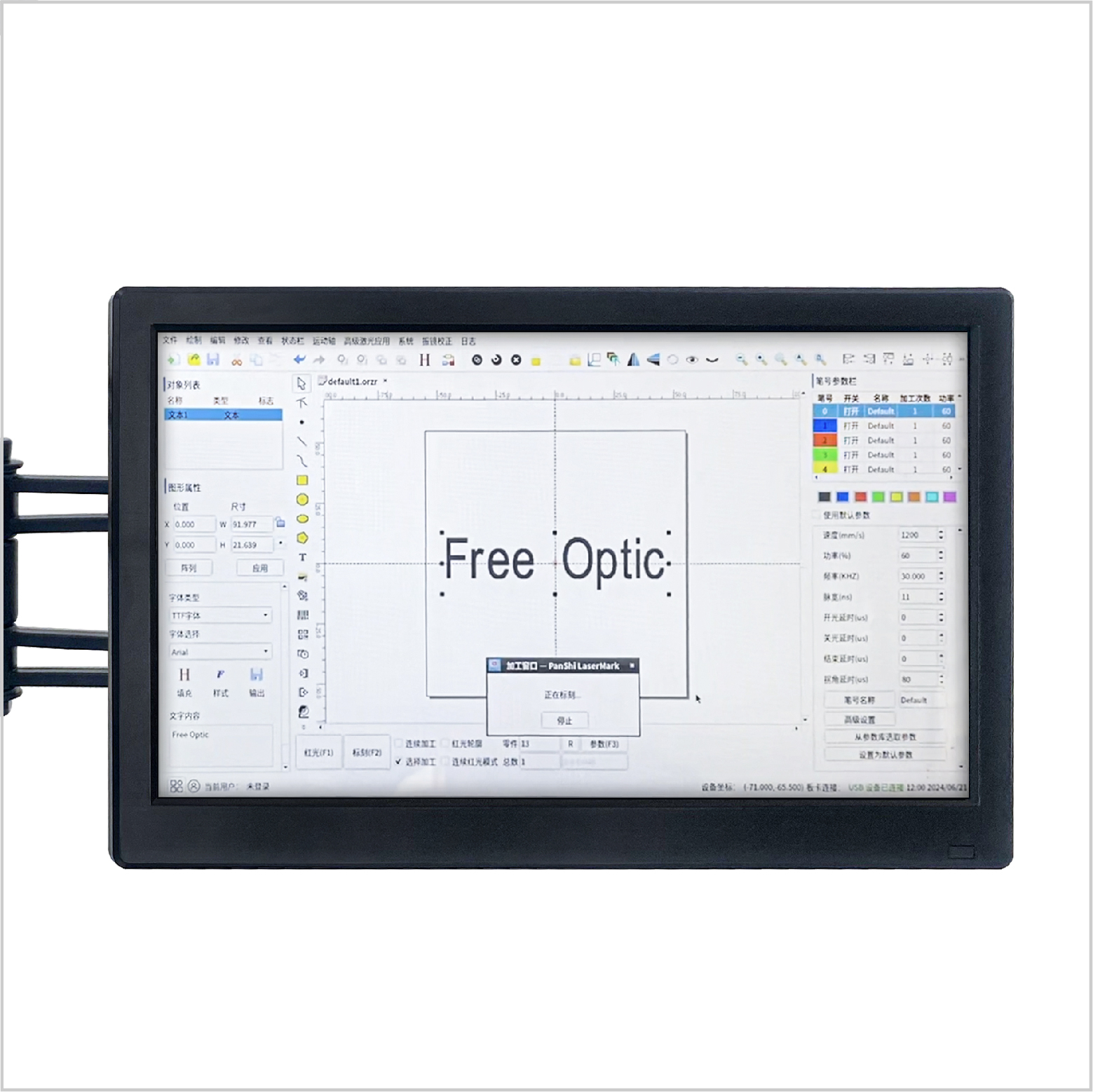

Basiliang/EZCAD Professional Marking Machine Software

Supports English, Turkish, Spanish, Russian, Vietnamese, German, Italian, Korean, Japanese and other languages

Supports QR code, barcode, serial number, simple graphics

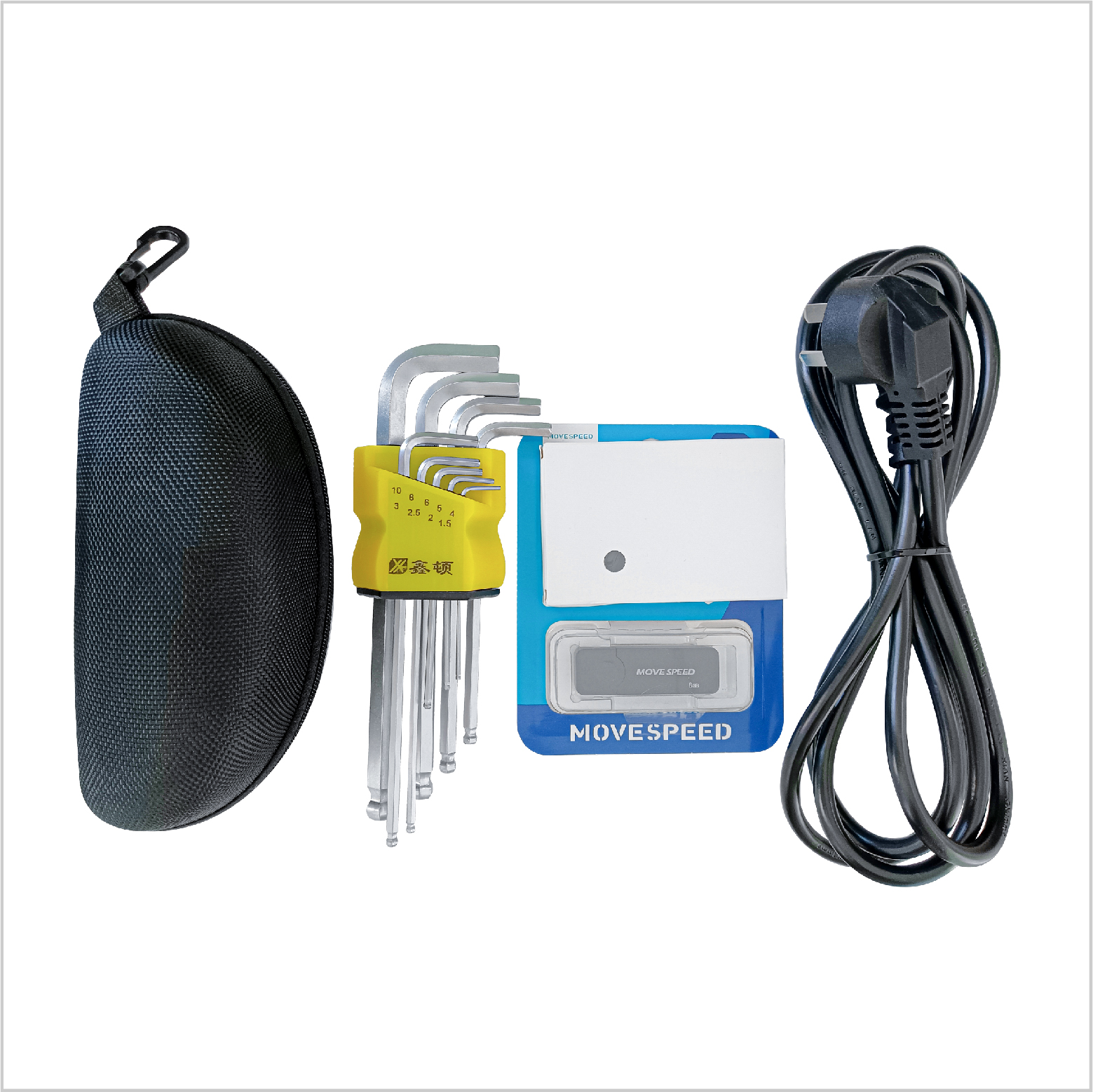

Complete accessories

Just plug in the power and turn on the machine to let it work for you

集成式_画板 1 副本 10

Configuration Options

手持台式2023_画板 1 副本 5

Technical Parameters

FP-20Z Fiber Laser Marking Machine Technical Parameters
1 Model FP-20Z ( FP-30Z, FP-50Z)
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 20W, 30W, 50W
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard) 150x150mm optional
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V/110V±10%， 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

Laser Marking Samples

标准台式2023_画板 1 副本
