Fast Delivery Laser Engraving Marker 20W 30W Mini Portable Desktop Metal Fiber Laser Marking Machine for Ring Jewelry

Short Description:

1. Portable mini fiber laser marking machine
2. 20W, 30W power available
3. Suitable for small workpiece marking, such as animal ear tags, key chains, lipsticks, nameplates marking, small handicraft customization, small parts marking
4. Small size and light weight

Send email to us

Product Detail

Product Tags

Product Advantages

1. It is also a model of fiber laser marking machine, which is more popular among individual merchants.
2. It is suitable for engraving relatively small workpieces. The marking range is 100x100, 150x150mm.
3. Two power options are available, 20W and 30W.
4. When you choose, it is best to confirm your engraving needs with our people and let us give you some professional advice.

Technical Parameters

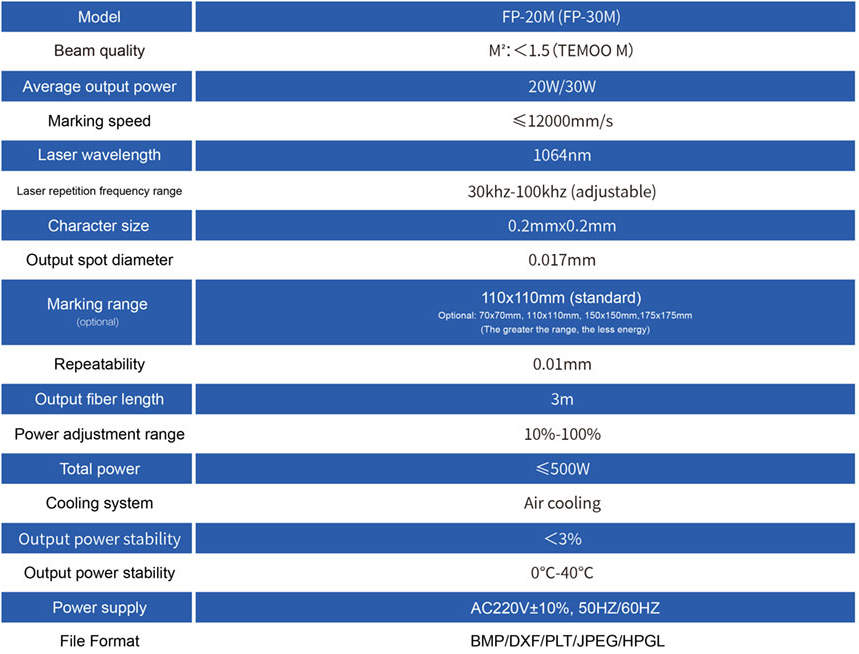

FP-20M Fiber Laser Marking Machine Technical Parameters
1	Model	FP-20M
2	Beam quality	M': < 1.5 (TE MOO M)
3	Average output power	20W/30W
4	Marking speed	≥12000mm/s
5	Laser wavelength	1064nm
6	Laser repetition frequency range	30khz-100khz (adjustable)
7	Character size	0.2mmx0.2mm
8	Output spot diameter	0.017mm
9	Marking range	110x110mm (standard) Optional: 150x150mm
10	Repeatability	0.01mm
11	Output fiber length	3M
12	Power adjustment range	10-100%
13	Total power	≤500W
14	Cooling system	Air cooling
15	Output power stability	0-4℃
16	Power supply	AC220V±10%， 50hz/60hz
17	File format	BMP/DXF/PLT/JPEG/HPGL

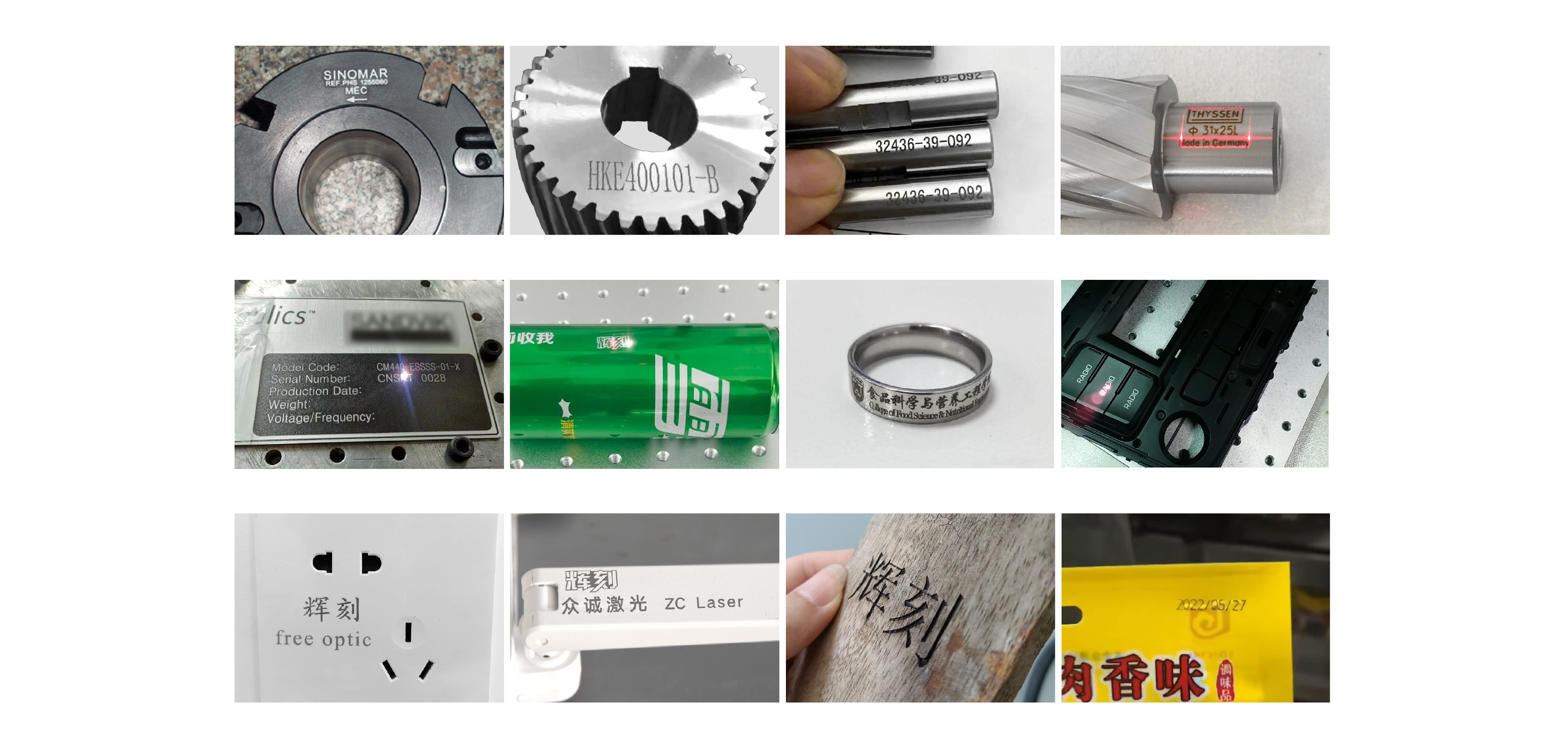

Laser Marking Samples

Product Characteristics

Wide Range Of Applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent Marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Marking speed is fast

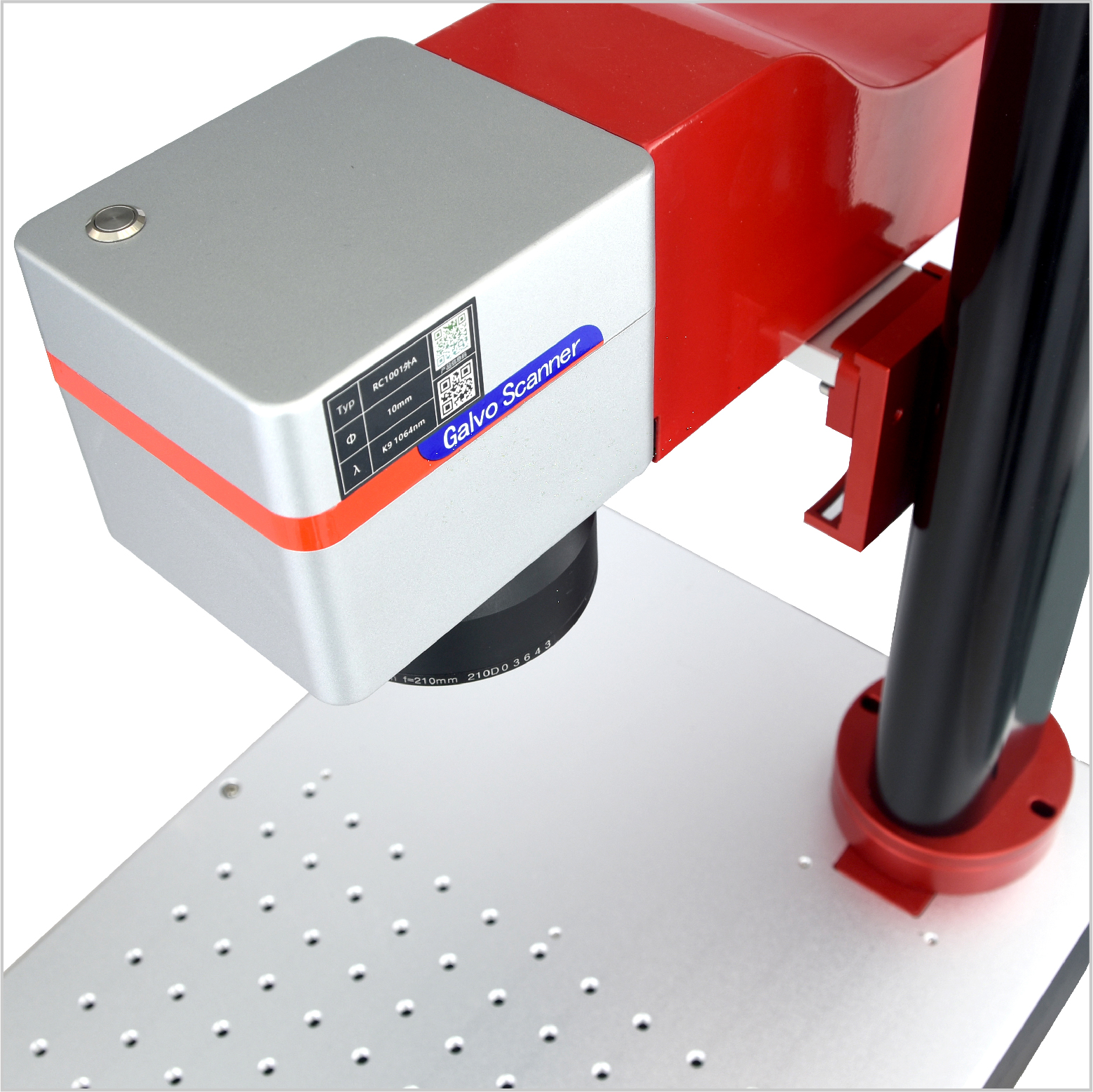

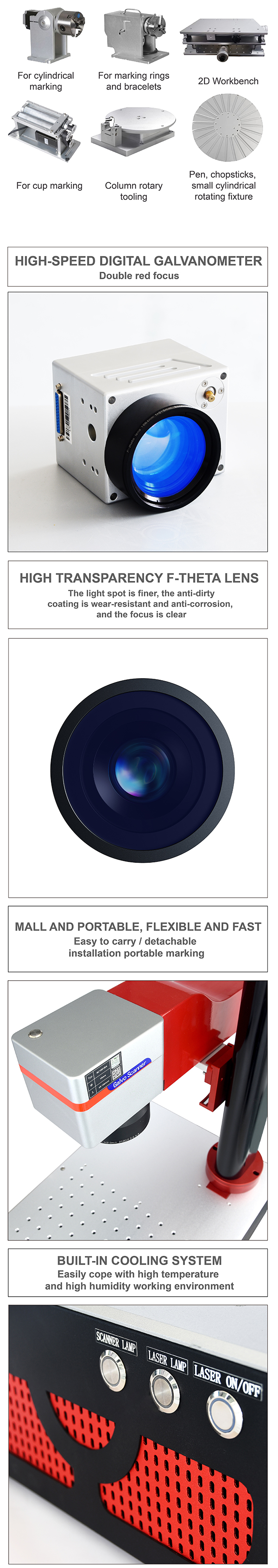

Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

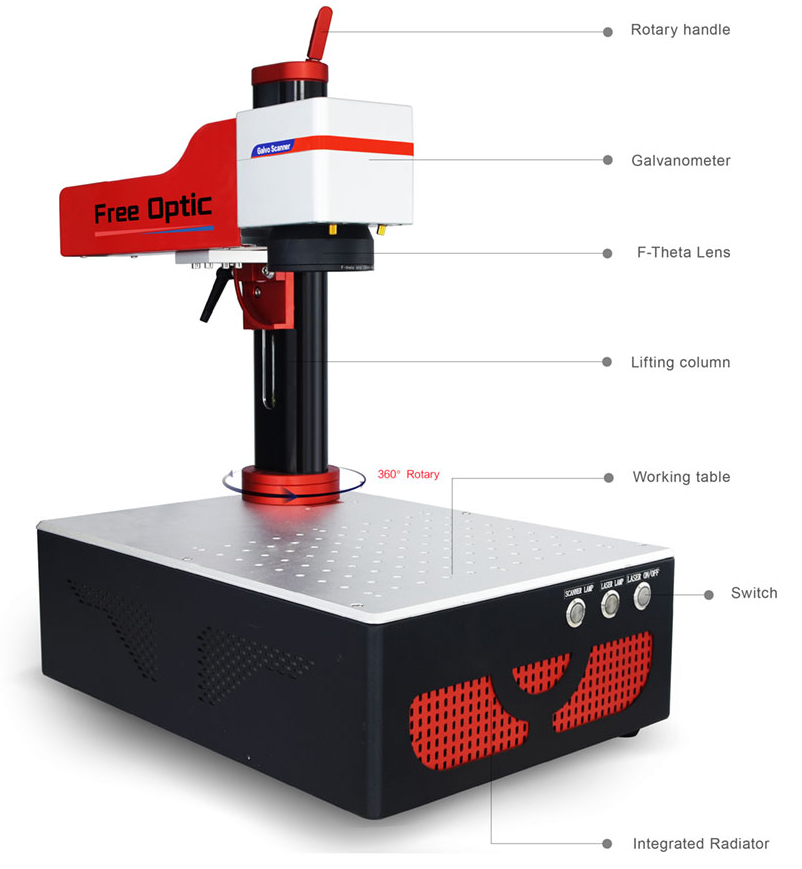

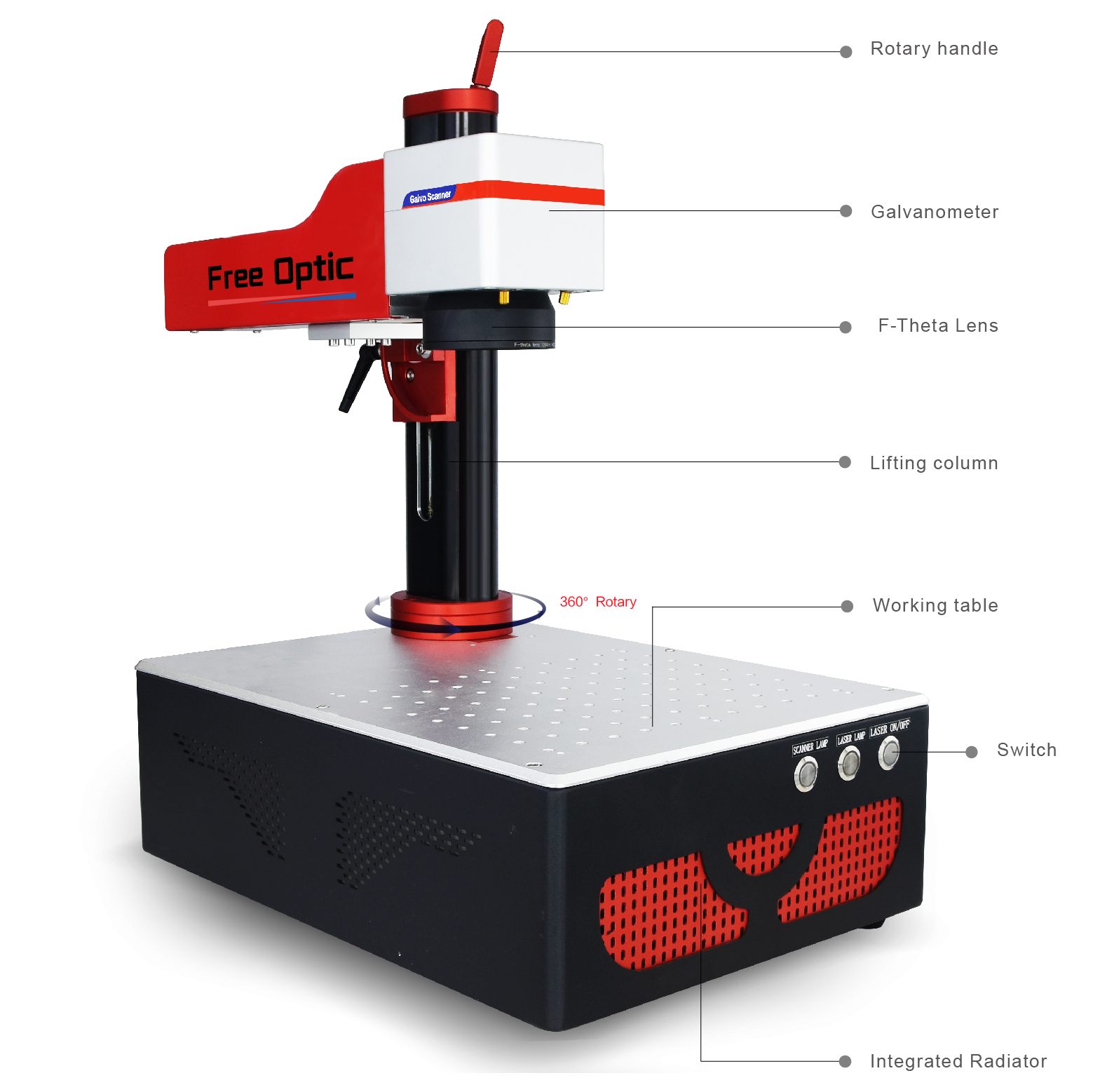

Product Detail

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Low environmental requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.

Extensions
Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.

Computer program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.

1. What should I do if there is a problem with the machine during use?
Cooperate with Free Optic, please don't worry about after-sales problems. Once there is any problem with the machine, please contact us at the first time, we have a professional technical team to solve it for you at the first time.

2. What forms of payment are acceptable?
We can accept the payment terms like T/T, L/C, Western Union, Papal, Cash, Credit Card etc. We will do our best to facilitate customers to cooperate with us
