Factory Directly Supply 100w 130w Home Laser Cutting Single Head Double Head 1390/9060 Laser Engraving Machine Price

Short Description:

Acrylic, plexiglass, wood board, density board, sandwich board, paper cardboard, leather, cloth, felt, velvet products, plastic board, film products, leaves and other materials for cutting and marking applications.

Typically used in advertising products, craft production, model craft, cloth art, leather product industry, clothing design blanking, craft gifts, wooden toys, exhibition display, decoration and other industries.

Send email to us

Product Detail

Product Tags

Application

FP1390 9060 CO2 laser engraving cutting machine mainly used in

1. Advertising industry: cutting and marking of acrylic, wooden boards, and paper products.

2. Gift industry: custom-made and batch-processed plate cutting and hollowing out, wooden handicrafts, decoration mosaic cutting.

3. Model decoration: model making, decoration, marking, cutting and marking of product packaging, etc.

4. Carton printing industry: used for engraving rubber boards, double-layer boards, plastic boards, cutting lines, knife template cutting, etc.

5. Industrial application: cutting and blanking of non-metallic plates in the industrial field, such as rubber sealing ring cutting, etc.

Technical Parameters

FP1390 CO2 Laser Cutting Machine Technical Parameters

1	Model	FP1390
2	Laser type	Co2 Glass Inner Cavity Sealed Laser
3	Laser power	Standard 150W (100W, 180W optional)
4	Max. processing range at one time	1300900mm/ 900 600mm
5	Feed Width	1400mm/ 1000mm
6	Weight	400kg
7	Engraving Speed	0-60000mm/min
8	Cutting Speed	0-30000mm/min
9	Cooling system	Water cooling
10	Laser Power Control	Software control/manual adjustment two optional modes

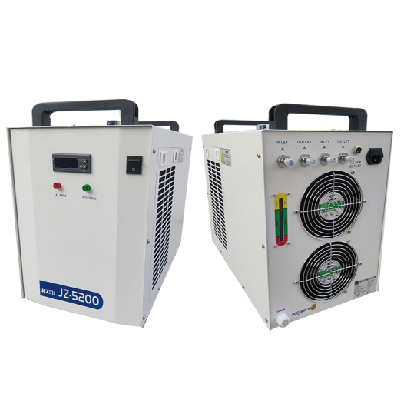

11	Laser tube cooling	Forced water cooling (optional industrial chiller)
12	Mechanical resolution	0.0125mm
13	Mini Formed Text	Chinese characters 2mm, English 1mm
14	The thickest cutting depth	20mm (acrylic as an example)
15	Repeatability	±0.1mm
16	power supply	AC220V±15% 50Hz
17	Total power	≤1500W
18	Support software format	BMP PLT DST AI DXF DWG
19	Drive	Digital subdivision stepping drive
20	Working temperature	0℃～45℃
21	Working environment humidity	5%～95%
22	Engraved countertops	Push-pull working platform honeycomb or blade two options (lifting platform)
23	Max. Scanning Accuracy	2500DPL
24	Software language	Simplified Chinese, Traditional Chinese, English
25	Control method	CNC automatic
26	Cutting speed	≥800mm/min
27	Positioning accuracy	≤0.05mm
28	Fast forward speed	≥1500mm/min
29	Application	Cutting, engraving, punching, hollowing out, etc.
30	Applicable material	Acrylic, stone, wool, cloth, paper, wood, bamboo, plastic, glass, film, ceramics and other non-metallic materials
31	Machine size	183013601120MM

Configuration Options

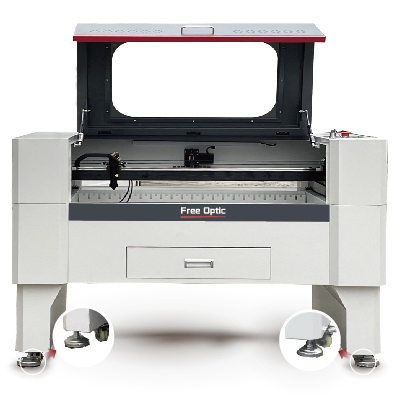

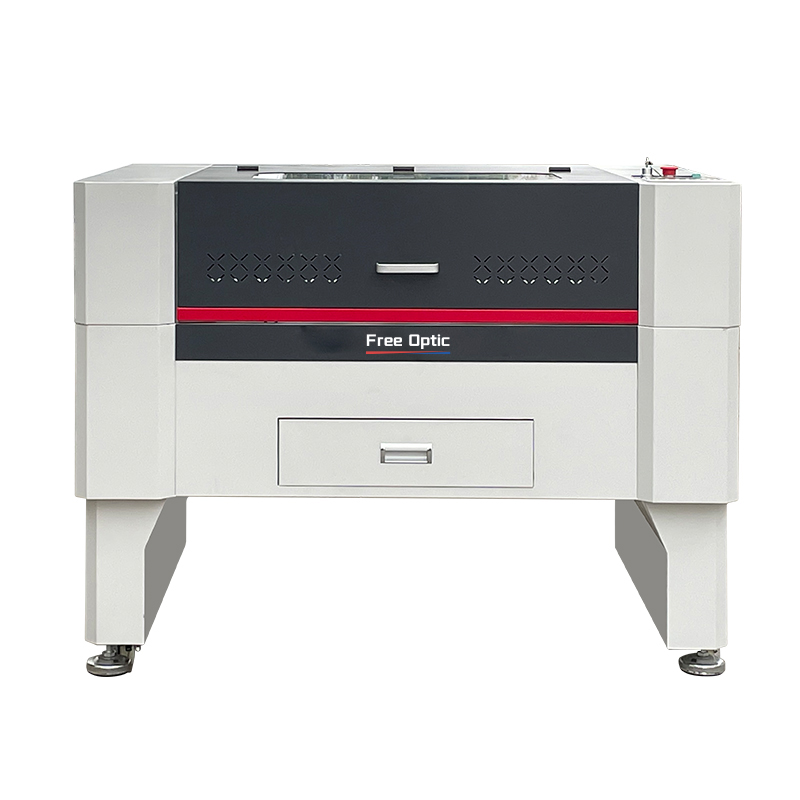

Main Feature:

Inheriting the ten-year classic of the T series, it incorporates the design elements of the new V series.

The blade honeycomb dual-platform modular scheme, the external dimensions are reasonably compressed,

And the detachable leg design (the left and right legs under the machine are detachable) saves space and is convenient for entering and exiting customer stores.

The product is economical and durable, with a simple and elegant appearance.

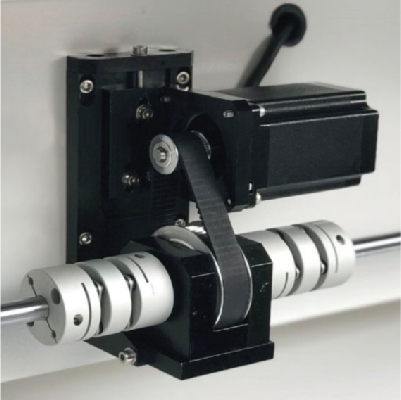

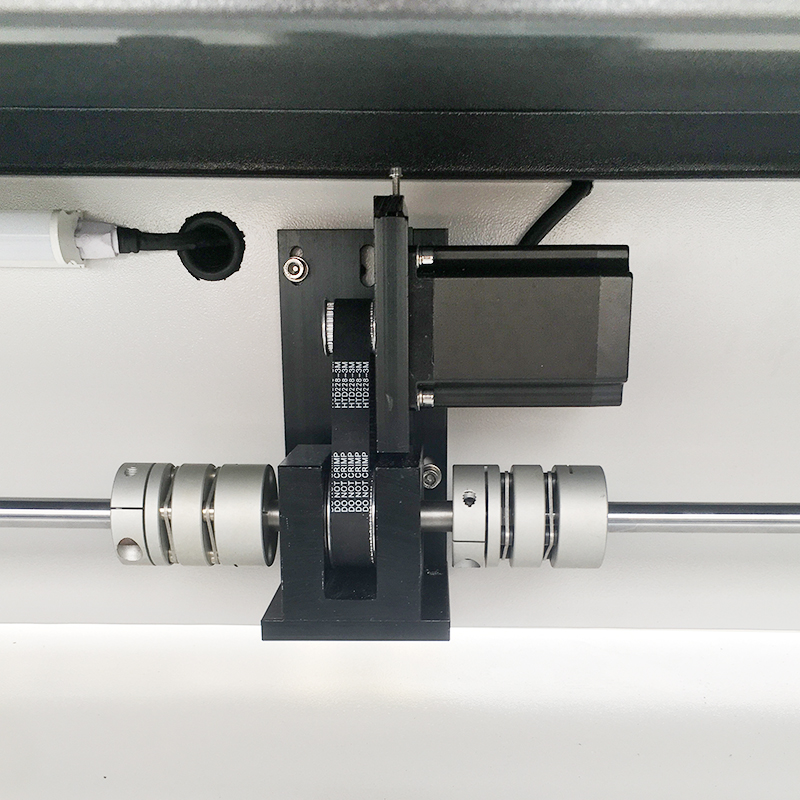

Transmission Unit:

Y-axis intermediate drive, imported diaphragm coupling to better ensure transmission accuracy

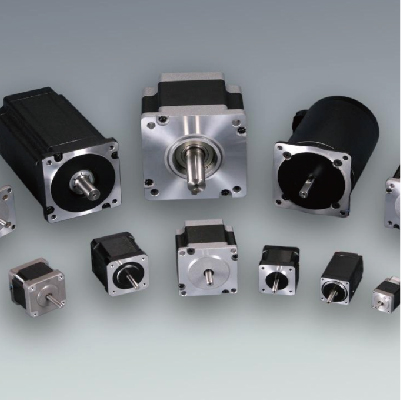

Three-phase Stepper Motor:

It adopts all-digital three-phase stepper motor driver and supporting motor, which greatly surpasses the industry's wide range in terms of power and torque balance.

A two-phase stepper system is used.

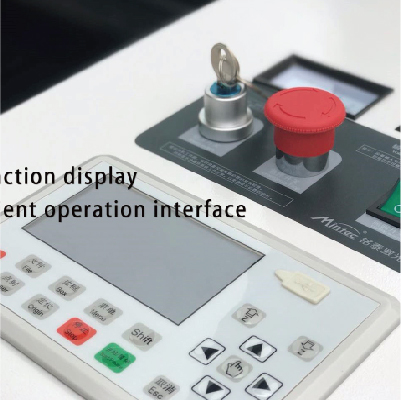

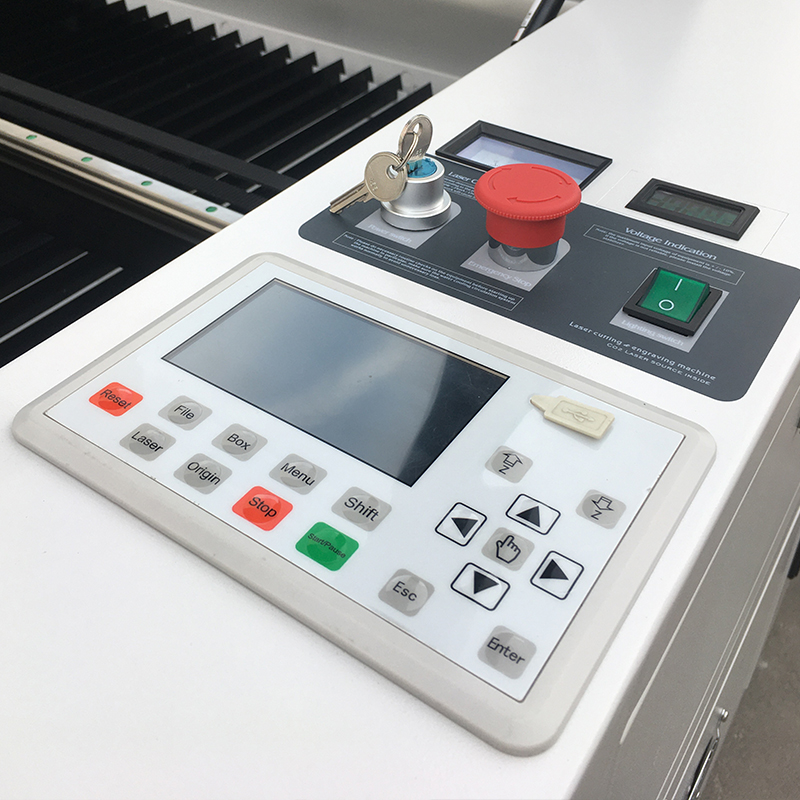

Trocen Touch Screen Control System:

Support USB transmission, U disk data import, support power off and continue engraving function.

Adopt USB3.0 chip, support all brands of U disk, support standard RJ45 network cable to transmit data.

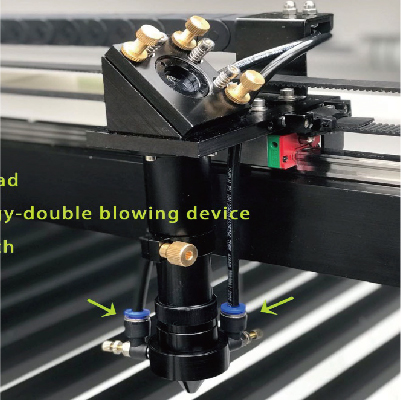

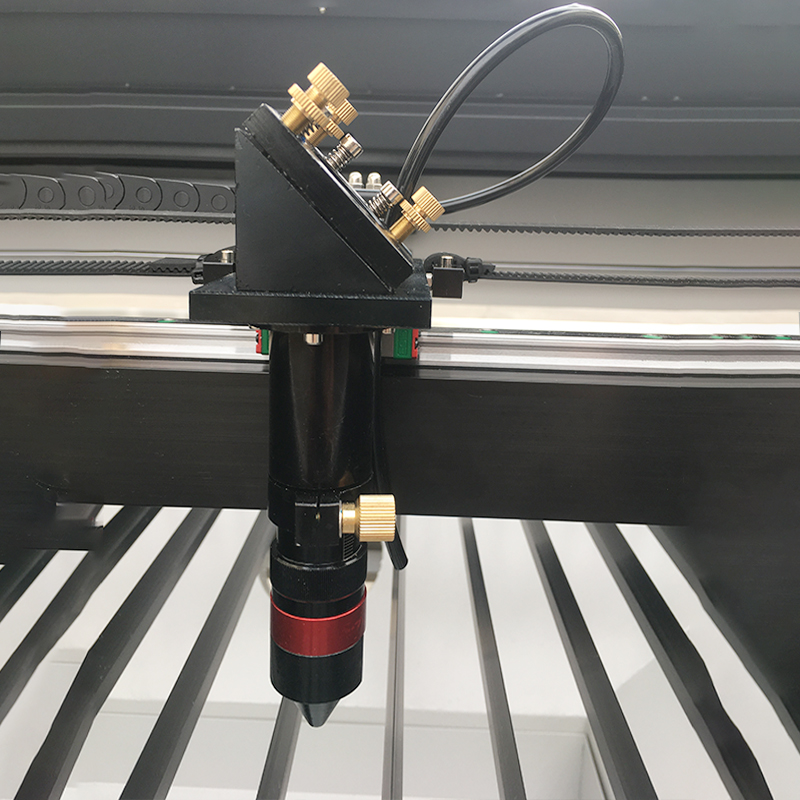

Double Blowing Anti-fire Function (patent) (upgrade laser head: double blowing, adjustable focus)

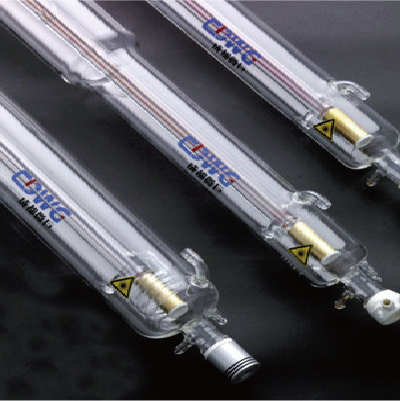

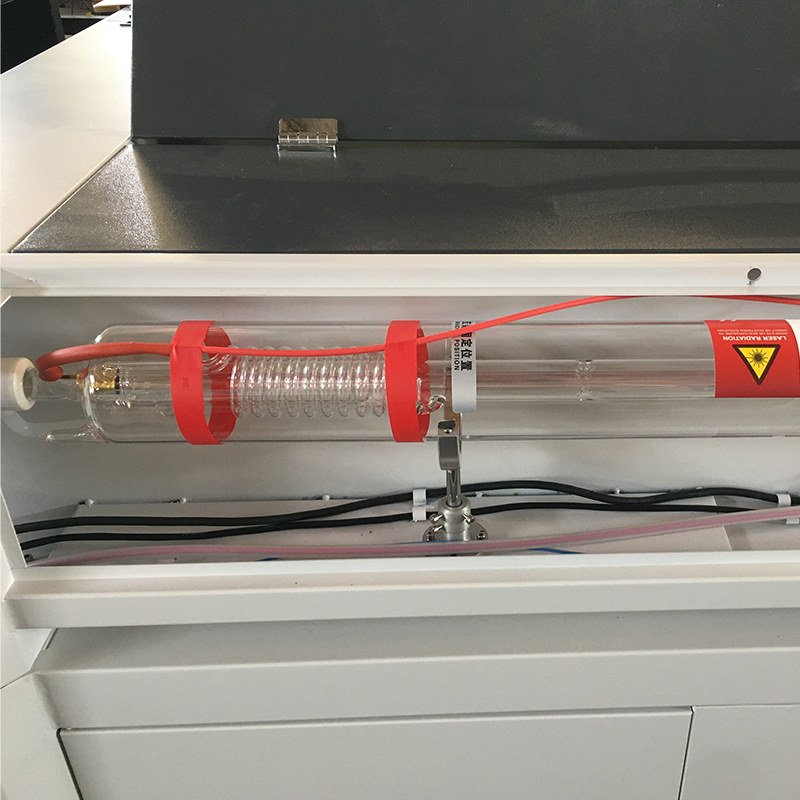

High Performance and Long Life Co2 Laser Tube：

Using patented cavity catalysis technology and laser head adjustment cavity technology, the laser response is faster, the energy conversion rate is high, and the service life is long.

The light spot has a long and slender life, high stability, low maintenance cost, and a 10-month warranty.

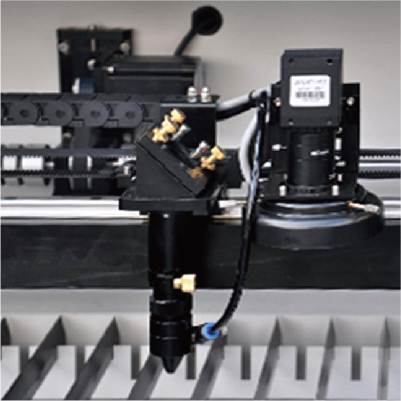

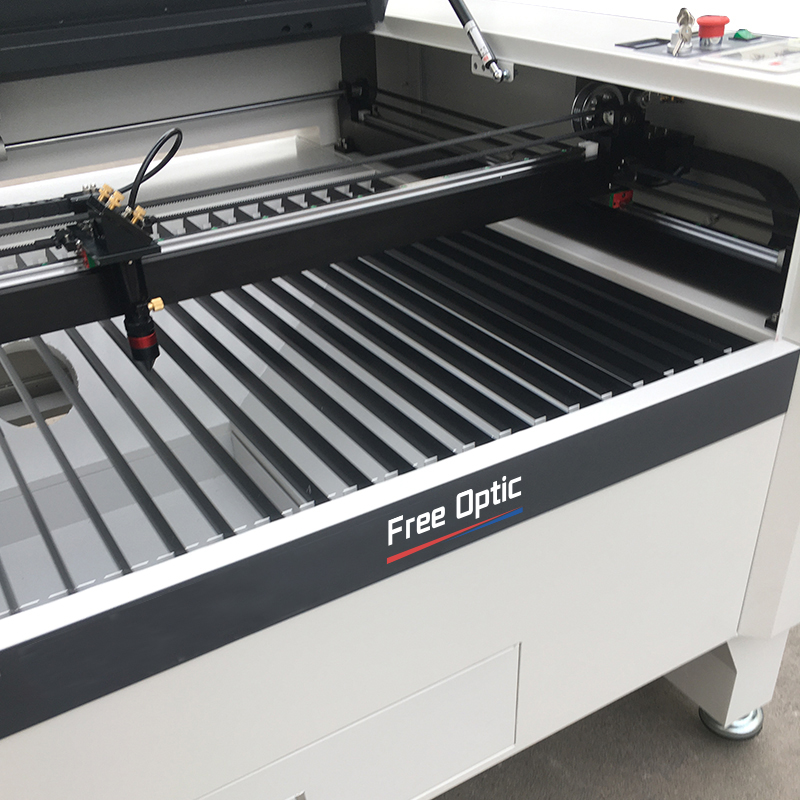

CCD Positioning Edge Patrol Cutting Function (optional), Blade Honeycomb Dual-platform Modular Scheme

Feature image location, MARK point image location, contour recognition and cutting

Ethernet data transmission with data security check ensures data accuracy while communicating at high speed
