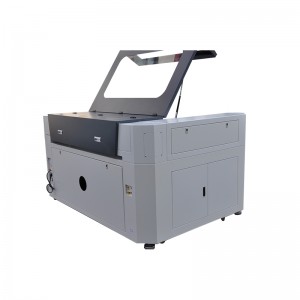

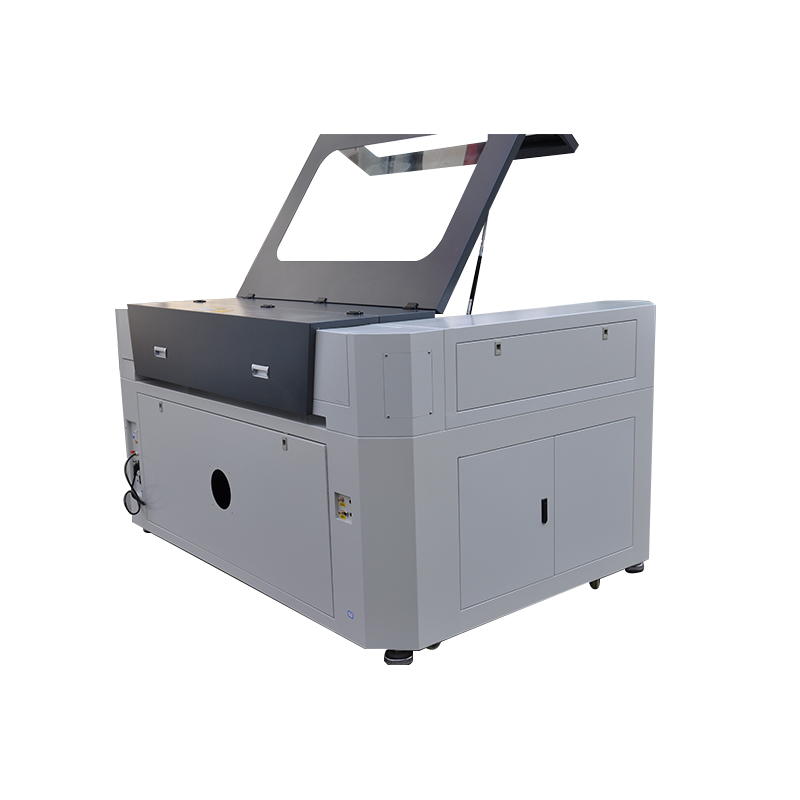

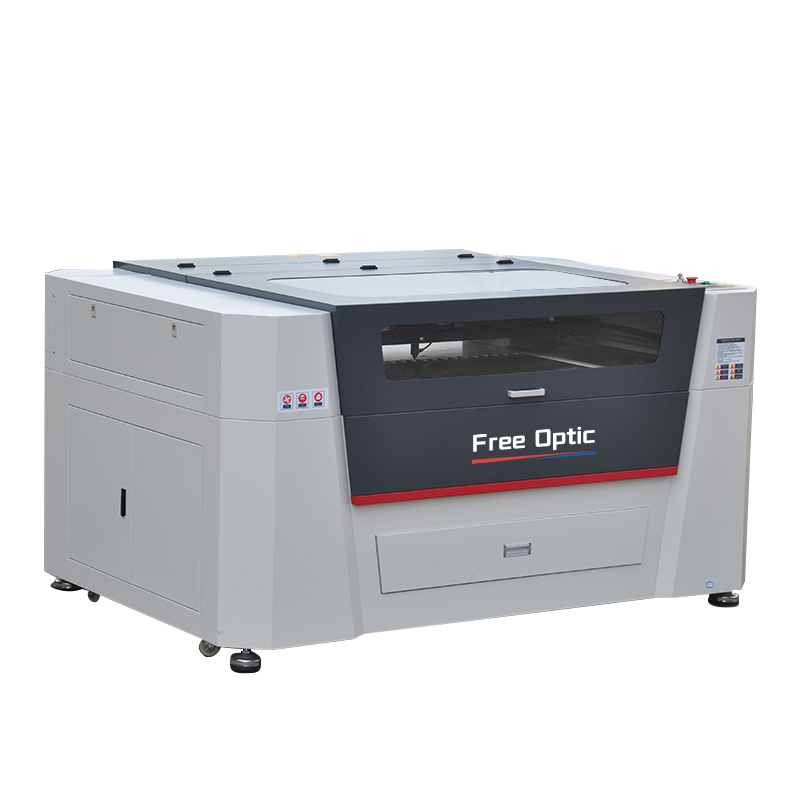

Factory Direct Sales CNC 9060 1412 1490 Single Head/Double Head Co2 Laser Engraving Machine

Short Description:

Acrylic, plexiglass, wood board, density board, sandwich board, paper cardboard, leather, cloth, felt, velvet products, plastic board, film products, leaves and other materials for cutting and marking applications.

Typically used in advertising products, craft production, model craft, cloth art, leather product industry, clothing design blanking, craft gifts, wooden toys, exhibition display, decoration and other industries.

Send email to us

Product Detail

Product Tags

Machine Introduction

The new concept of V-series transmission components, rail guide system, shaft motion components, mechanical supporting components more scientific and reasonable, cutting balance performance is more perfect.

Stability, accuracy, speed three indicators can reflect the world's high-end equipment level.

Its high speed and balanced cutting performance, humanized design concept, perfect use function is the first choice of middle and high-end customers.

Application

FP9060 1412 1490 CO2 laser engraving cutting machine mainly used in

1. Advertising industry: cutting and marking of acrylic, wooden boards, and paper products.

2. Gift industry: custom-made and batch-processed plate cutting and hollowing out, wooden handicrafts, decoration mosaic cutting.

3. Model decoration: model making, decoration, marking, cutting and marking of product packaging, etc.

4. Carton printing industry: used for engraving rubber boards, double-layer boards, plastic boards, cutting lines, knife template cutting, etc.

5. Industrial application: cutting and blanking of non-metallic plates in the industrial field, such as rubber sealing ring cutting, etc.

Technical Parameters

FP1412 CO2 Laser Cutting Machine Technical Parameters

1	Model	FP1412
2	Laser type	Co2 Glass Inner Cavity Sealed Laser
3	Laser power	Standard 150W (100W, 130W,180W optional)
4	Max. processing range at one time	1400*1200mm
5	Max Feed Width	1500mm
6	Weight	520kg
7	Engraving Speed	0-60000mm/min
8	Cutting Speed	0-30000mm/min
9	Cooling system	Water cooling
10	Laser Power Control	Software control/manual adjustment two optional modes
11	Laser tube cooling	Forced water cooling (optional industrial chiller)
12	Mechanical resolution	0.025mm
13	Mini Formed Text	Chinese characters 2mm, English 1mm
14	The thickest cutting depth	20mm (acrylic as an example)
15	Repeatability	±0.1mm
16	power supply	AC220V±15% 50Hz
17	Total power	≤1500W
18	Support software format	BMP PLT DST AI DXF DWG
19	Drive	Stepper motor driving
20	Working temperature	0℃～45℃
21	Working environment humidity	5%～95%
22	Engraved countertops	Push-pull working platform honeycomb or blade two options (lifting platform)
23	Max. Scanning Accuracy	2500DPL
24	Software language	Simplified Chinese, Traditional Chinese, English
25	Control method	CNC automatic
26	Cutting speed	≥800mm/min
27	Positioning accuracy	≤0.05mm
28	Fast forward speed	≥1500mm/min
29	Application	Cutting, engraving, punching, hollowing out, etc.
30	Applicable material	Acrylic, stone, wool, cloth, paper, wood, bamboo, plastic, glass, film, ceramics and other non-metallic materials

Configuration Options

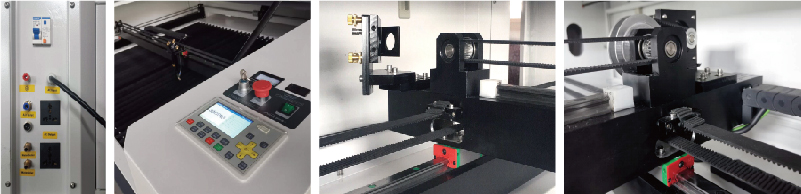

Transmission Unit:

Y-axis intermediate drive, imported diaphragm coupling to better ensure transmission accuracy

Three-phase Stepper Motor:

It adopts all-digital three-phase stepper motor driver and supporting motor, which greatly surpasses the industry's wide range in terms of power and torque balance.

A two-phase stepper system is used.

Trocen Touch Screen Control System:

Support USB transmission, U disk data import, support power off and continue engraving function.

Adopt USB3.0 chip, support all brands of U disk, support standard RJ45 network cable to transmit data.

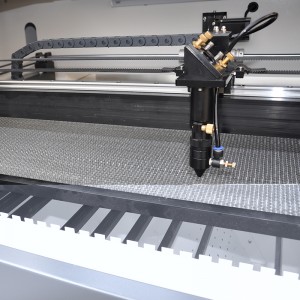

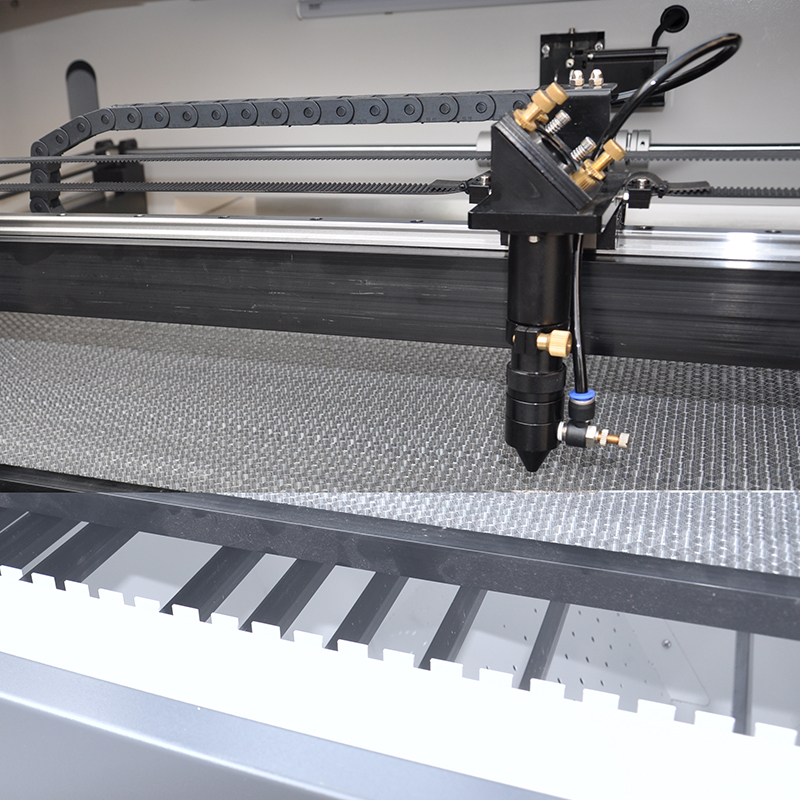

Double Blowing Anti-fire Function (patent) (upgrade laser head: double blowing, adjustable focus)

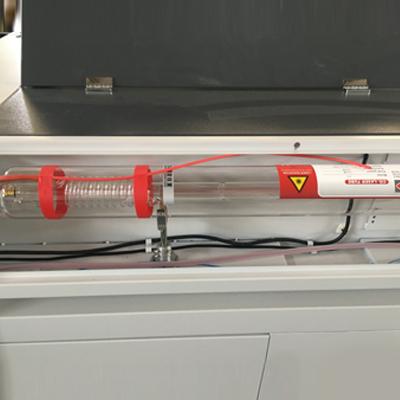

High Performance and Long Life Co2 Laser Tube：

Using patented cavity catalysis technology and laser head adjustment cavity technology, the laser response is faster, the energy conversion rate is high, and the service life is long.

The light spot has a long and slender life, high stability, low maintenance cost, and a 10-month warranty.

Ouguan/Jizhi Industrial Double Constant Temperature Chiller
