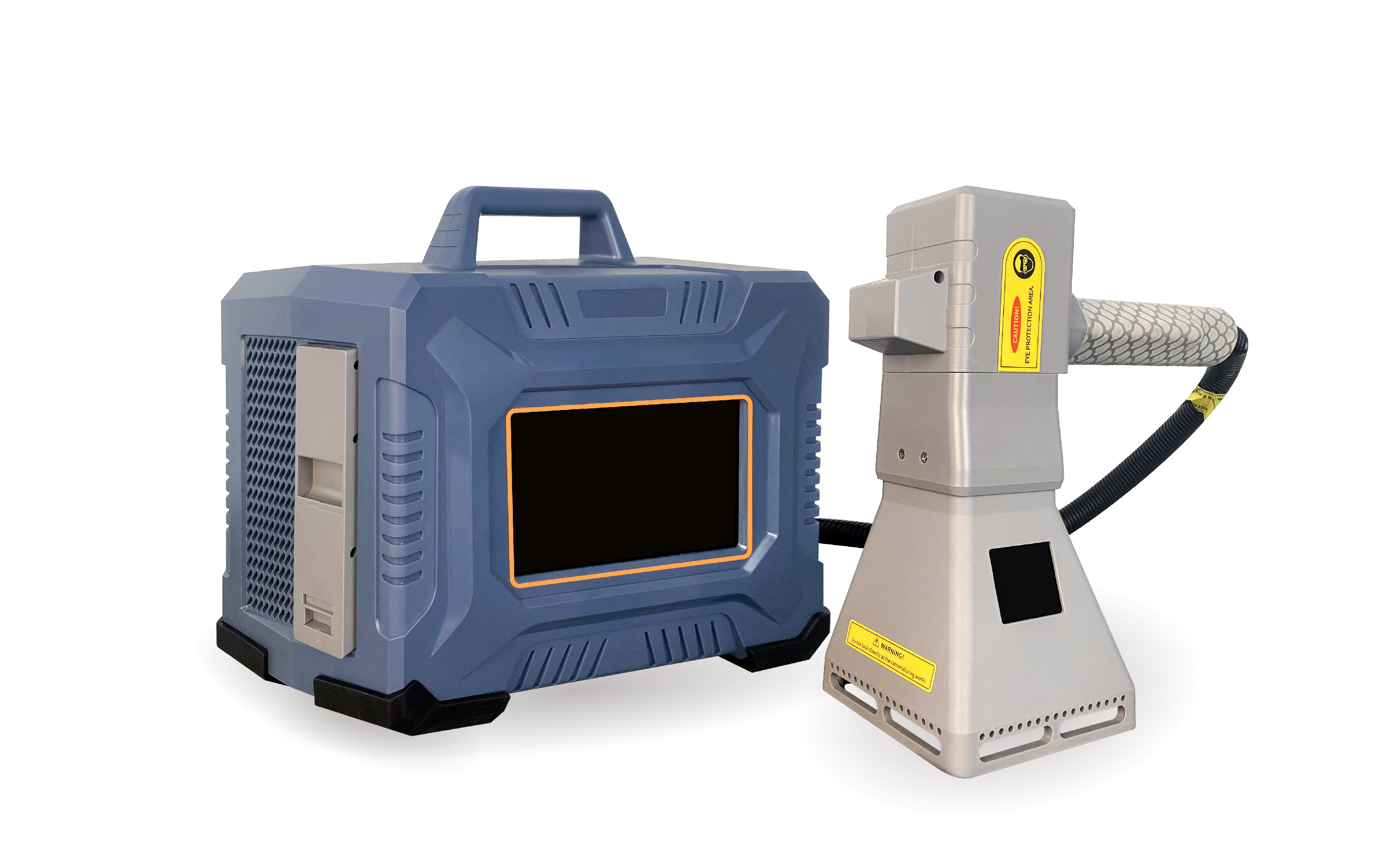

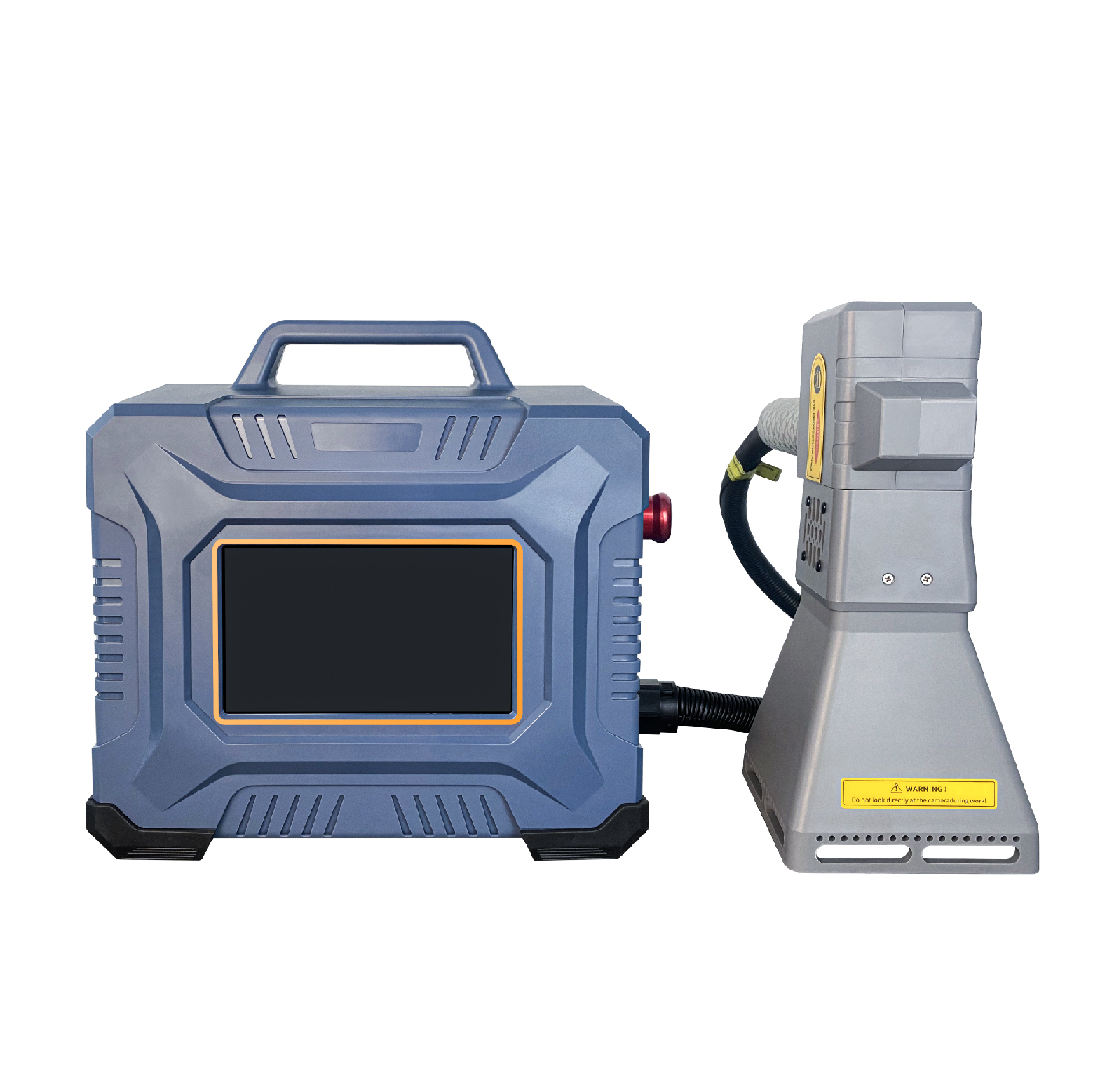

Mini Portable Handheld Fiber Laser Marking Machine CE Standard with Battery

Short Description:

1. the machine is suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc.,

2. some non-metal materials including PVC, ABS, tires, mirrors etc

3. mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

4. 20W, 30W, 50W, 60W power available

5. marking area: 110x110mm

Send email to us

Product Detail

Product Tags

Product Advantages

a) Compared with other models, FP-20C Series small portable handheld laser marking machine is smaller and more portable, easy to carry, making laser marking more flexible.

b) It is suitable for various usage scenarios, especially when the marking workpiece is large or heavy and inconvenient to move, or when your customers need you to bring the machine to their door-to-door service.

c) Intelligent operating system, touch screen control and responsive, simple marking interface, let a novice learn how to use this machine in the shortest time.

d) The machine has low power consumption, maintenance-free, long service life, and high consistency of beam diameter.

e) Especially suitable for high precision and fine marking.

f) Various fine and complex patterns required by users can be marked on extremely small surfaces

Technical Parameters

FP-20C Series Mini Handheld Fiber Laser Marking Machine
1	Model	Plug-in model: FP-20C (30C/50C/60C/100C) Battery type: FP-20L (30L/50L/60L/100L)
2	Power	20W/30W/50W/60W/100W
3	Wavelength	1064nm
4	Max. pulse energy	1.1mJ
5	Frequency adjustable range	27-170kHz
6	Printing method	High-precision two-dimensional scanning method
7	Marking speed	≤7000mm/s
8	Operation interface	Built-in 7-inch touch screen, Linux operating system
9	Cooling system	Air cooling
10	Marking area size	100x100mm (standard) 70x70mm, 150x150mm (optional)
11	Positioning method	Red light positioning
12	Language	Chinese, English, German, Arabic, Russian, Portuguese and etc
13	File format	PLT/DXF/PNG/JPG/BMP/SVG
14	Power supply	220V/110V ±10%
15	Max. power consumption	20W-120W / 30W-150W/ 50W-200W
16	Net weight	50W battery type: 8.4kgs 50W battery plug-in model: 6kgs
17	Continuous working time at full charge and full power	about 4 hours (battery model)about 2 hours (50W)
18	Charging time	about 2 hours (battery model)
19	Temperature	0-40℃
20	Environment humidity	30-85RH(No condensation)

Laser Marking Samples

Product Characteristics

Wide range of applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Marking speed is fast
Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Maintenance free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

Product Detail

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.e use.

Easy maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

Low failure rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Low environmental requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.

No consumables required
No need for any consumables, non-toxic, no environmental pollution, high environmental protection

1. Is the packaging safe for international long-distance transportation?
We will use the standard export wooden cases sponge filled inside for packing protection.
The machine is covered by plastic film for waterproof. Then covered by foam to protect the machine from shaking. And the outside, we adopt the standard export wooden cases.
Regardless of international express, air or sea transportation, we will try our best to protect the machine from damage during transportation.

2. If the order is confirmed, how soon can it be shipped?
According to the quantity ordered. For less than 5 marking machines order, we can guarantee delivery within 7 working days.

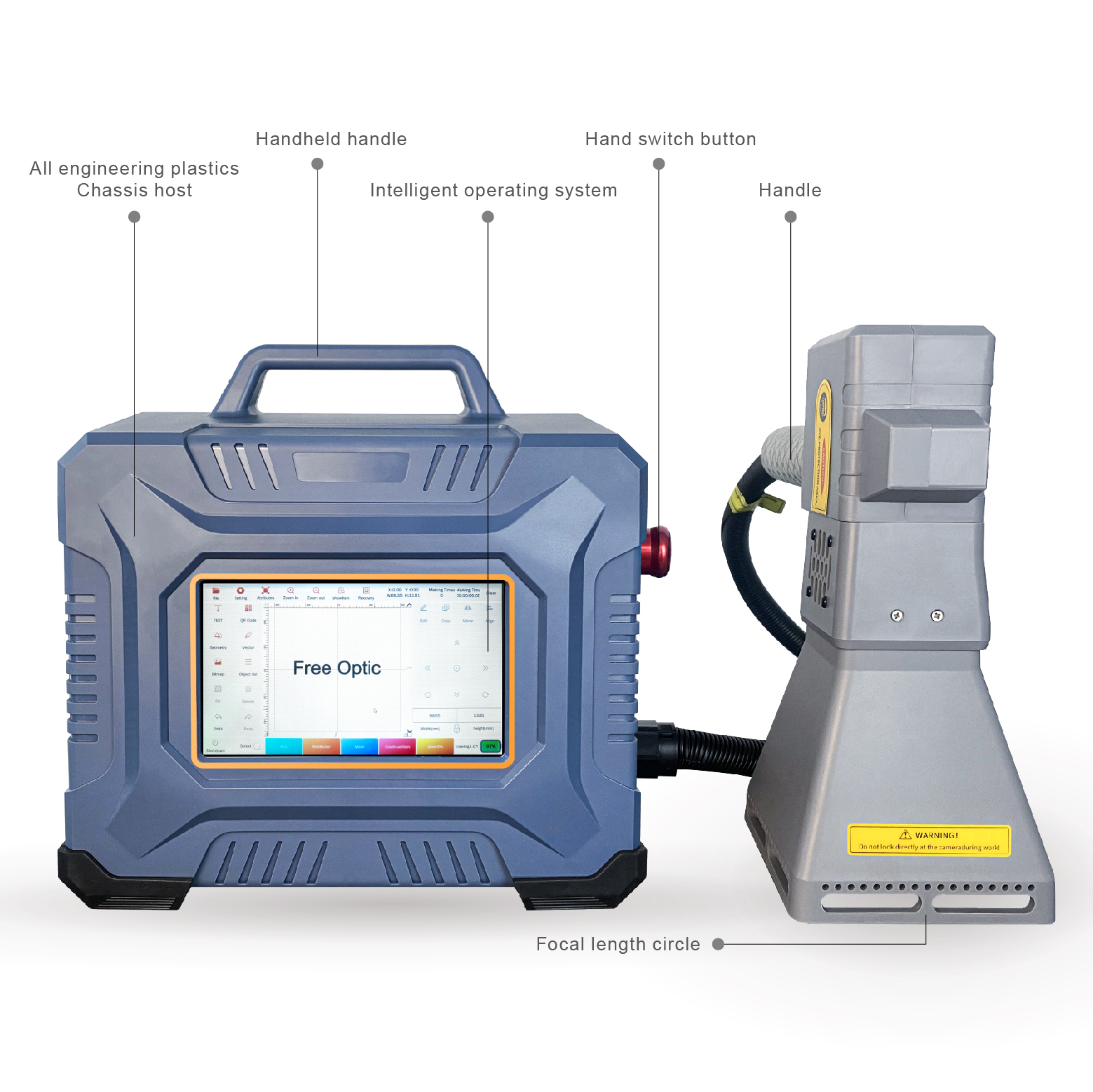

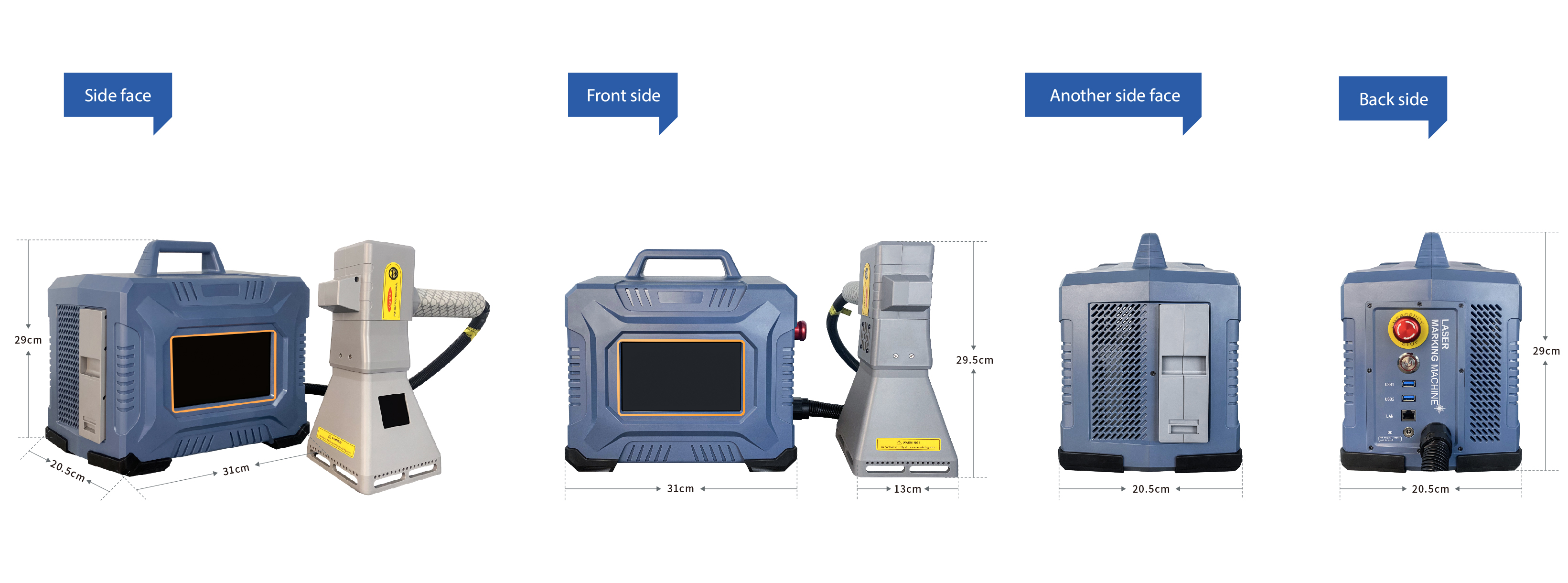

Machine Details Display

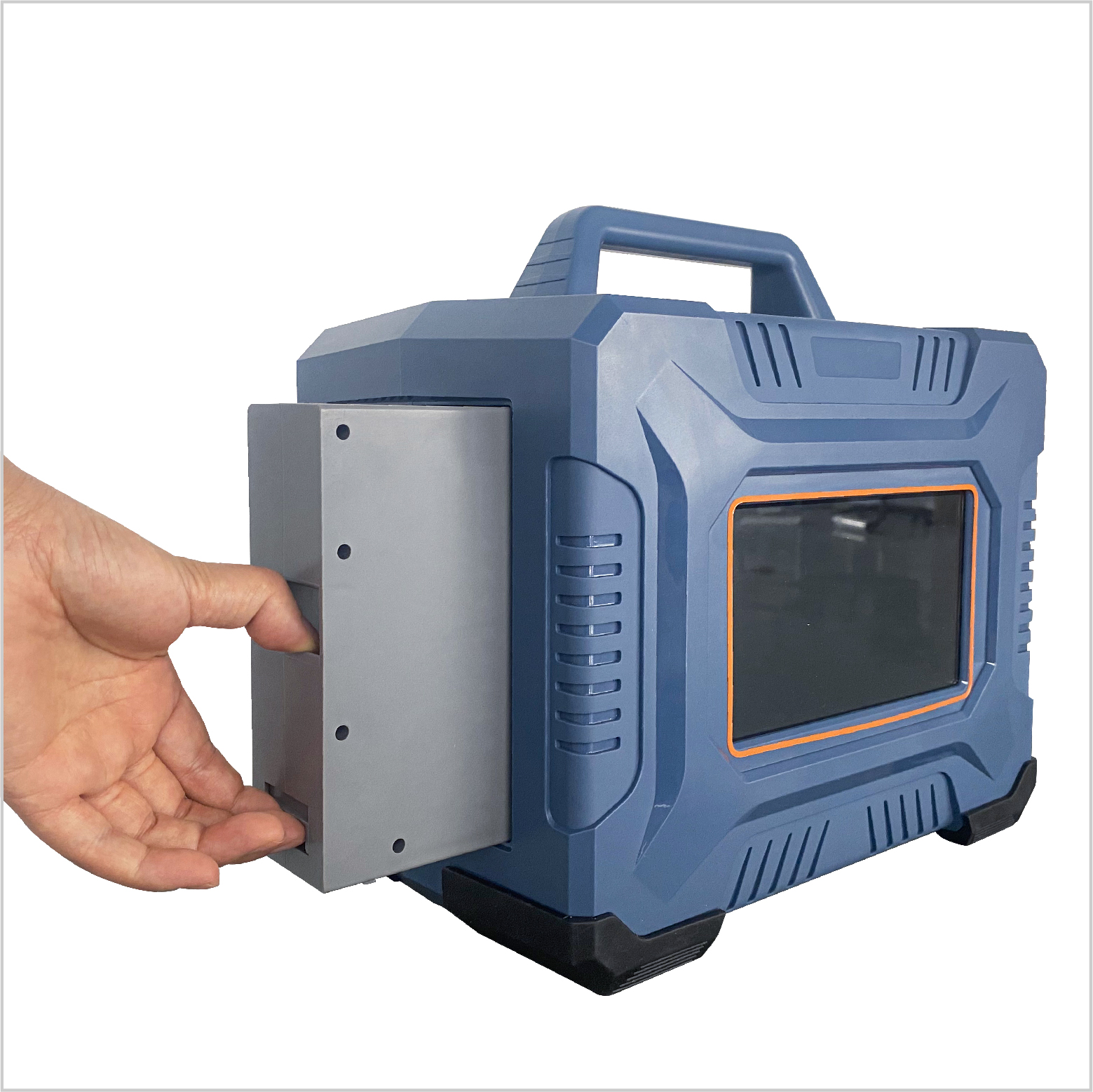

Removable lithium battery design
Red light positioning system, One-button marking

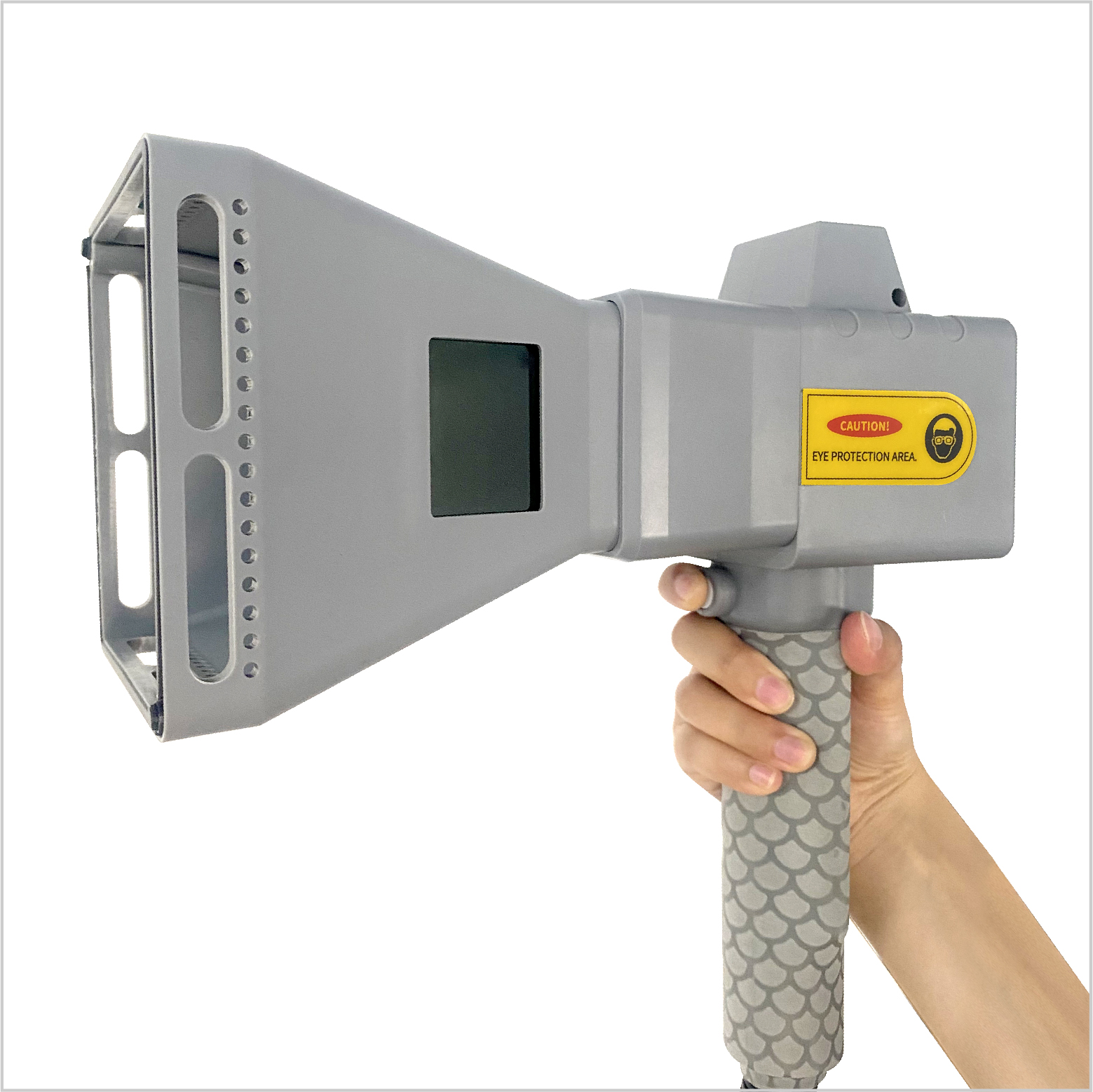

Handle diameter 35mm
Ergonomics, More comfortable to operate

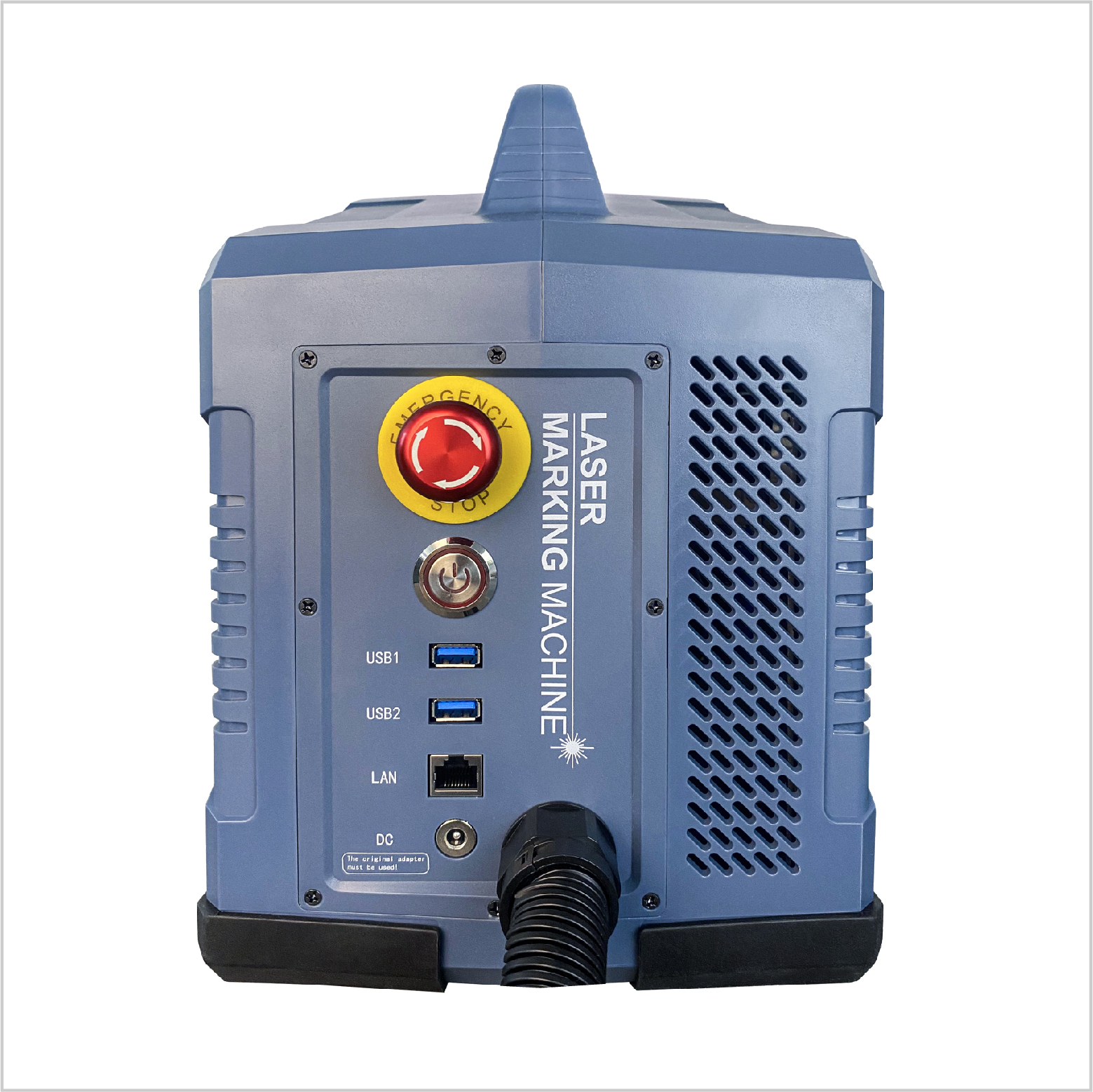

External USB interface
Marking files can be imported for editing and marking

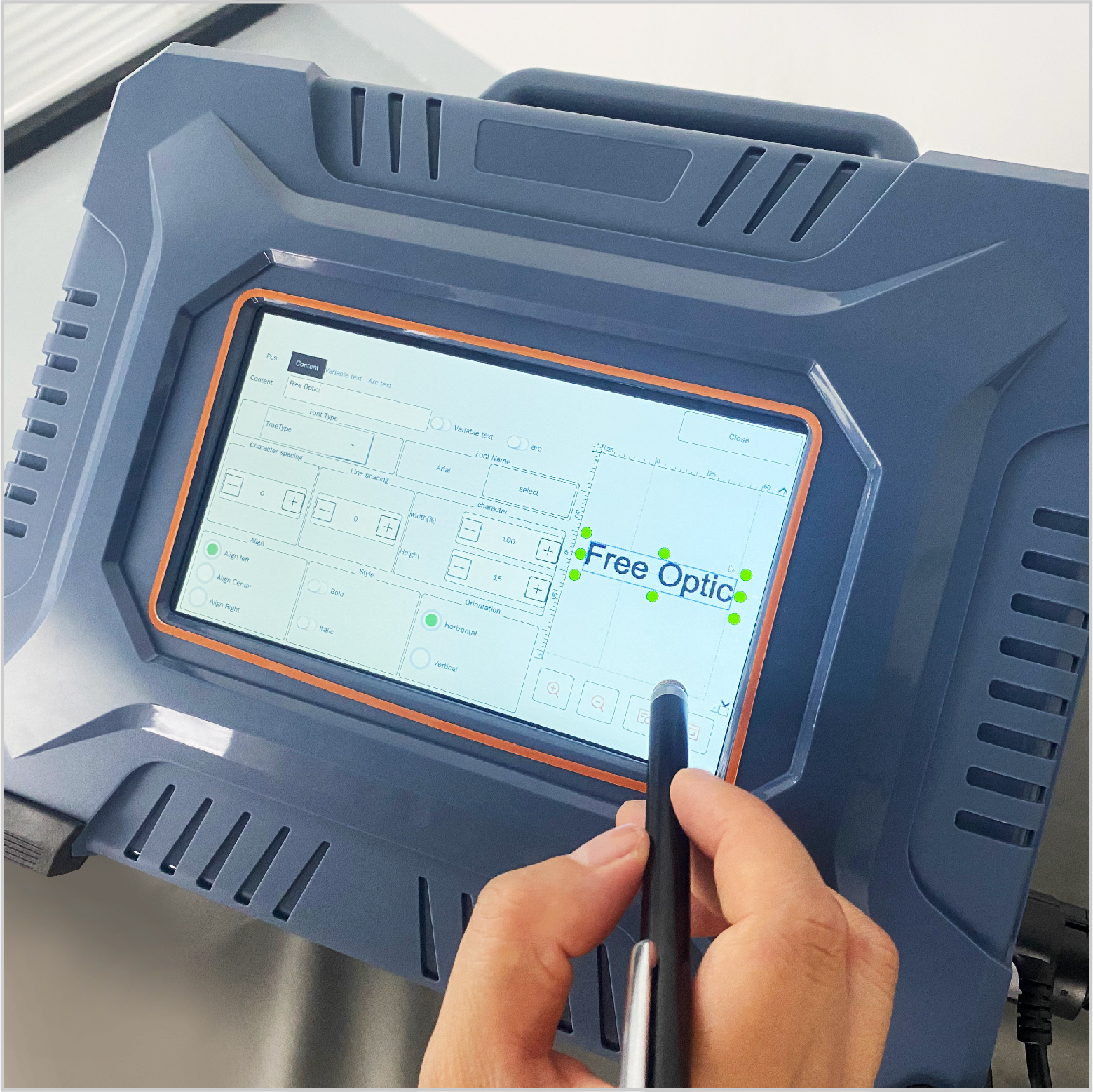

LCD touch screen
High operating sensitivity

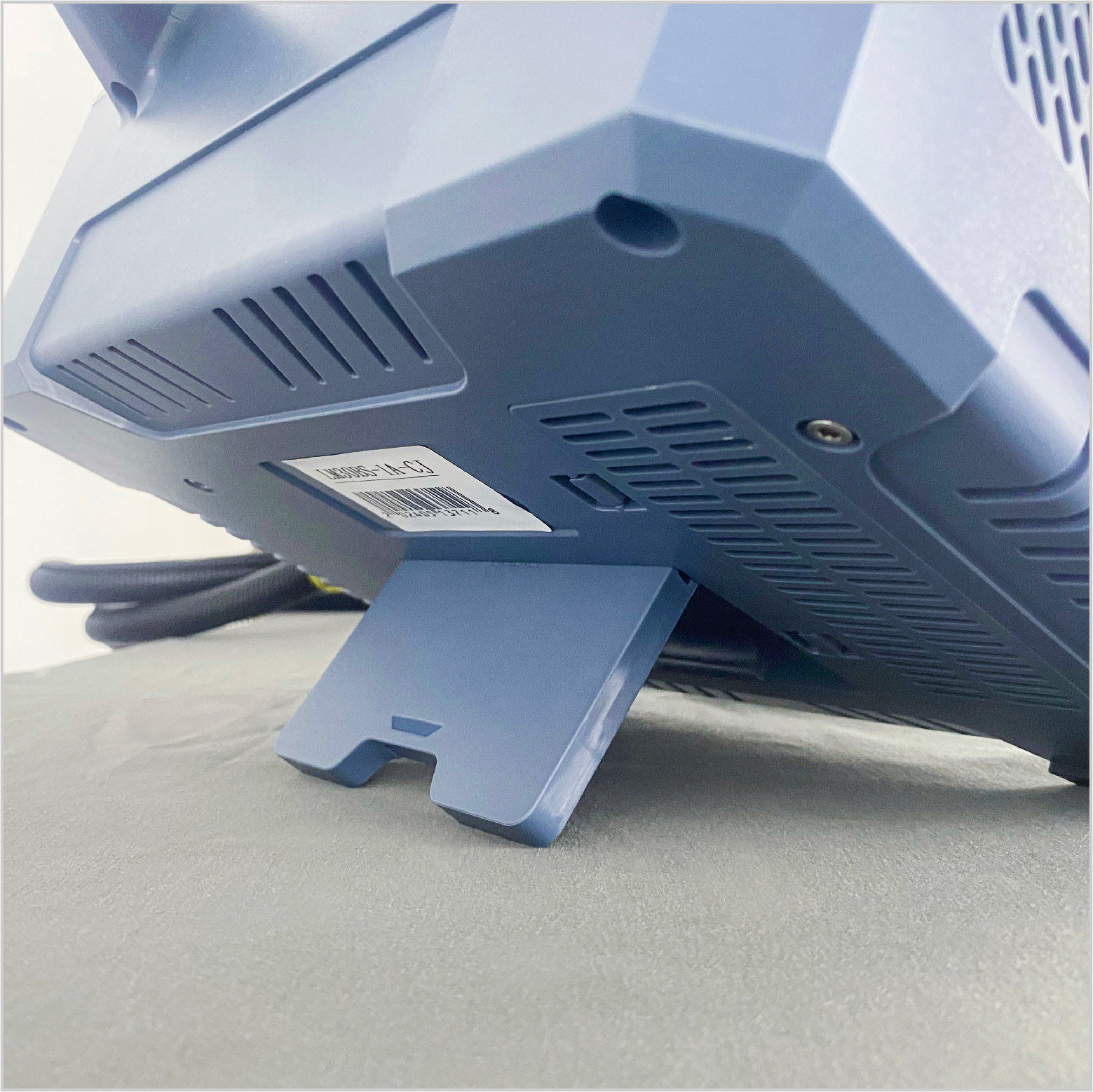

There is a bracket on the back
Humanized design, Stably supports the body making operation more convenient

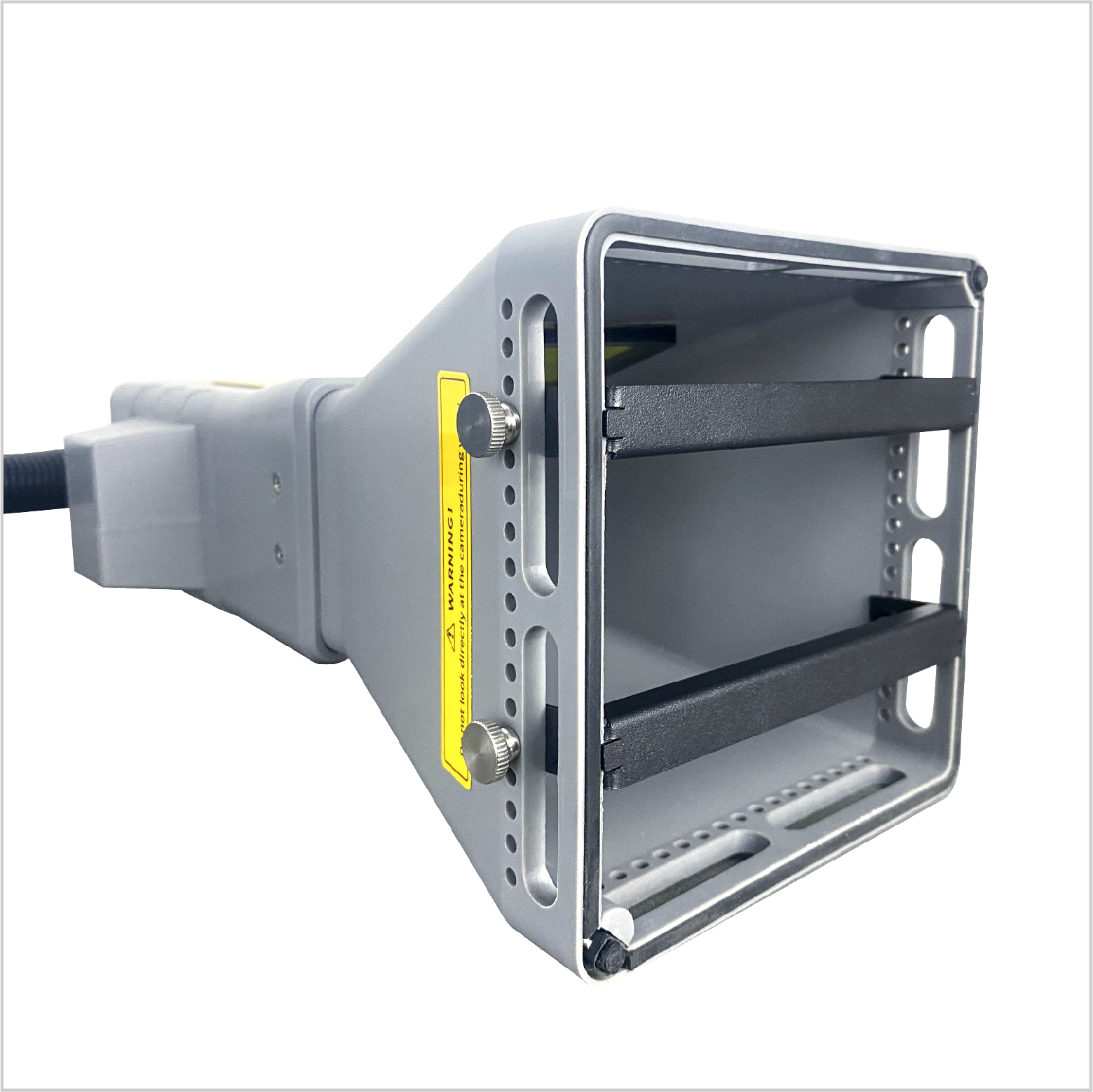

Equipped with two movable
positioning bars to easily
position and mark smaller workpieces

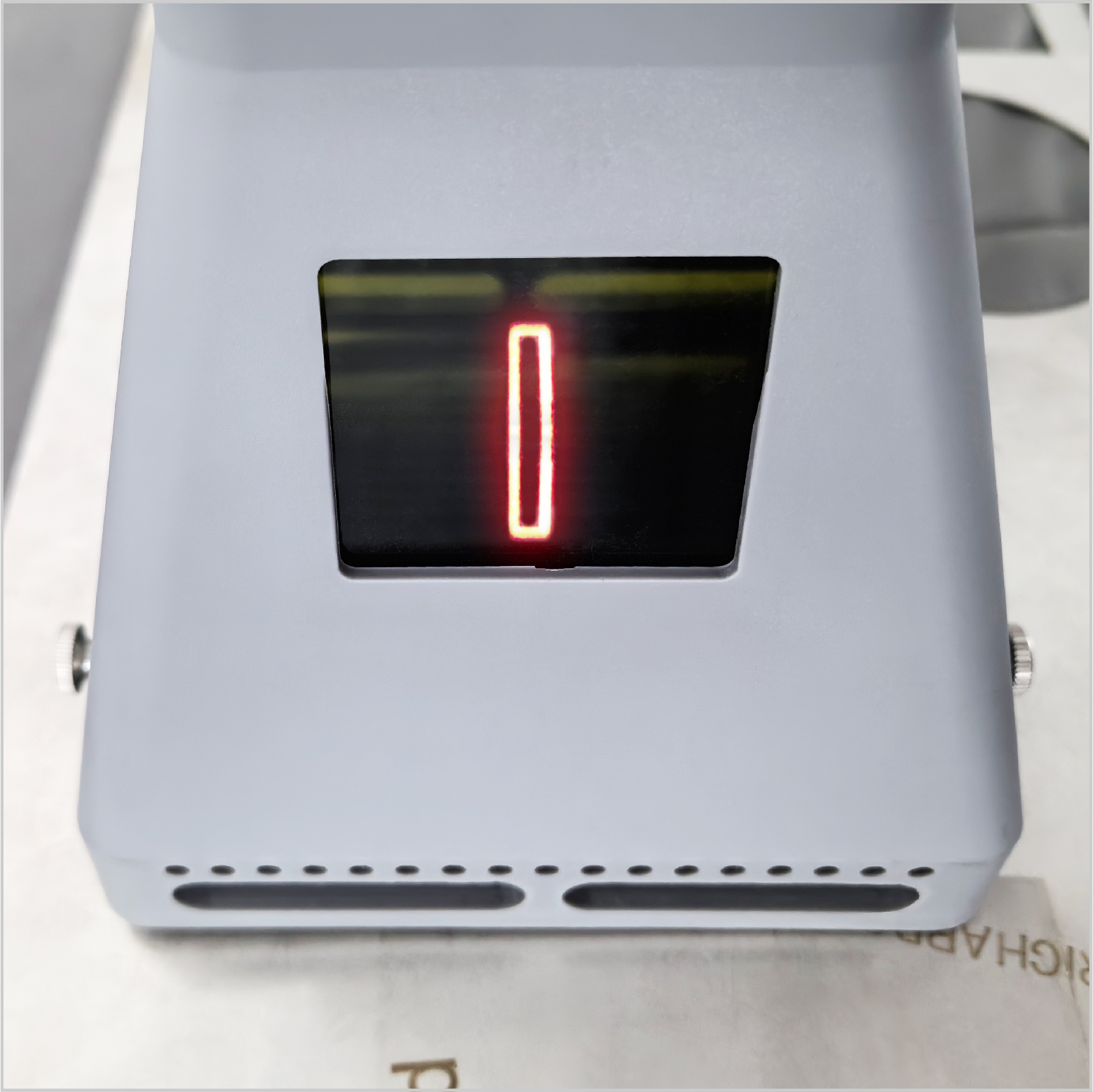

Through the protective window
on the focal length mask,
you can clearly see the red light outline
position to determine the mark position.
