Mini Portable Handheld Fiber Laser Marking Machine 20W 30W 50W 60W

Short Description:

Mini Portable Handheld Fiber Laser Marking  Machine 20W 30W 50W 60W

1. Laser power: 20W, 30W, 50W, 60W

2. Marking area: 110*110mm/150*150mm

3. Laser source brand: Max


Product Detail

Product Tags

Product Features

便携手持 橙色_画板 1 副本 3

1. lt is suitable to metal, such as steel, stainless, copper, aluminum, gold, silver, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.

2. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

3. lt’s easy to operate. Get started quickly without experience.

便携手持 橙色_画板 1 副本 4

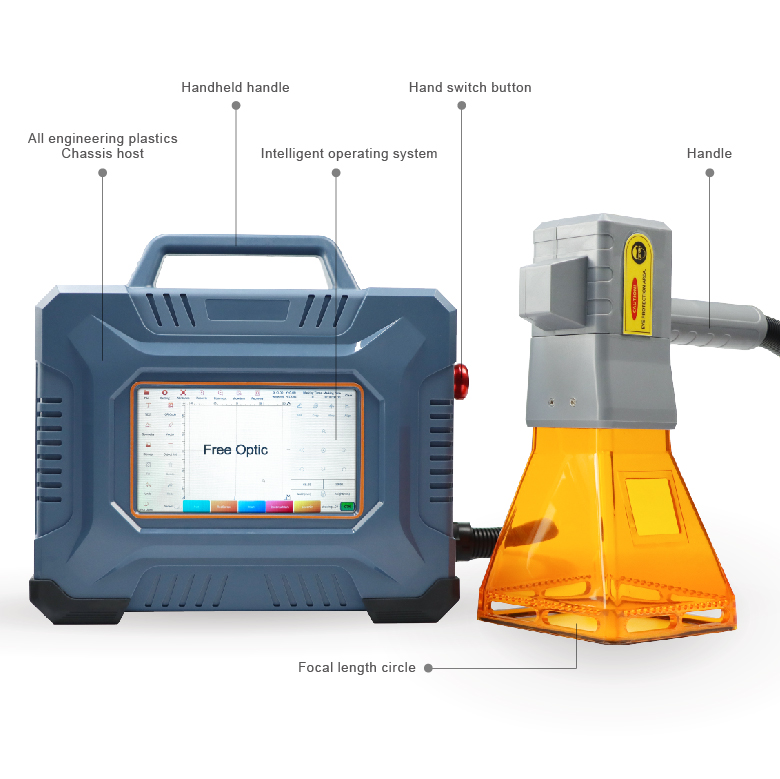

Machine Main Configuration

便携手持 橙色_画板 1 副本 6

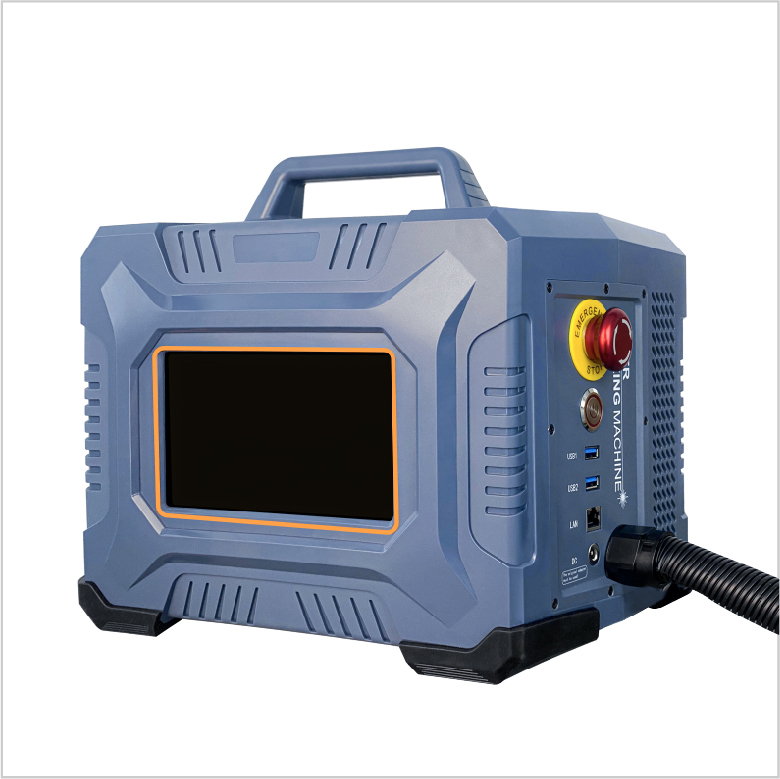

Industrial Plastic Shell

Strong and durable, lighter Weight to saving the international shipping costs

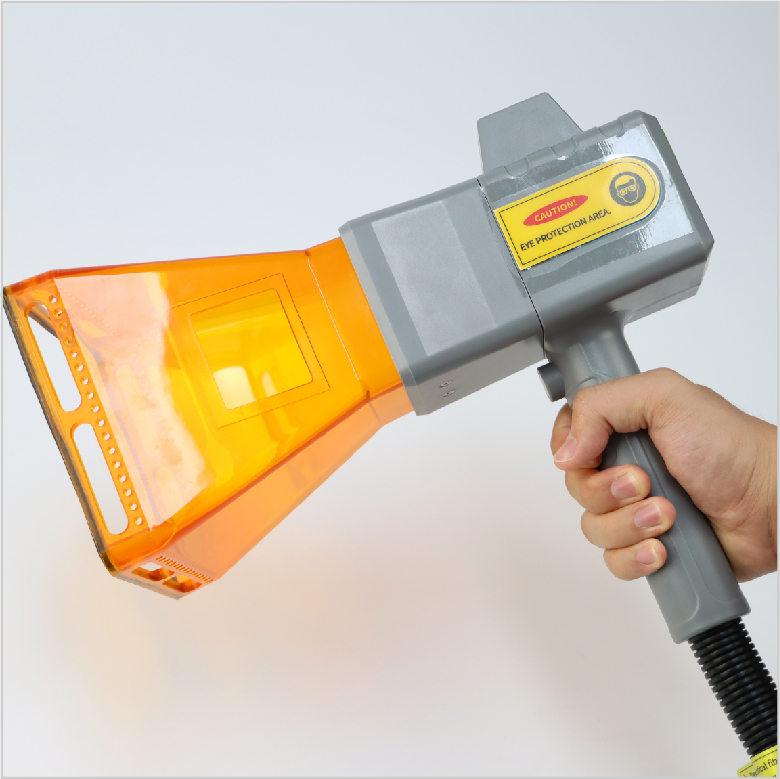

Handle Diameter 35mm
Ergonomics, more comfortable to operate

便携手持 橙色_画板 1 副本 7
便携手持 橙色_画板 1 副本 8

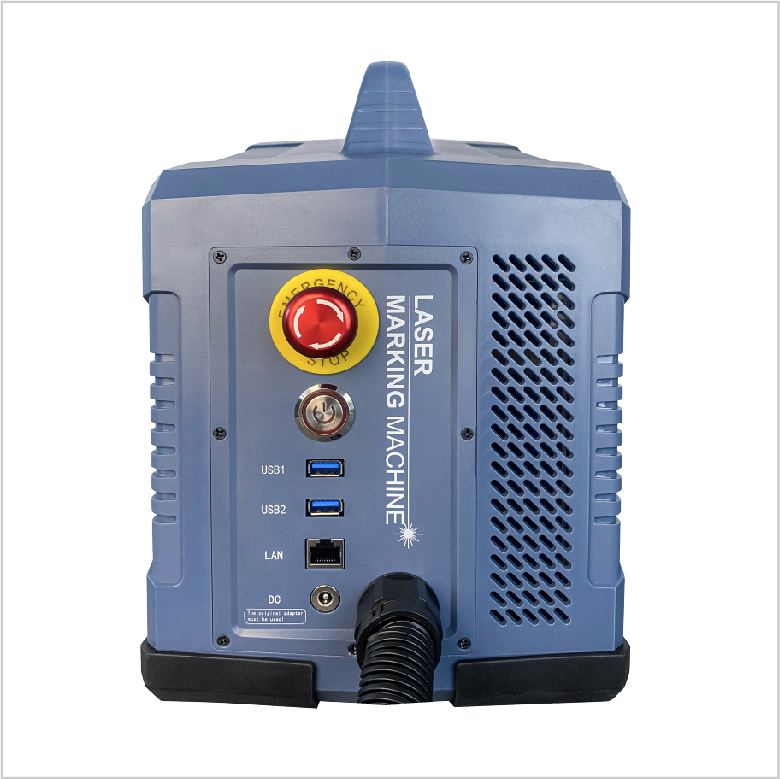

External USB interface
Marking files can be imported for editing and marking

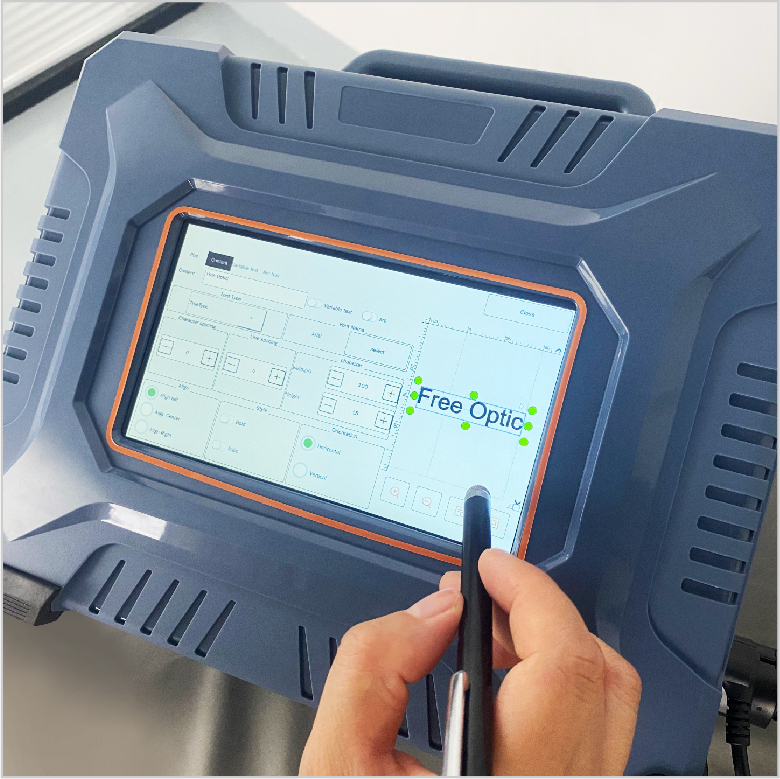

LCD touch screen
High operating sensitivity

便携手持 橙色_画板 1 副本 9
便携手持 橙色_画板 1 副本 10

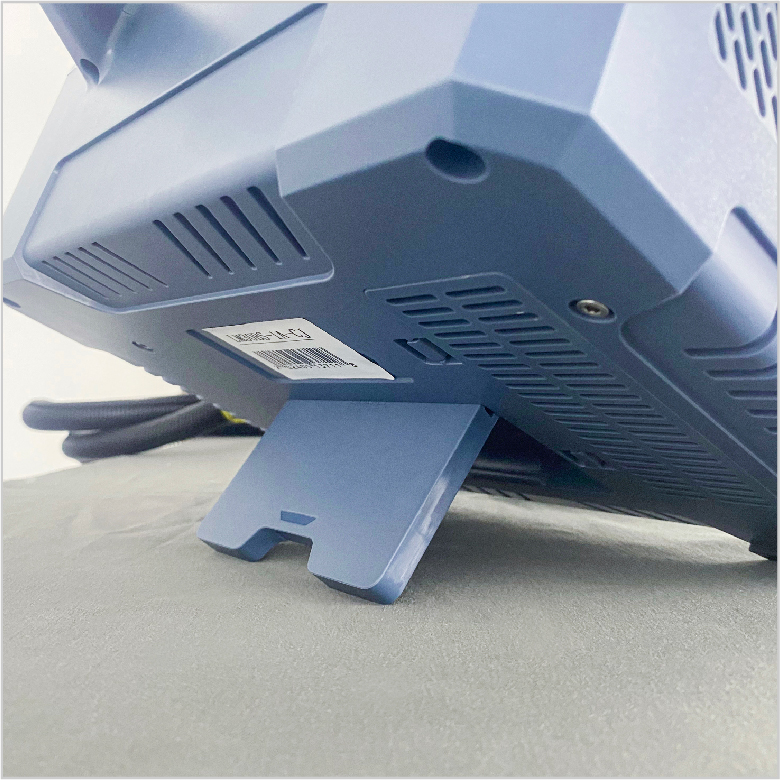

There is a bracket on the back
Humanized design, Stably supports the body making operation more convenient

Technical Parameters

FP-20C Series Mini Handheld Fiber Laser Marking Machine
1 Model Plug-in model: FP-20C (30C/50C/60C/100C)
2 Power 20W/30W/50W/60W/100W
3 Wavelength 1064nm
4 Max. pulse energy 1.1mJ
5 Frequency adjustable range 27-170kHz
6 Printing method High-precision two-dimensional scanning method
7 Marking speed ≤7000mm/s
8 Operation interface Built-in 7-inch touch screen, Linux operating system
9 Cooling system Air cooling
10 Marking area size 100x100mm (standard)
70x70mm, 150x150mm (optional)
11 Positioning method Red light positioning
12 Language Chinese, English, German, Arabic, Russian, Portuguese and etc
13 File format PLT/DXF/PNG/JPG/BMP/SVG
14 Power supply 220V/110V ±10%
15 Max. power consumption 20W-120W / 30W-150W/ 50W-200W
16 Net weight 50W battery type: 8.4kgs
50W battery plug-in model: 6kgs
17 Continuous working time
at full charge and full power		  about 4 hours (battery model)about 2 hours (50W)
18 Charging time about 2 hours (battery model)
19 Temperature 0-40℃
20 Environment humidity 30-85RH(No condensation)

Laser Marking Samples

标准台式2023_画板 1 副本
