Split Portable Fiber Laser Marking Machine 20W, 30W, 50W, 100W, 200W

Short Description:

Split Portable fiber laser marking machine

1. Laser power: 20W, 30W, 50W, 100W, 200W

2. Marking area: 110*110mm/150*150mm/175*175mm/200*200mm/300*300m

3. Laser source brand: Raycus/Max/JPT and etc

4. Optional tools: Rotary device, fixture, nameplates device and etc.


Product Detail

Product Tags

Product Features

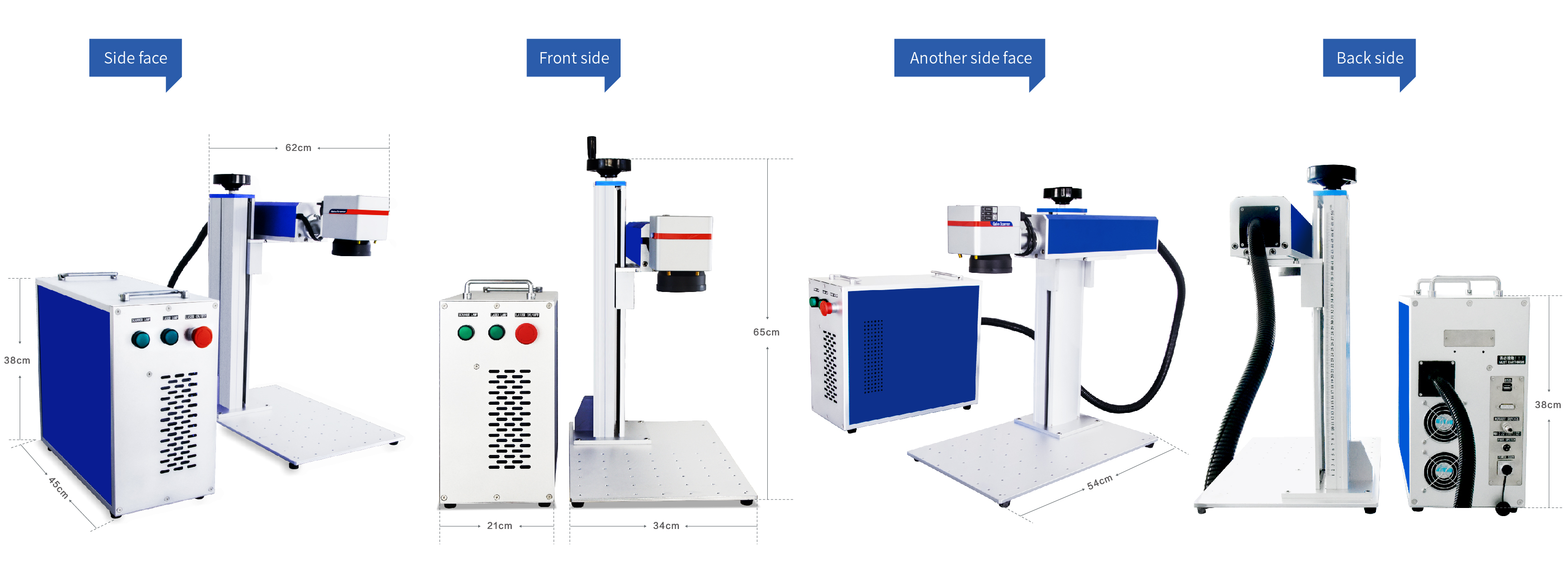

分体式2023_画板 1 副本 3

1. lt is suitable to metal, such as steel, stainless, copper, aluminum, gold, silver, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.

2. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

3. lt’s easy to operate. Get started quickly without experience.

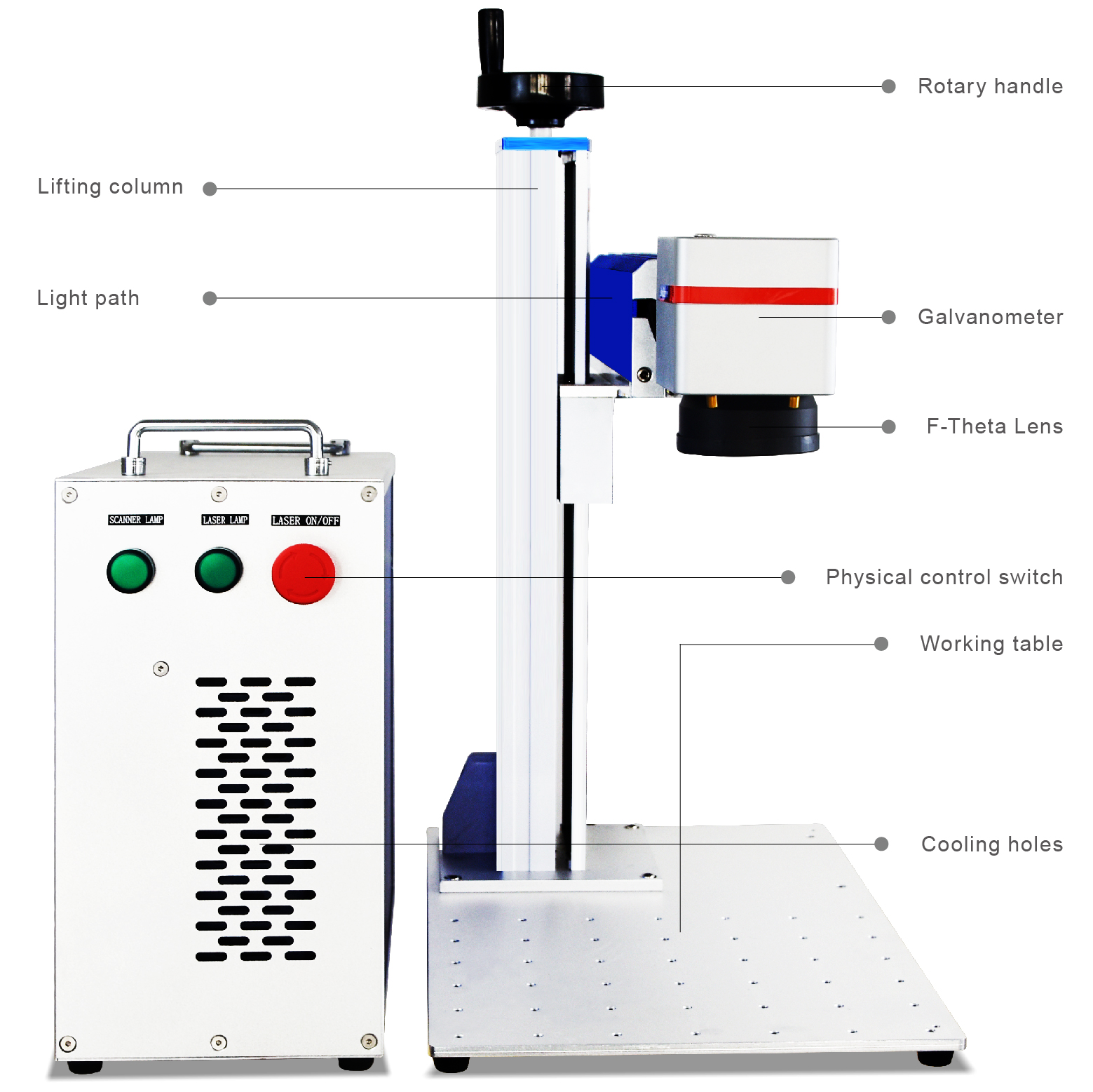

分体式2023_画板 1 副本 4

Machine Main Configuration

标准台式（白色机柜） 电动升降2.0_画板 1 副本 9

Raycus/Max/JPT laser source
Chinese top brand laser source, service life exceeds 100,000 hours

Sino-Galvo High Speed Digital Galvanometer
External dual red light helps to quickly find the focus position

标准台式2023_画板 1 副本 6
标准台式2023_画板 1 副本 7

High Transparency F-theta Lens

Lens 110x110mm, 150x150mm, 175x175mm, 200x200mm, 300x300mm

BJ JCZ Genuine Control Board

标准台式（白色机柜） 电动升降2.0_画板 1 副本 10
标准台式（白色机柜） 电动升降2.0_画板 1 副本 11

EZCAD Professional Marking Machine Software

Supports English, Turkish, Spanish, Russian, Vietnamese, German, Italian, Korean, Japanese and other languages

Supports QR code, barcode, serial number, simple graphics

Anodized Aluminum Working Table
Full anodized aluminum technology, fine polishing, stable work, craftmanufacturing

标准台式2023_画板 1 副本 8

Configuration Options

手持台式2023_画板 1 副本 5

Technical Parameters

FP-50B Fiber Laser Marking Machine Technical Parameters
1 Model FP-50B
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 50W ( 20W, 30W, 100W, 200W optional)
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)150x150mm, 175x175mm, 200x200mm, 220x220mm optional
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%， 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

Laser Marking Samples

标准台式2023_画板 1 副本
