Trolley Fiber Laser Marking Machine 20w Jpt Fiber Laser Color Marking Machine for Metal Stainless Steel

Short Description:

1. Laser power: 20W, 30W, 50W, 100W, 200W

2. Marking area: 110*110mm/150*150mm

3. Laser source brand: Raycus/Max/JPT and etc

4. Optional tools: Rotary device, fixture, nameplates device and etc.

Send email to us

Product Detail

Product Tags

Product Features

1. lt is suitable to metal, such as steel, stainless, copper, aluminum, gold, silver, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.

2. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

3.Pulleys are set at the bottom for easy movement.

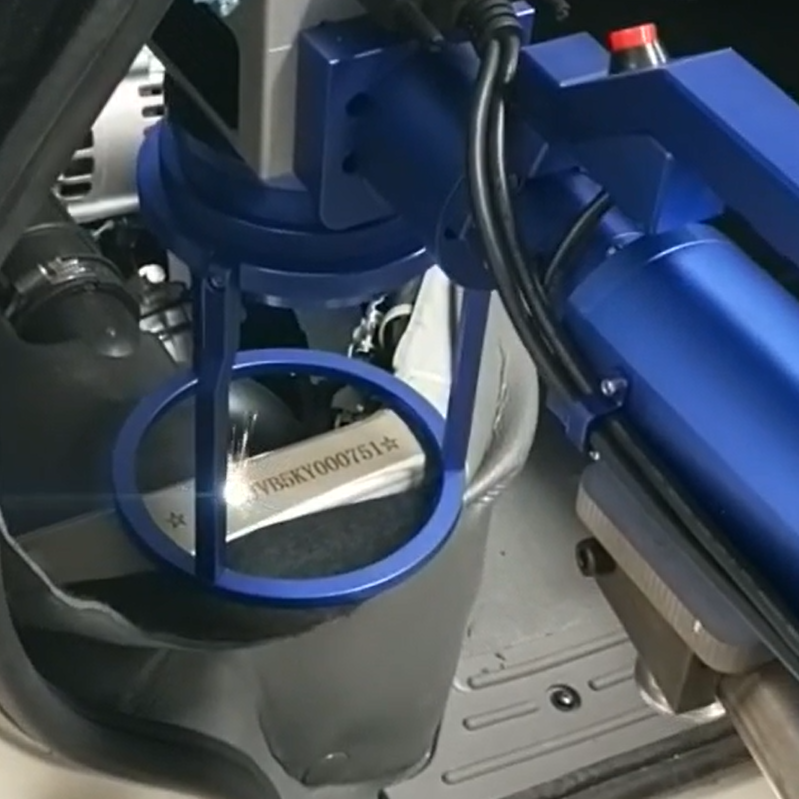

4.With handheld head. Convenient to mark large workpieces that cannot fit on the work table.

5. lt’s easy to operate. Get started quickly without experience.

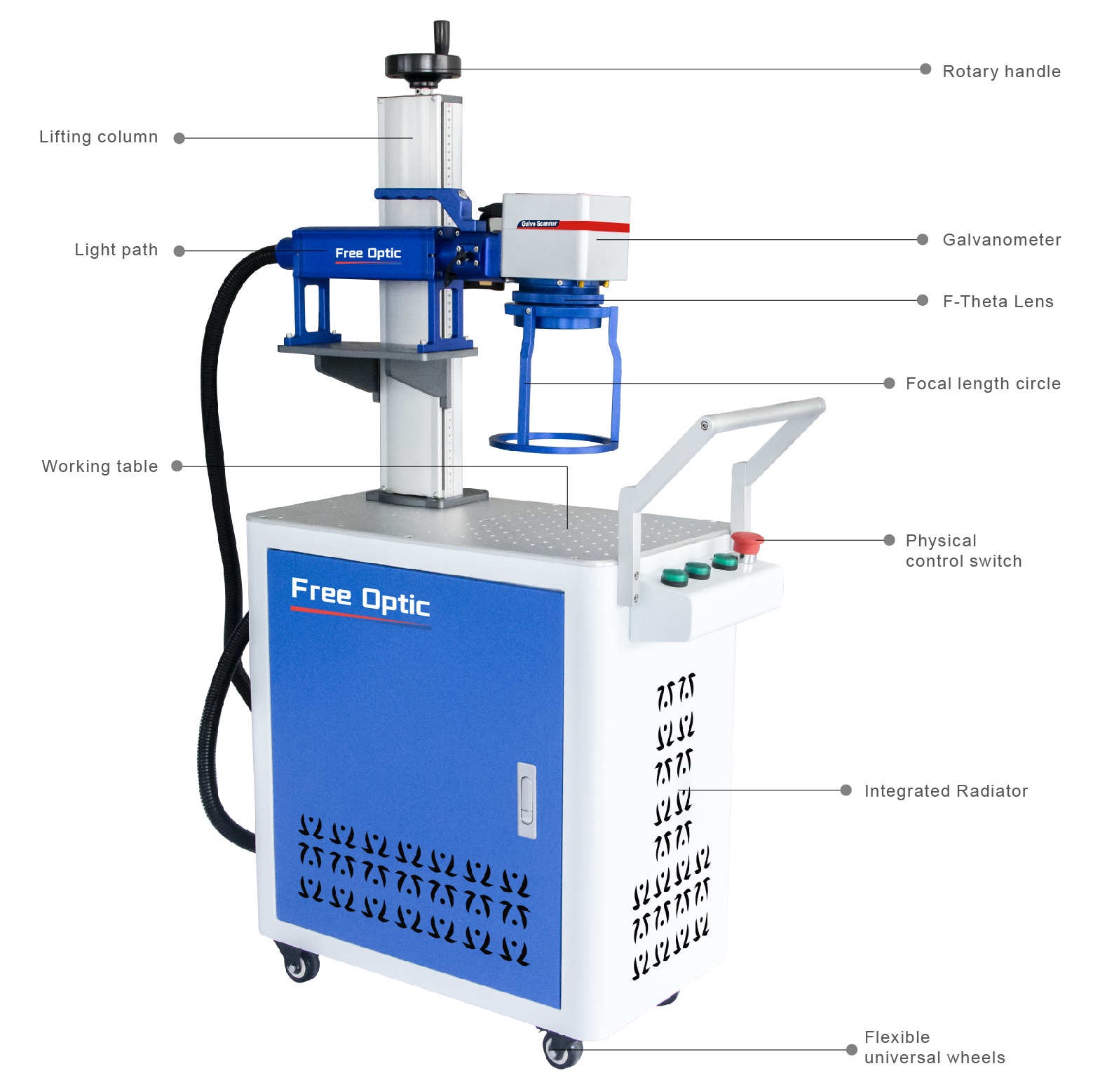

Machine Main Configuration

Raycus/Max/JPT laser source
Chinese top brand laser source, service life exceeds 100,000 hours

Sino-Galvo High Speed Digital Galvanometer
External dual red light helps to quickly find the focus position

High Transparency F-theta Lens

Lens 110x110mm, 150x150mm

BJ JCZ Genuine Control Board

EZCAD Professional Marking Machine Software

Supports English, Turkish, Spanish, Russian, Vietnamese, German, Italian, Korean, Japanese and other languages

Supports QR code, barcode, serial number, simple graphics

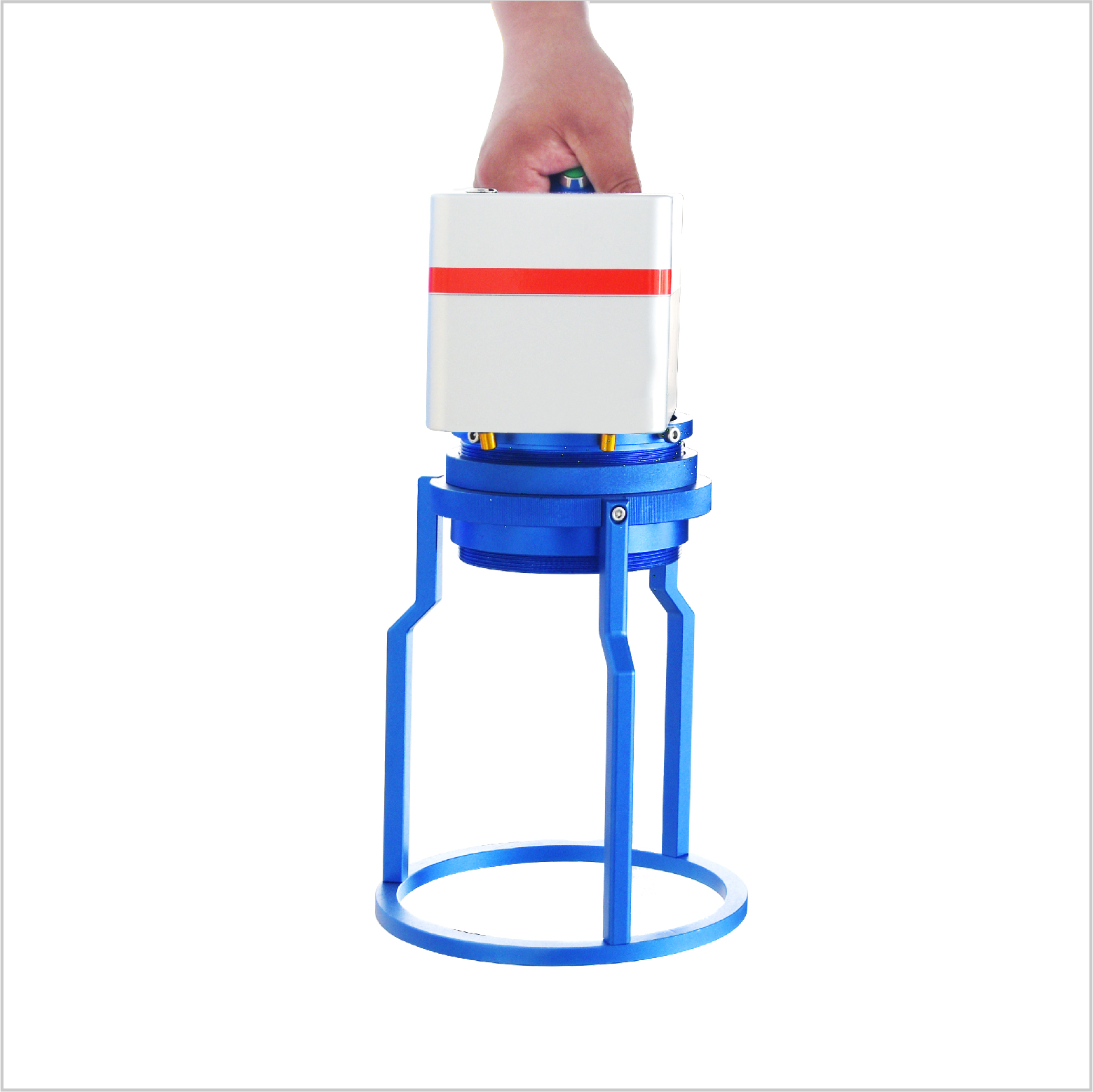

Portable Handheld Head with Focal Length Circle

110x110mm/150x150mm marking area

Accurate and fast positioning

Anodized Aluminum Working Table
Full anodized aluminum technology, fine polishing, stable work, craftmanufacturing

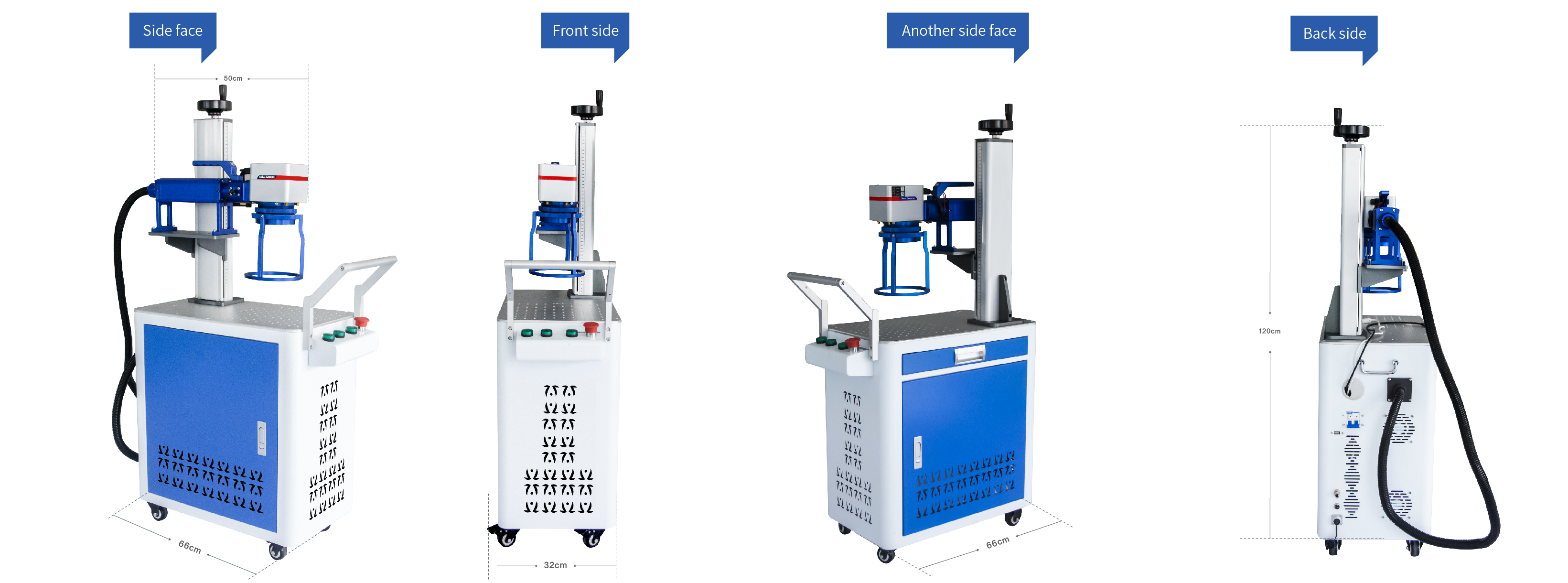

Portable and flexible

Easy to carry removable installation and portable marking

Configuration Options

Technical Parameters

FP-30CS Fiber Laser Marking Machine Technical Parameters
1	Model	FP-30CS
2	Beam quality	M': < 1.5 (TE MOO M)
3	Average output power	30W ( 20W, 30W, 100W, 150W, 200W optional)
4	Marking speed	≥12000mm/s
5	Laser wavelength	1064nm
6	Laser repetition frequency range	30khz-100khz (adjustable)
7	Character size	0.2mmx0.2mm
8	Output spot diameter	0.017mm
9	Marking range	110x110mm (standard)150x150mm optional
10	Repeatability	0.01mm
11	Output fiber length	3M
12	Power adjustment range	10-100%
13	Total power	≤500W
14	Cooling system	Air cooling
15	Output power stability	0-4℃
16	Power supply	AC220V±10%， 50hz/60hz
17	File format	BMP/DXF/PLT/JPEG/HPGL
