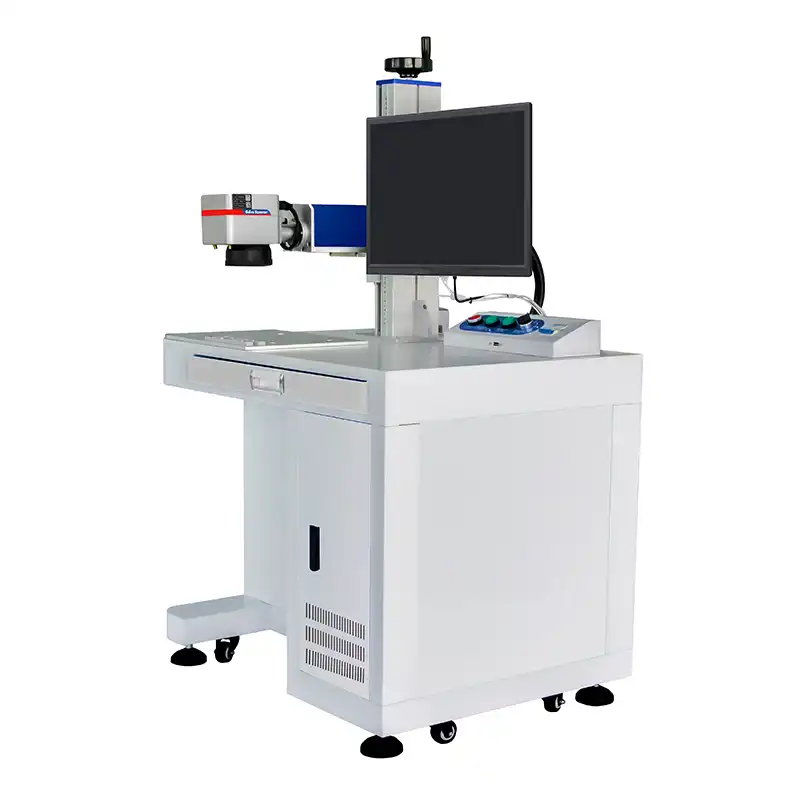

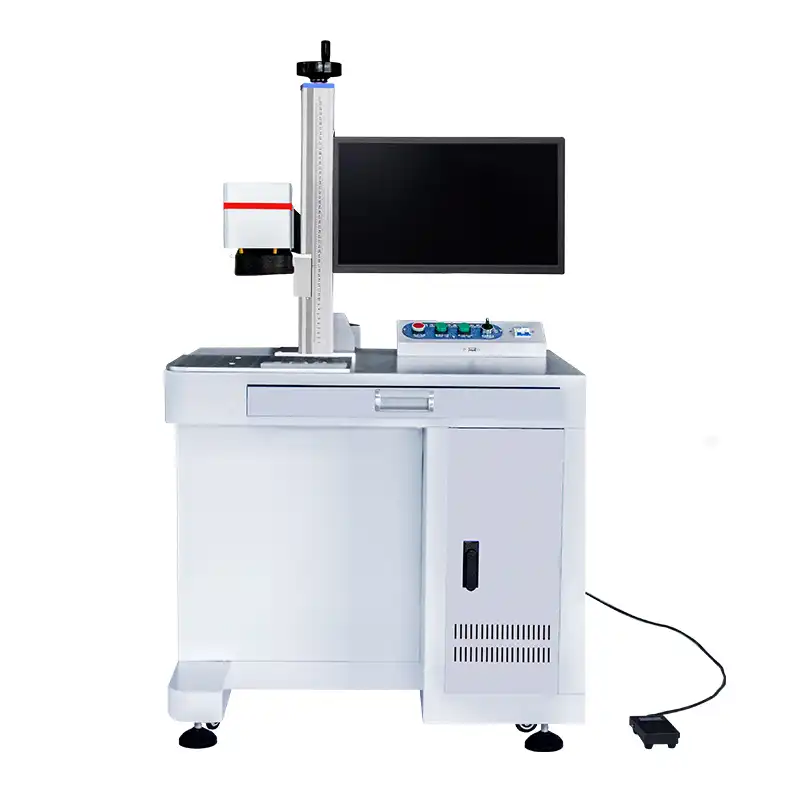

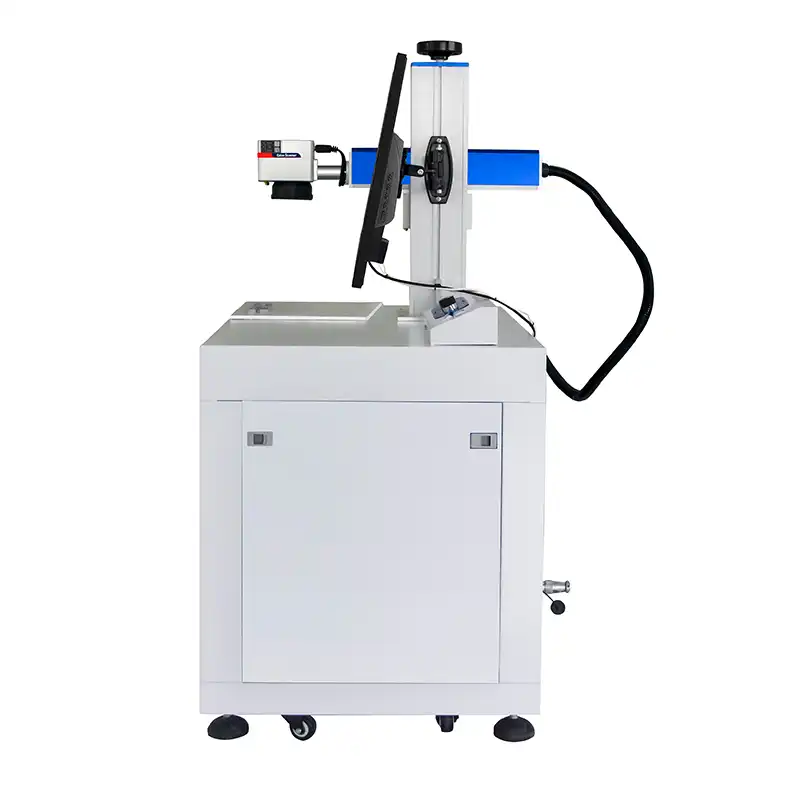

Motorised Electric Lifting Fiber Laser Marking Machines

Short Description:

Motorised Electric Lifting Fiber Laser Marking Machines

1. Laser power: 20W, 30W, 50W, 100W, 200W

2. Marking area: 110*110mm/150*150mm/175*175mm/200*200mm/300*300m

3. Laser source brand: Raycus/Max/JPT and etc

4. Optional tools: Rotary device, fixture, nameplates device and etc.


Product Detail

Product Tags

Product Features

标准台式（白色机柜） 电动升降2.0_画板 1 副本 3

1. lt is suitable to metal, such as steel, stainless, copper, aluminum, gold, silver, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.

2. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

3. Electric lifting column, press the up and down switch button to achieve easy focus.

4. lt’s easy to operate. Get started quickly without experience.

标准台式（白色机柜） 电动升降2.0_画板 1 副本 4

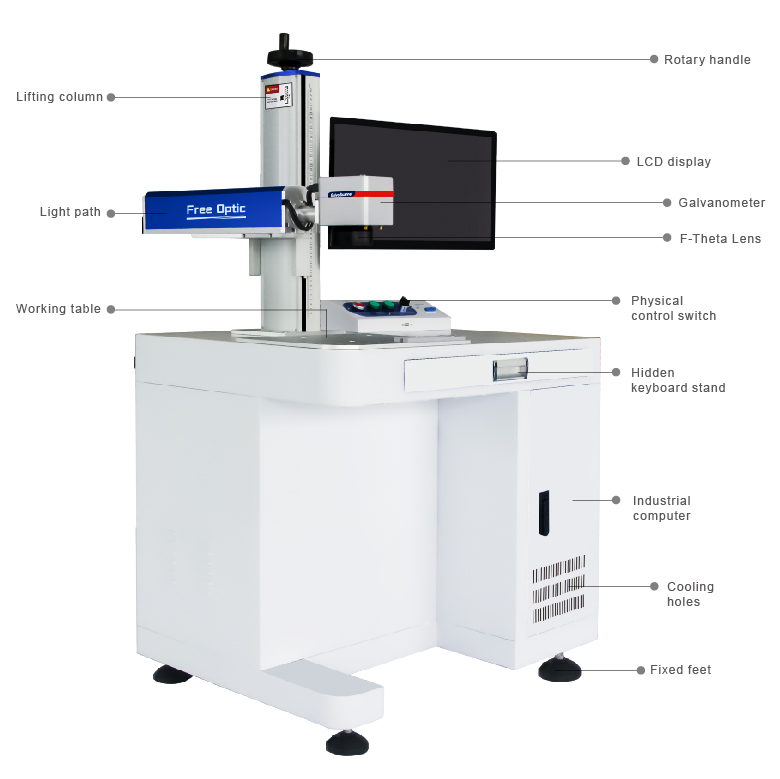

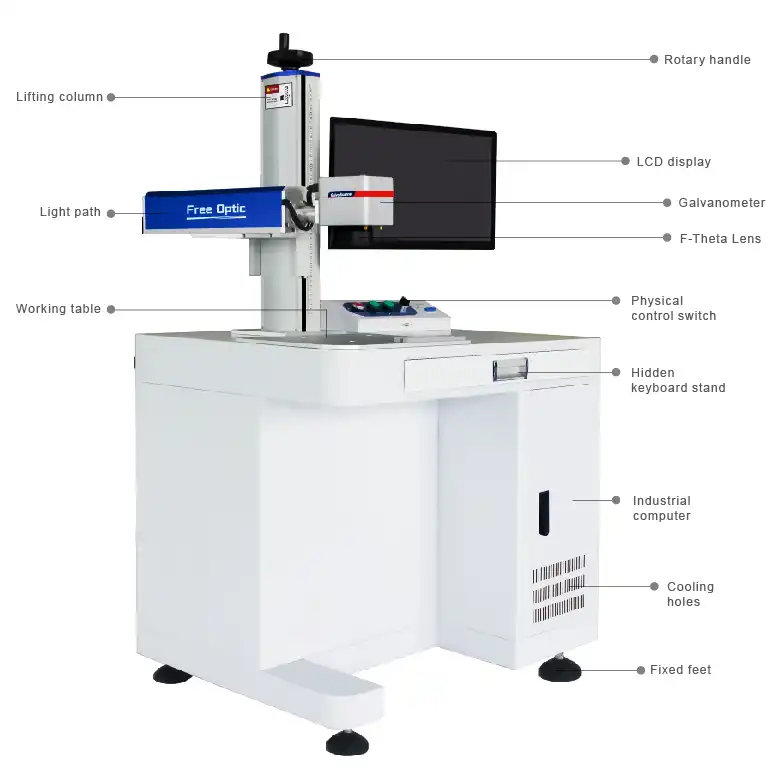

Machine Main Configuration

标准台式（白色机柜） 电动升降2.0_画板 1 副本 9

Raycus/Max/JPT laser source
Chinese top brand laser source, service life exceeds 100,000 hours

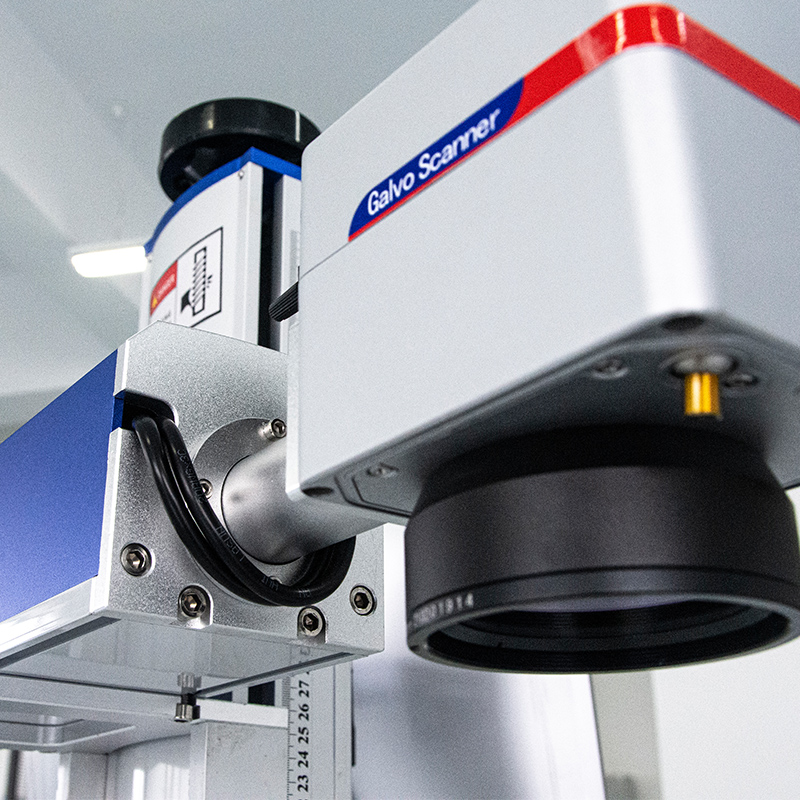

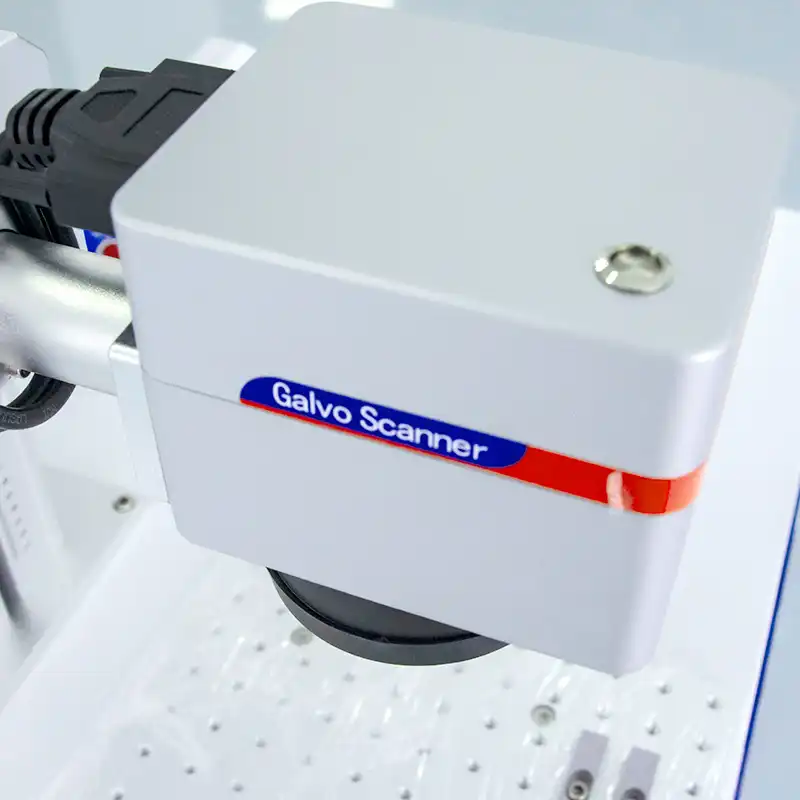

Sino-Galvo High Speed Digital Galvanometer
External dual red light helps to quickly find the focus position

细节图3
标准台式2023_画板 1 副本 7

High Transparency F-theta Lens

Lens 110x110mm, 150x150mm, 175x175mm, 200x200mm, 300x300mm

BJ JCZ Genuine Control Board

标准台式（白色机柜） 电动升降2.0_画板 1 副本 10
标准台式（白色机柜） 电动升降2.0_画板 1 副本 11

EZCAD Professional Marking Machine Software

Supports English, Turkish, Spanish, Russian, Vietnamese, German, Italian, Korean, Japanese and other languages

Supports QR code, barcode, serial number, simple graphics

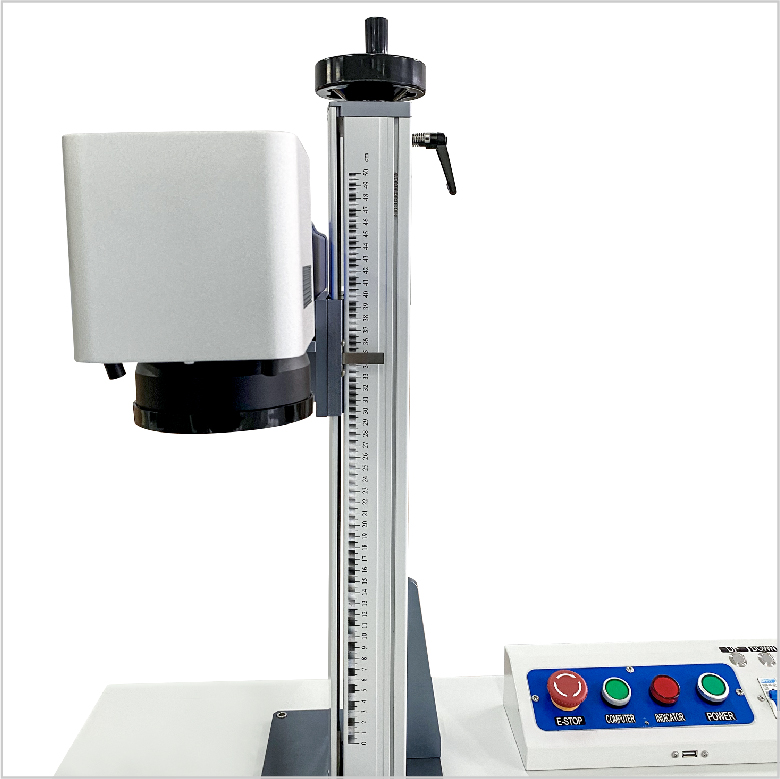

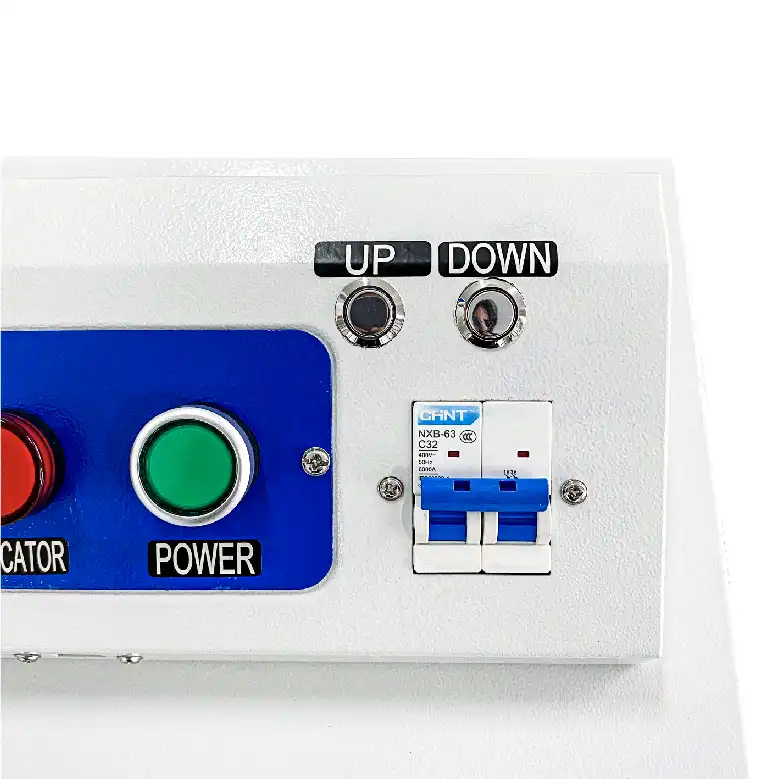

 There are up and down switches on the working table

Control the height of the column, which is convenient and quick

标准台式（白色机柜） 电动升降2.0_画板 1 副本 2
标准台式（白色机柜） 电动升降2.0_画板 1 副本 7

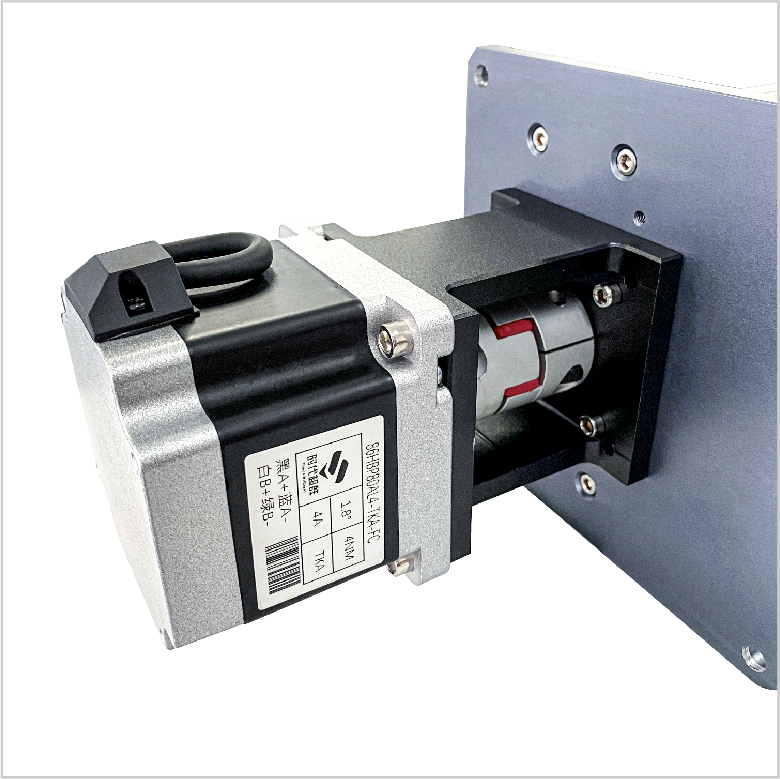

Professional Stepper Motor Drives the Column Displacement

With stable working performance and long service life

Equipped with a Strong and Smooth Screw Rod to Match the Motor

标准台式（白色机柜） 电动升降2.0_画板 1 副本 6

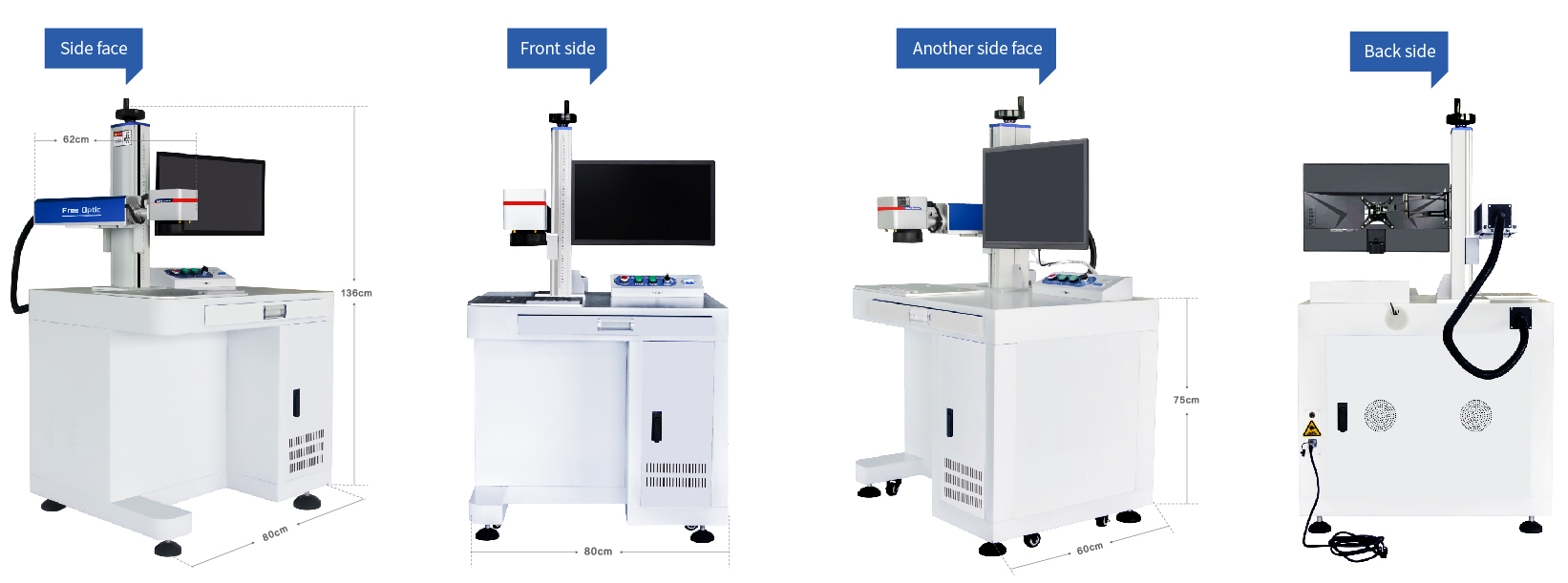

Configuration Options

手持台式2023_画板 1 副本 5

Technical Parameters

FP-50T Series Electric Lifting Desktop Fiber Laser Marking Machine Technical Parameters
1 Model FP-50T
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 50W ( 20W, 30W, 100W, 150W, 200W, 300W optional)
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)150x150mm, 175x175mm, 200x200mm, 300x300mm optional
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%， 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

Laser Marking Samples

标准台式2023_画板 1 副本
