Portable Mini Handheld 20W 30W 50W Fiber Laser Marking Machine for Sale Factory Directly Price Laser Marker Engraving

Short Description:

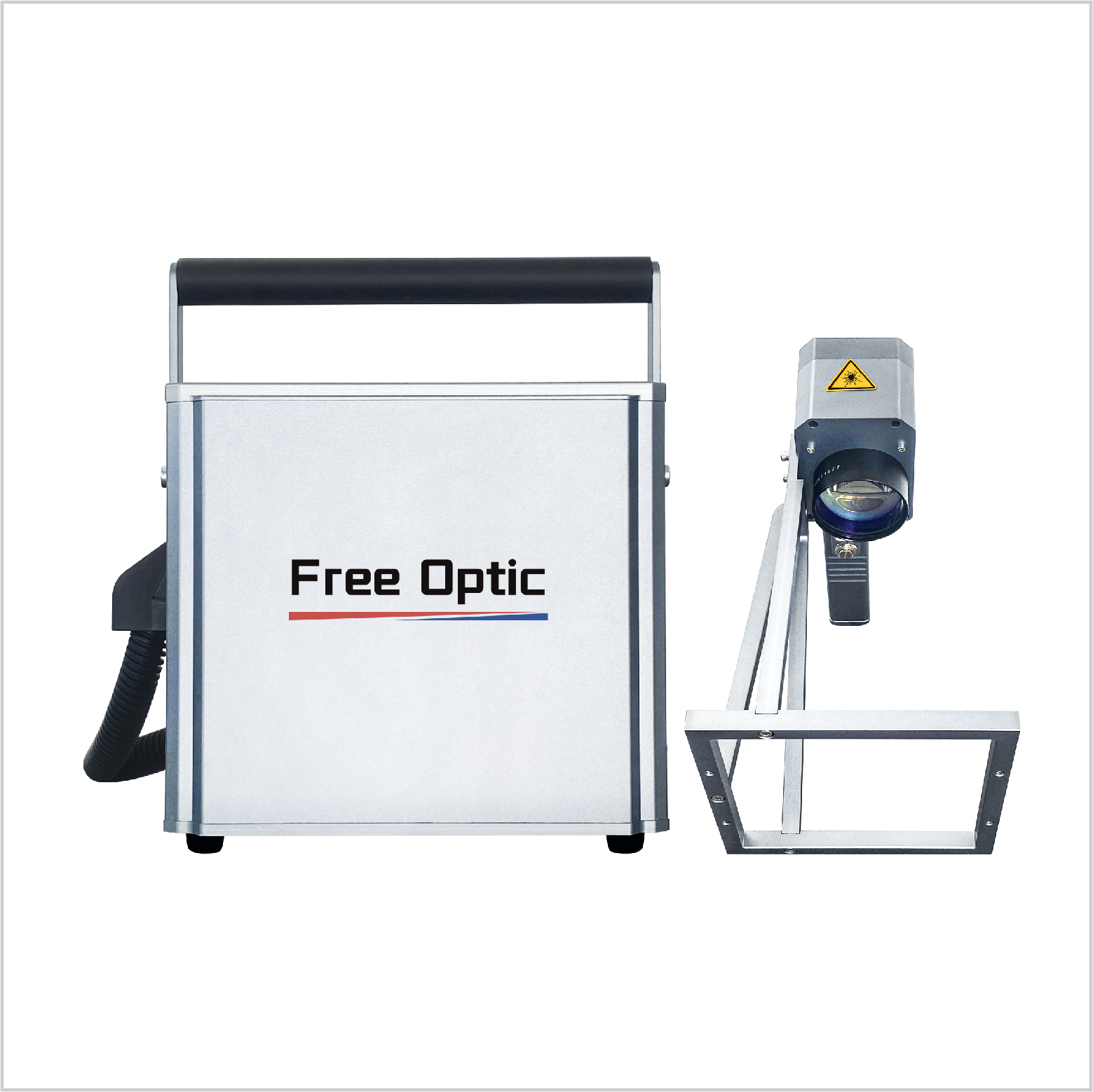

Portable Mini Handheld Fiber Laser Marking Machine

1. Laser power: 20W, 30W, 50W

2. Marking area: 120*70mm/150*150mm

3. Laser source brand: Raycus

4. Working table is optional

5. Can be equipped with synchronizer for mobile marking in pipe industry

Send email to us

Product Detail

Product Tags

Product Features

1. lt is suitable to metal, such as steel, stainless, copper, aluminum, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.

2. The machine is available at 20W, 30W, 50W power. The bigger power, the laser energy stronger, the marking speed will be faster.

You should choose bigger power when you need larger area marking or depth engraving.

3. The marking area size: 120x75mm standard & 150x150mm optional.

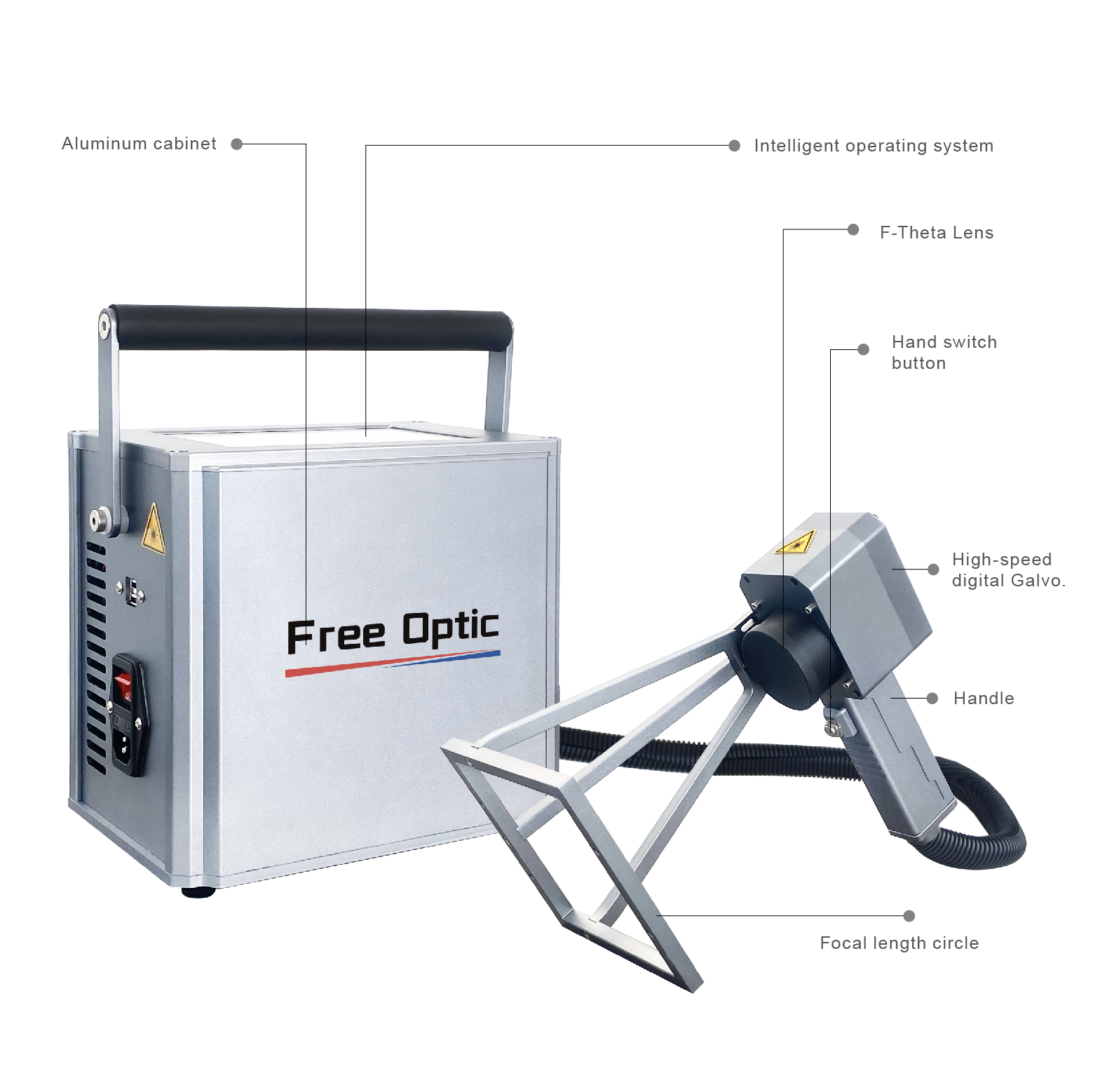

Machine Main Configuration

Raycus laser source
Chinese top brand laser source, 20W/30W/50W optional

Built-in high-speed digital galvanometer

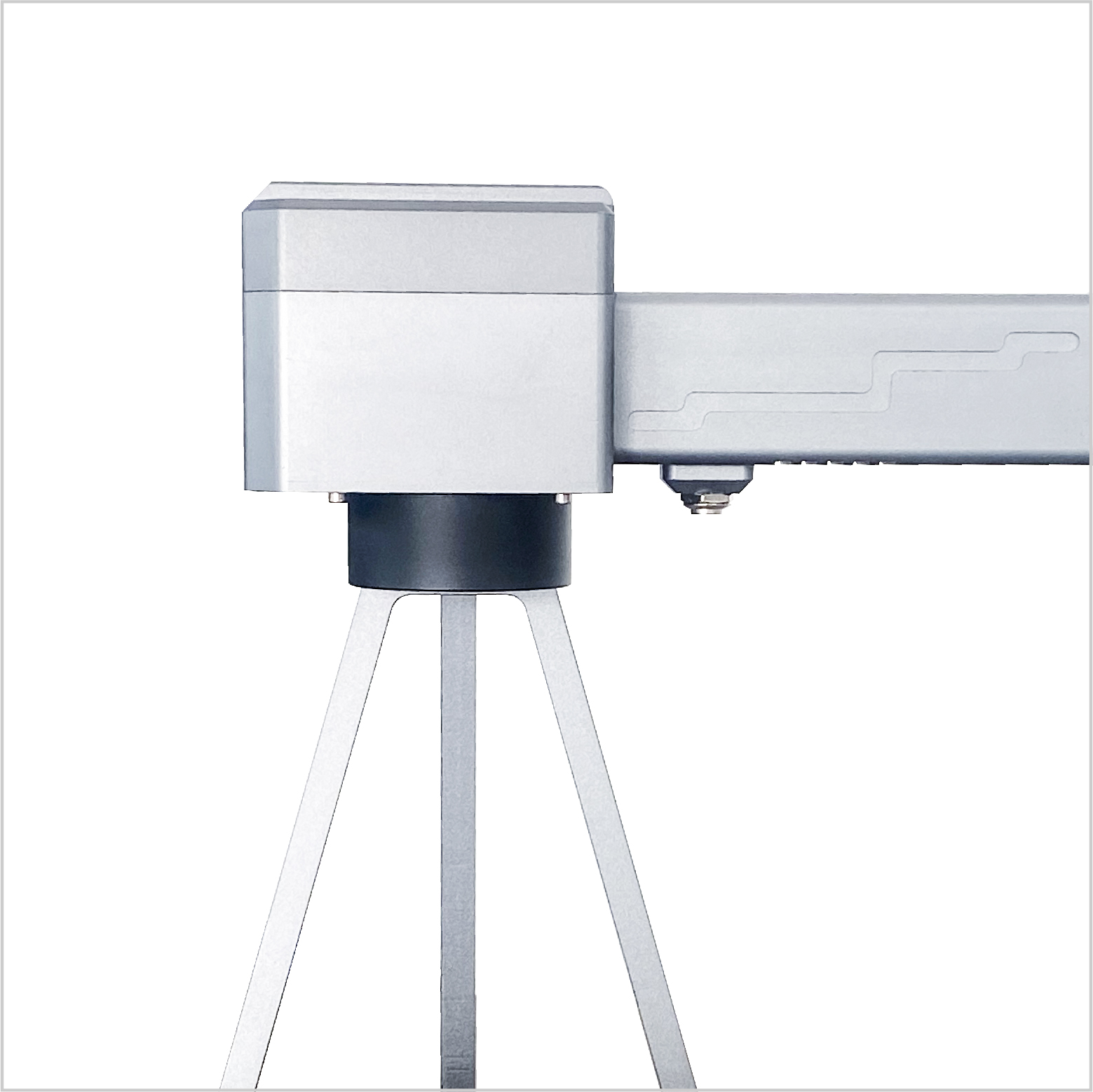

Equipped with a focal ring to accurately achieve focus positioning and marking

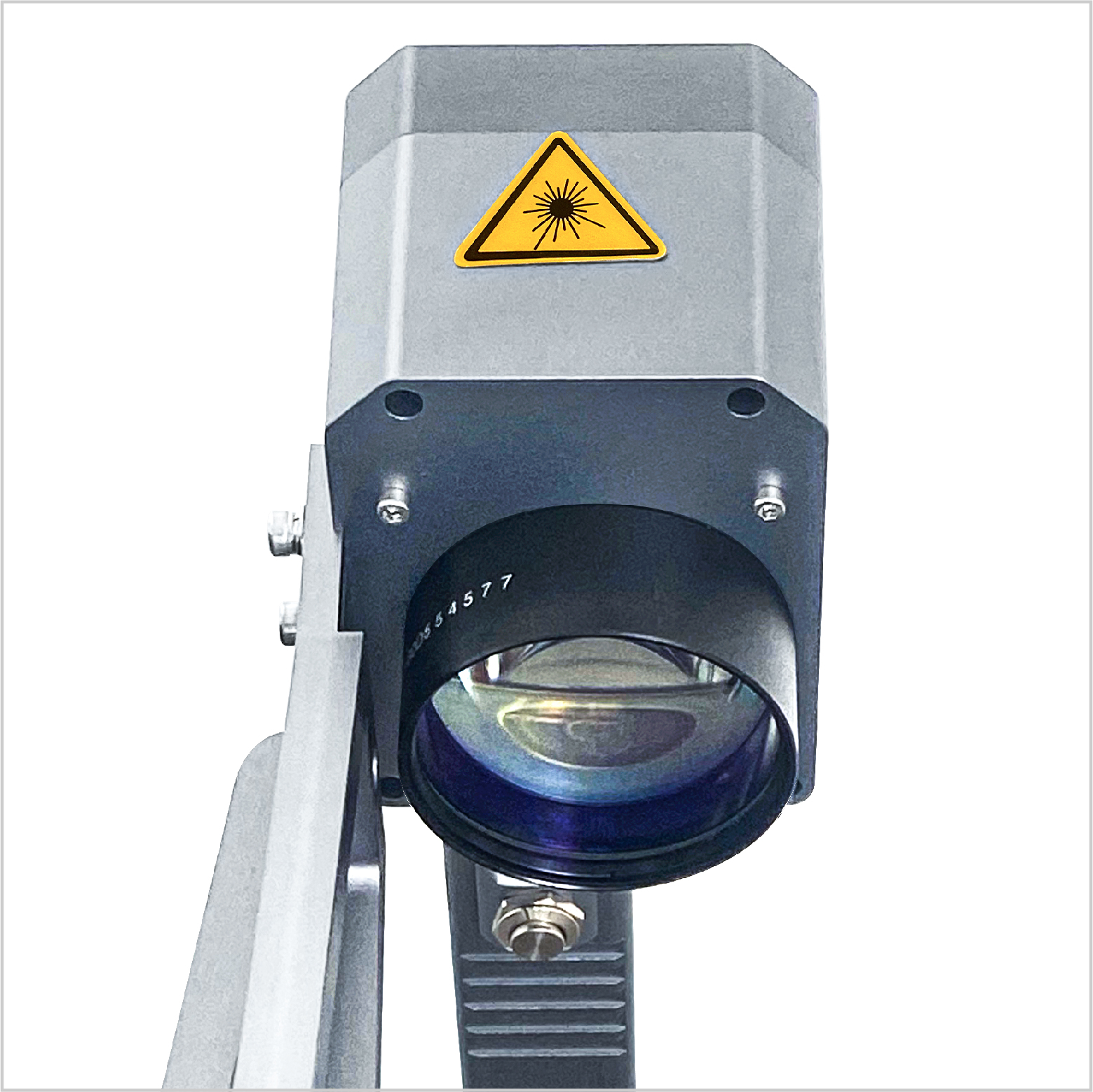

High Transparency F-theta Lens

Lens 110x110mm, 150x150mm

8-inch Built-in Touch Control Screen

Easy to operate, sensitive and fast

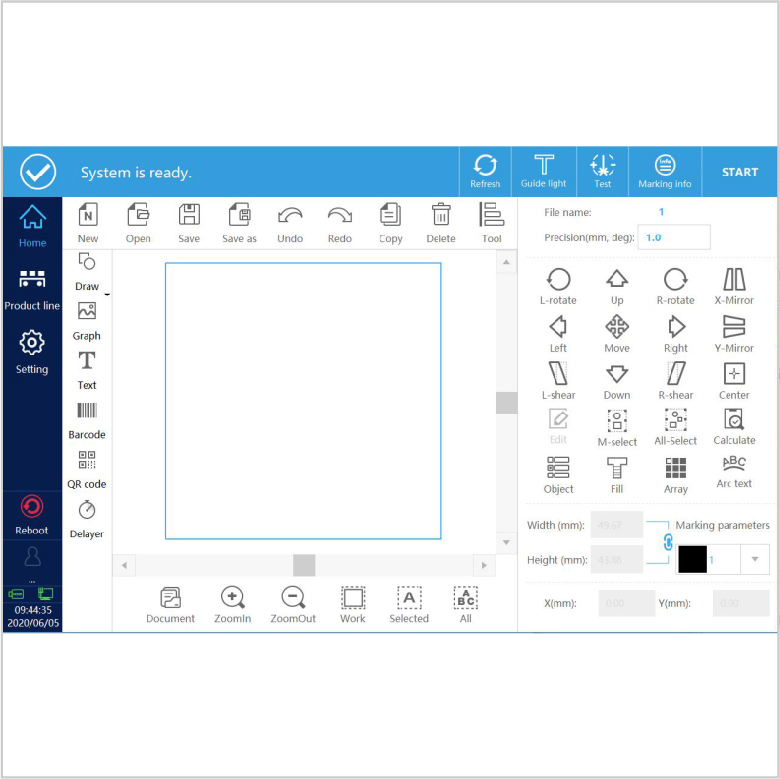

Independently Developed Control Software
Can static and flying marking
QR code, barcode, date, serial number marking
Multiple languages

Aluminum Alloy Shell, Strong and Durable

Configuration Options

Technical Parameters

FP-30XS Mini Handheld Fiber Laser Marking Machine
1	Model	FP-30XS
2	Beam quality	M': < 1.5 (TE MOO M)
3	Average output power	30W ( 20W & 50W power optional)
4	Marking speed	≥12000mm/s
5	Laser wavelength	1064nm
6	Laser repetition frequency range	30khz-100khz (adjustable)
7	Character size	0.2mmx0.2mm
8	Output spot diameter	0.017mm
9	Marking range	120x75mm (standard), 110x110mm, 150x150mm
10	Repeatability	0.01mm
11	Output fiber length	3M
12	Power adjustment range	10-100%
13	Total power	≤500W
14	Cooling system	Air cooling
15	Output power stability	0-4℃
16	Power supply	AC220V±10%， 50hz/60hz
17	File format	BMP/DXF/PLT/JPEG/HPGL
