20w 30w 50w High Speed Online Assembly Line Flying Laser Marking Engraving Printing Machine

Short Description:

Flying/online/assembly line fiber laser marking machine

1. Laser power: 20W, 30W, 50W, 100W

2. Marking area: 110*110mm/150*150mm/175*175mm/200*200mm

3. Laser source brand: Raycus/Max/JPT and etc


Product Detail

Product Tags

Product Features

飞行2023_画板 1 副本 3

1. lt is suitable to metal such as steel, iron, copper, aluminum, gold, silver, etc.；part of non-metal materials including PC, ABS, HDPE, Tires,Mirrors etc.

2.  Suitable for high speed assembly line/online work.

3.The fiber laser marking machine is equipped with sensor and encoder.

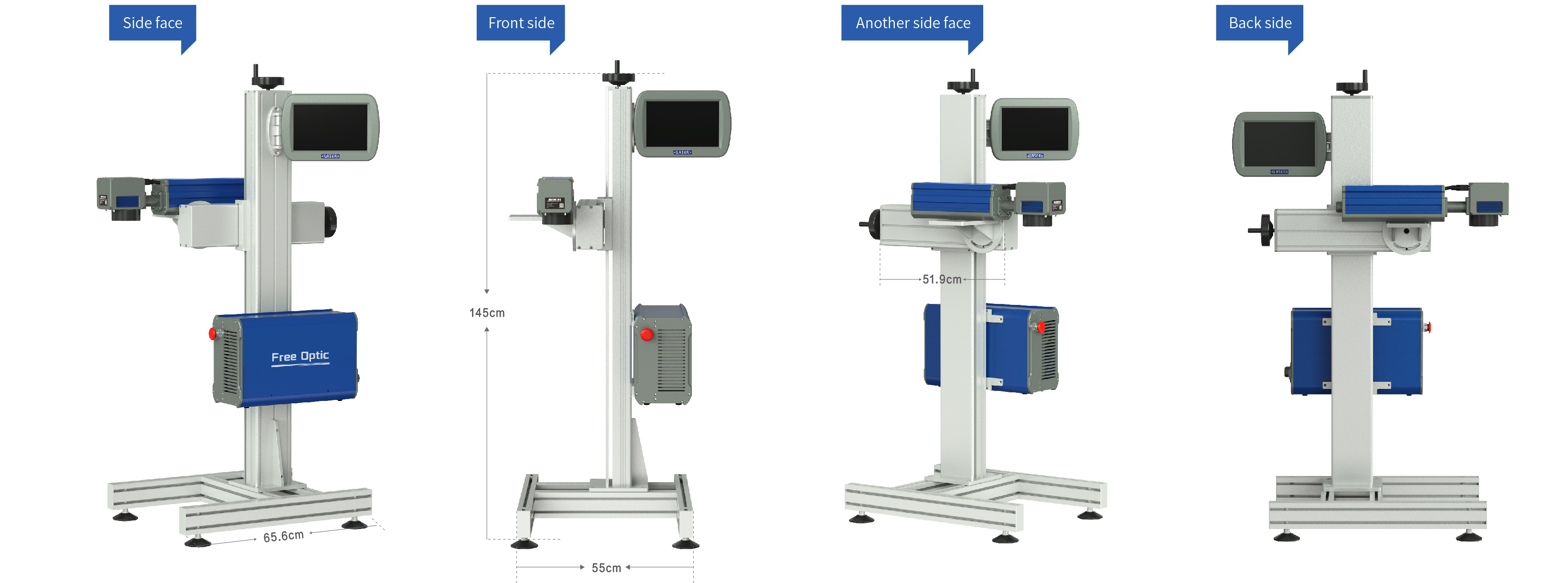

飞行2023_画板 1 副本 4

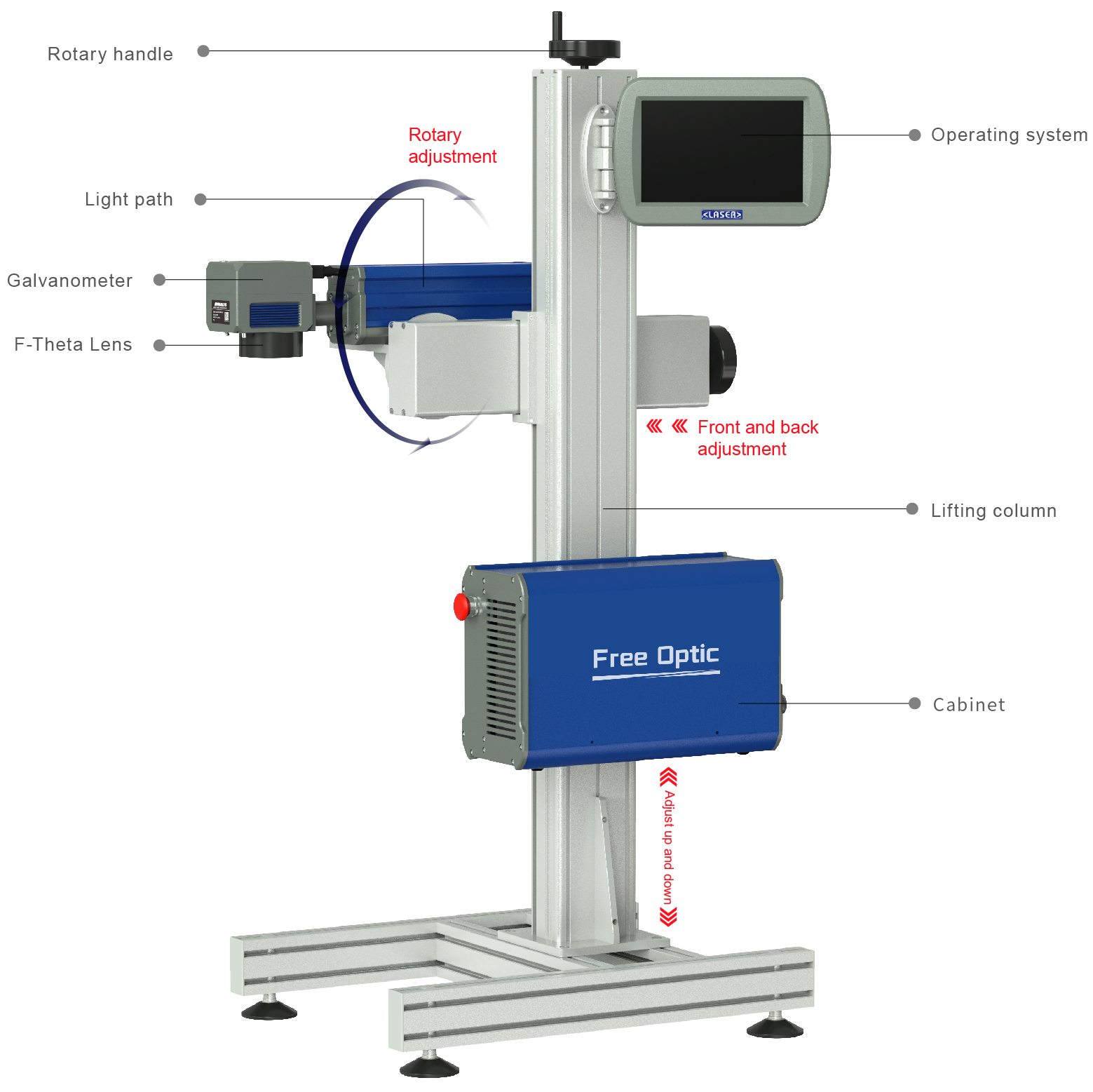

Machine Main Configuration

标准台式（白色机柜） 电动升降2.0_画板 1 副本 9

Raycus/Max laser source
Chinese top brand laser source, 20W/30W/50W/100W

Sino-Galvo High Speed Digital Galvanometer
High-speed galvanometer, matching high-speed assembly line

迷你小型桌面2023_画板 1 副本 6
标准台式2023_画板 1 副本 7

High Transparency F-theta Lens

Lens 110x110mm, 150x150mm, 175x175mm, 200x200mm

Professional Software for Assembly Line Marking
Can mark date, serial number, QR code, barcode, etc.

飞行软件
飞行触摸屏

8-inch Built-in Touch Control Screen

Easy to operate, sensitive and fast

Equipped with Encoders and Sensors

感应器和编码器
紫外飞行打标机-20231228_画板 1 副本 10

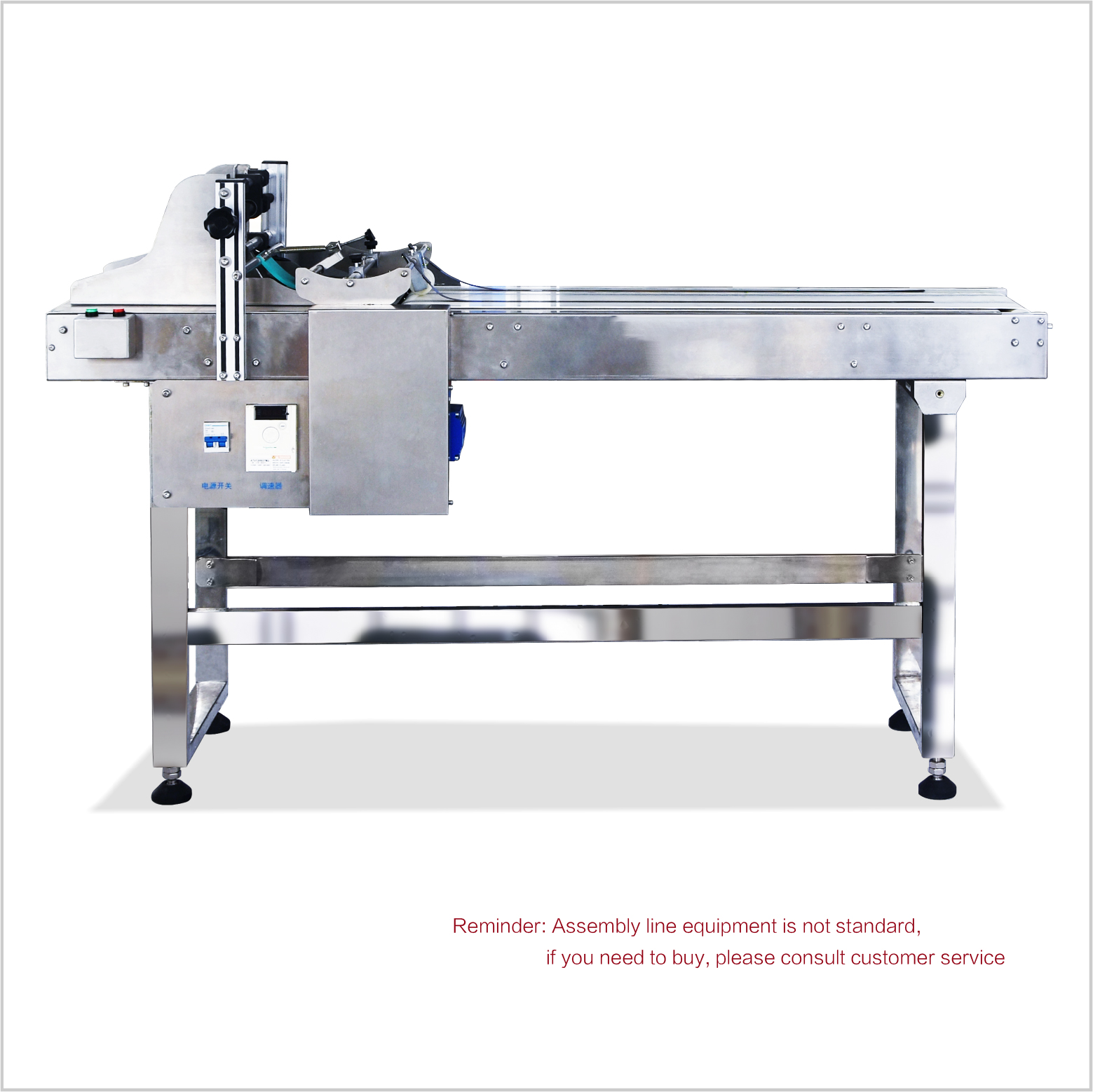

High Speed Conveyor Belt(Optional)
Match different assembly lines to realize mass production

Technical Parameters

FP-50F Flying Fiber Laser Marking Machine Technical Parameters
1 Model FP-50F
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 50W ( 20W, 30W, 100W optional)
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)150x150mm, 175x175mm, 200x200mm optional
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%， 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

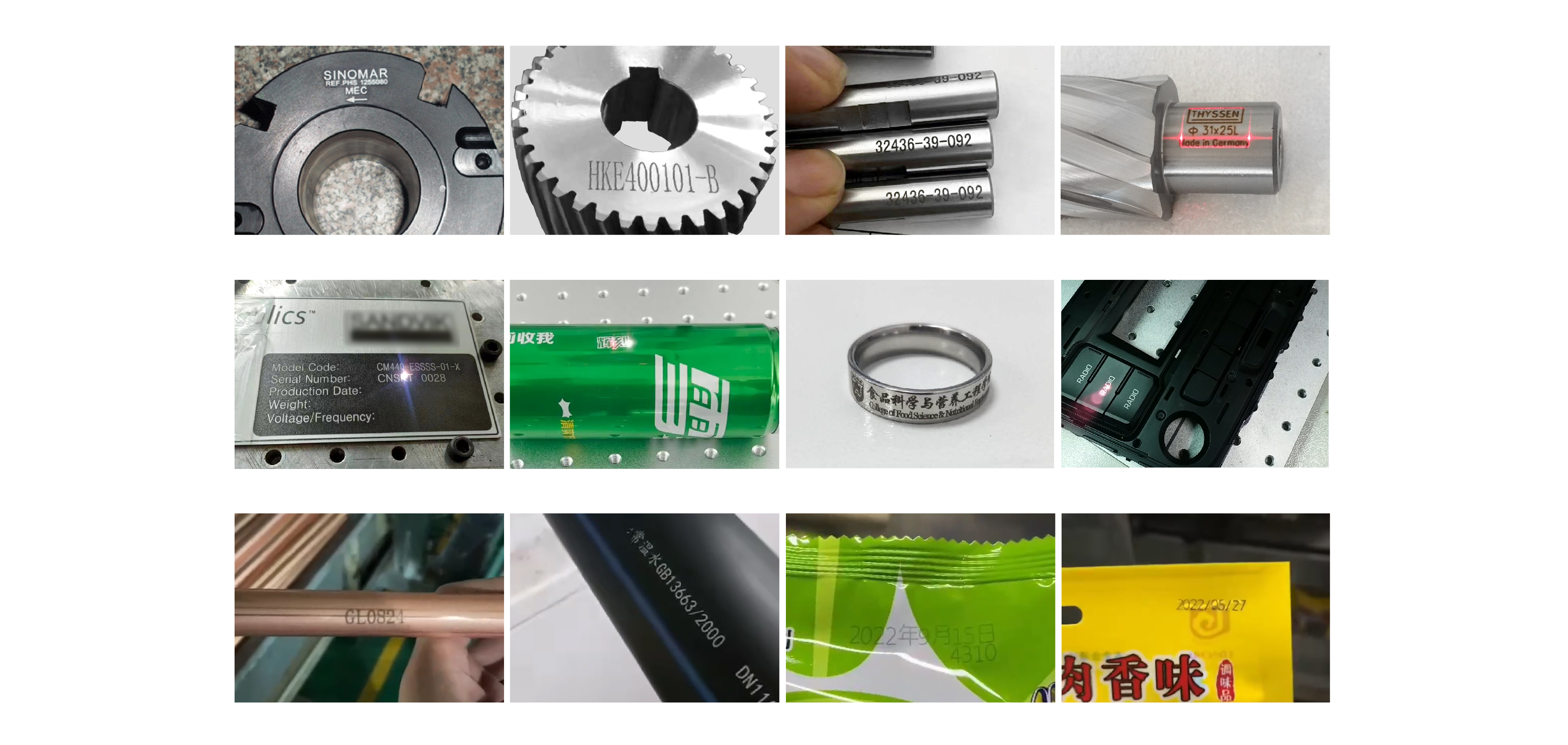

Laser Marking Samples

飞行2023_画板 1 副本
