20W 30W 50W 100W 2.5D 3D Handicrafts deep carving, relief carving Fiber Laser Marking Engraving Machine for Metal Steel

Short Description:

2.5D 3D Handicrafts Deep Carving, Relief Carving Fiber Laser Marking Engraving Machine for Metal Steel

1. Laser power: 20W, 30W, 50W, 100W, 200W

2. Marking area: 110*110mm/150*150mm/175*175mm/220*220mm

3. Laser source brand: Raycus/Max/JPT and etc

4. Optional tools: Rotary device, fixture, nameplates device and etc.


Product Detail

Product Tags

Product Features

2.5D标准台式2023_画板 1 副本 3

1. lt is suitable to metal, such as steel, stainless, copper, aluminum, gold, silver, etc. and part of non-metal materials like PVC, ABS, HDPE, tires, mirror etc.

2.  It uses 2.5D deep engraving technology, which can achieve different engraving forms such as deep engraving and positive engraving.

3. Mainly used in fields that require deep engraving, such as handicrafts and metal medallion engraving.

4. lt’s easy to operate. Get started quickly without experience.

标准台式（白色机柜） 电动升降2.0_画板 1 副本 4

Machine Main Configuration

标准台式（白色机柜） 电动升降2.0_画板 1 副本 9

Raycus/Max/JPT laser source
Chinese top brand laser source, 20W/30W/50W/100W/200W

Sino-Galvo 2.5D High Speed Digital Galvanometer
External dual red light helps to quickly find the focus position

迷你小型桌面2023_画板 1 副本 6
标准台式2023_画板 1 副本 7

High Transparency F-theta Lens

Lens 110x110mm, 150x150mm, 175x175mm, 220x220mm

BJ JCZ  DLC2-M4-2D/3D Control Board

The new architecture meets the needs of high-precision and sophisticated, and has two-dimensional and three-dimensional functions.

2.5D标准台式2023_画板 1 副本 7

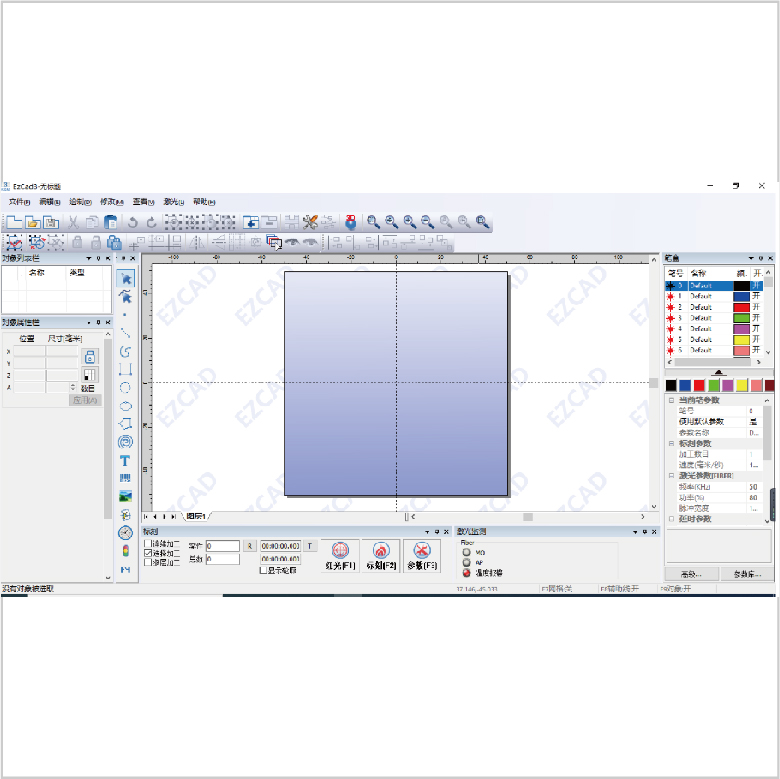

2.5D软件界面

BJ JCZ EZCAD 3 Marking Software

Both 2D and 3D functions

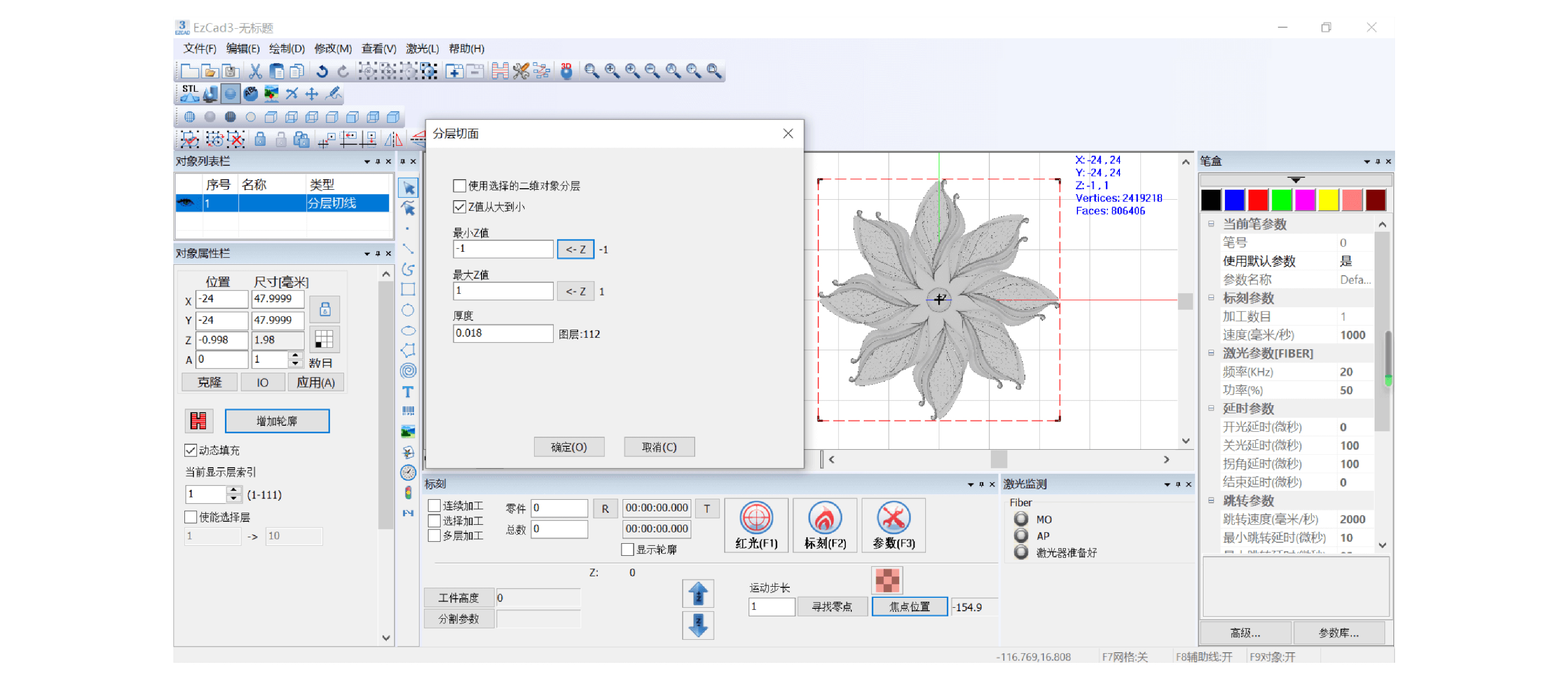

Software Interface

2.5D标准台式2023_画板 1 副本 5

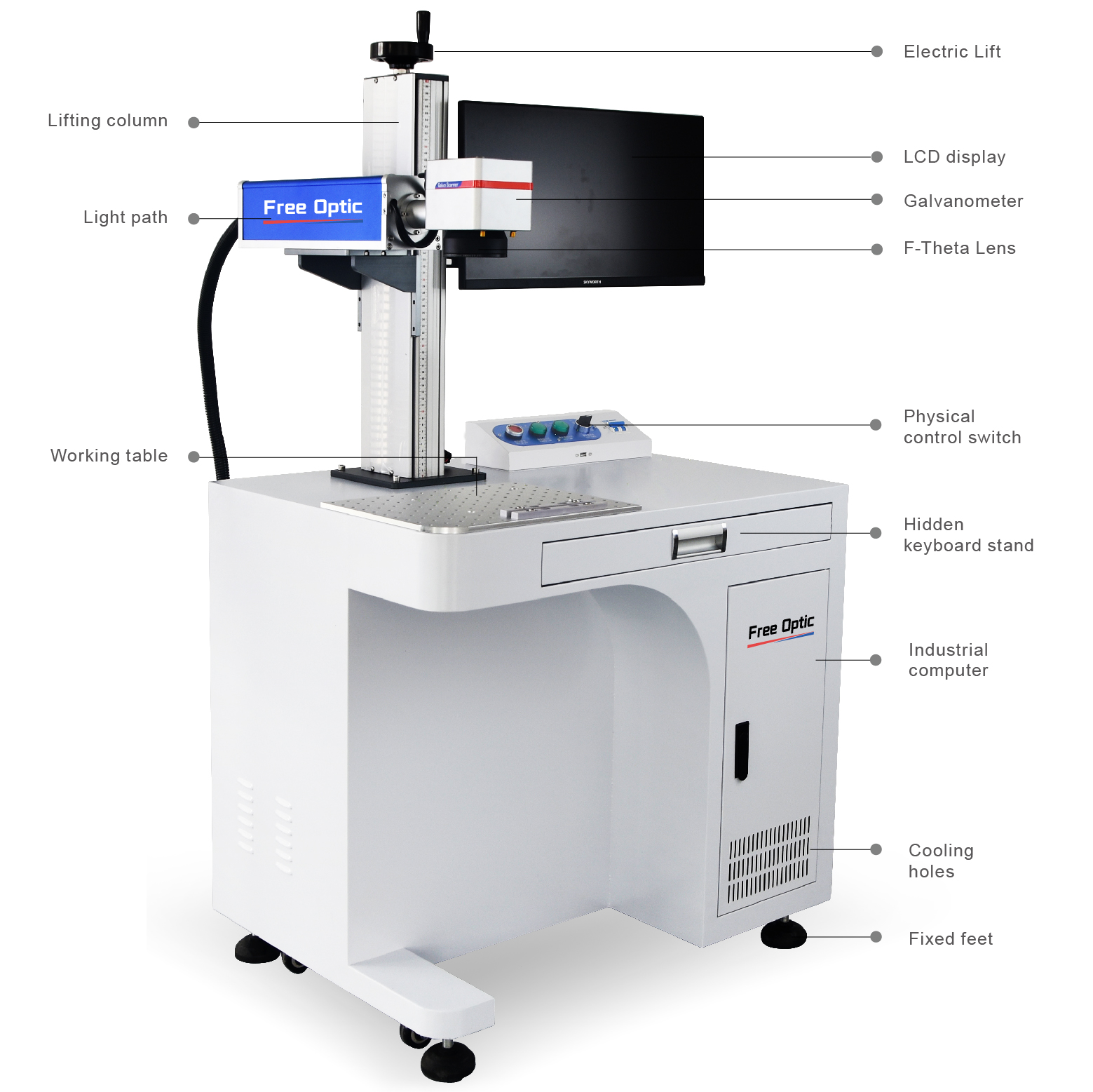

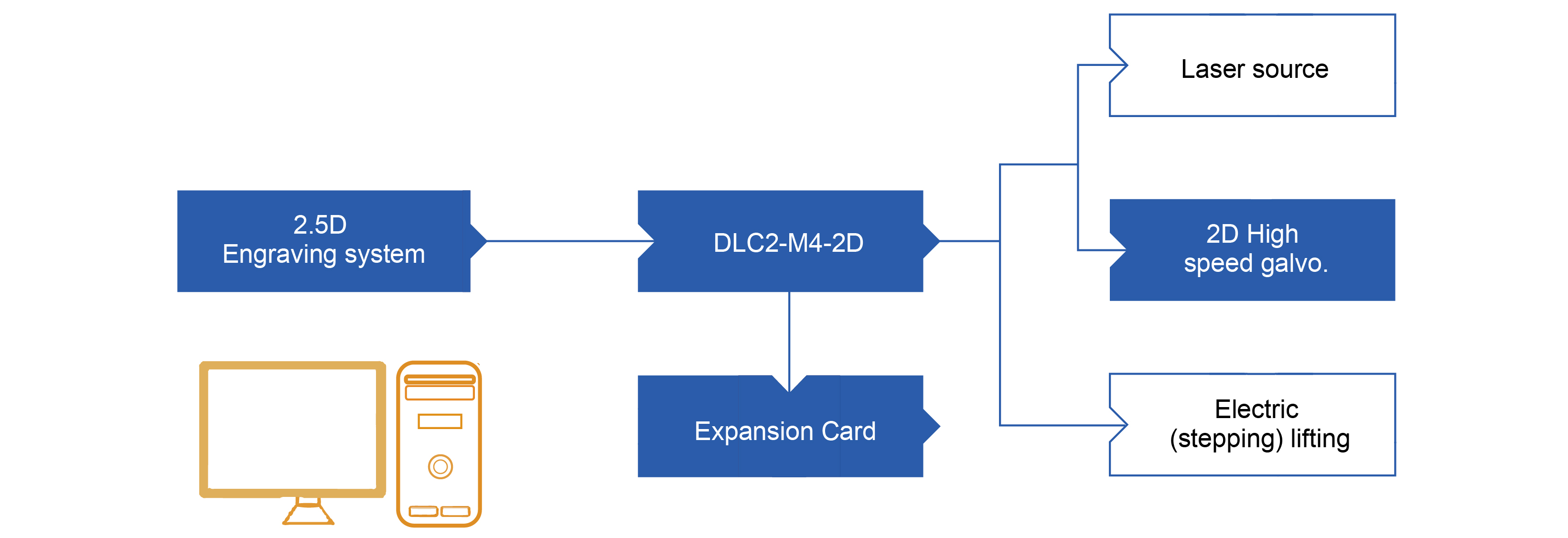

System Structure

2.5D标准台式2023_画板 1 副本 11

Configuration Options

手持台式2023_画板 1 副本 5

Technical Parameters

FP-50TD 2.5D 3D Fiber Laser Marking Machine Technical Parameters
1 Model FP-50TD
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 50W ( 20W, 30W, 100W, 200W, 300W optional)
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)150x150mm, 175x175mm,  220x220mm optional
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%， 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

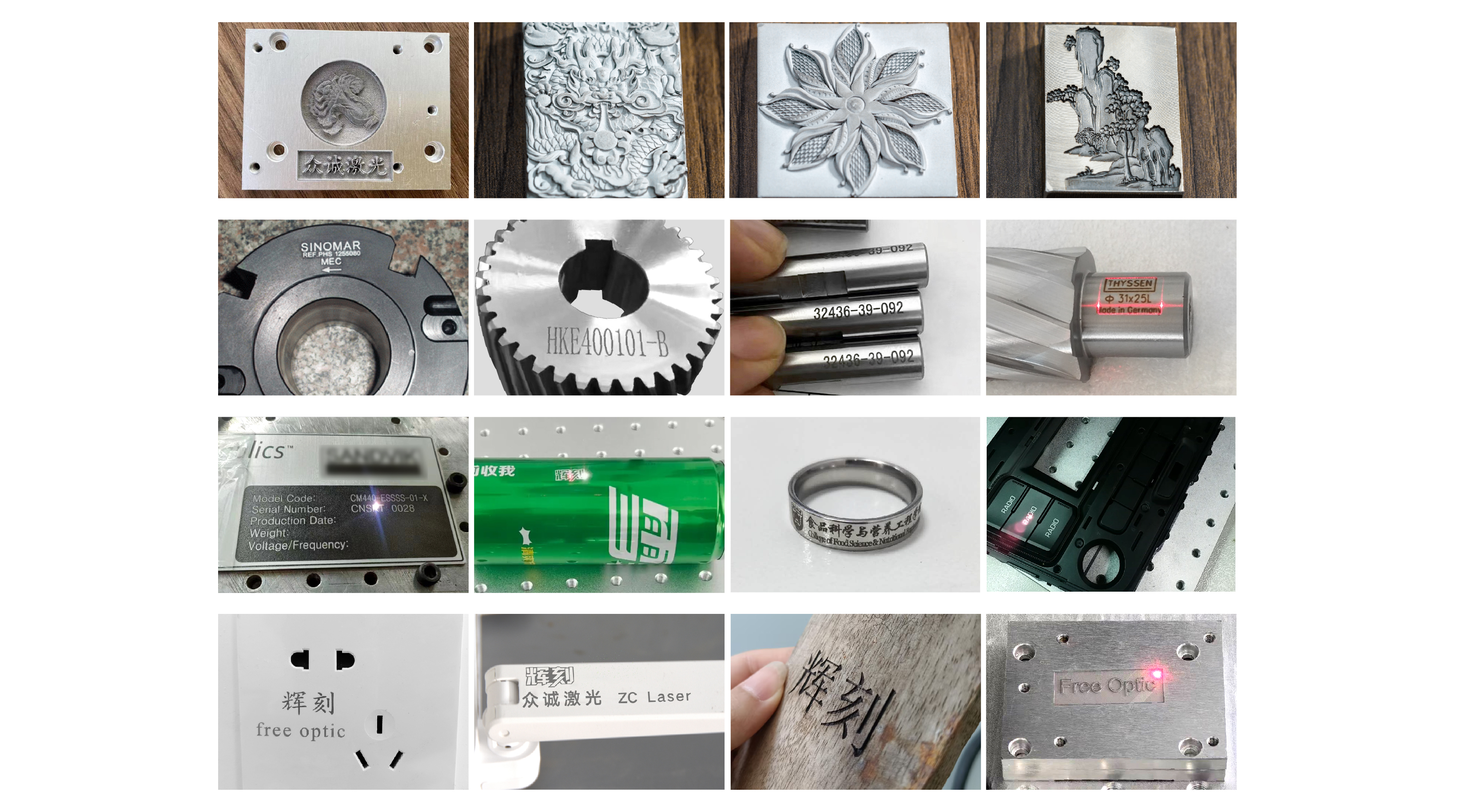

Laser Marking Samples

2.5D标准台式2023_画板 1 副本
