3W 5W 10W 15W 20W Industrial UV Laser Etchers Engraver Markers Etching Engraving UV Laser Marking Machine

Short Description:

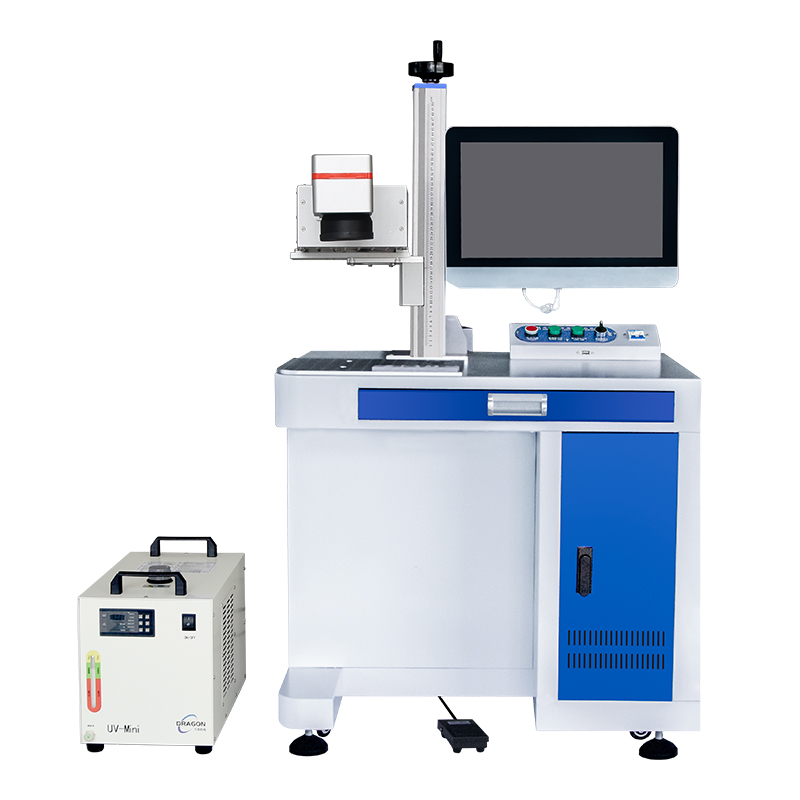

Desktop UV Laser Marking Machine 3W, 5W, 8W, 10W, 15W, 20W

1. Power: 3W, 5W, 8W, 10W, 15W, 20W

2. Marking area: 110x110mm, 150x150mm, 175x175mm, 200x200mm

3. Water cooling system, the industrial water chiller included

4. Different model types available

Send email to us

Product Detail

Product Tags

Product Features

1. It is suitable for some materials like plastic, rubber, ceramic, glass, paper, cardboard, wood, leather and etc.

2. Widely used for ultra-fine marking and engraving, and is especially suitable for application fields such as marking food and medical packaging materials, drilling micro holes, high-speed dividing of glass materials, and complex pattern cutting of silicon wafers.

3. The machine can import files to mark, also can mark barcode, QR code, serial number, production date and etc.

Machine Main Configuration

Maiman UV Laser Source,

China made first-grade brand UV laser source

3W, 5W, 8W, 10W, 15W, 20W

Water cooling system, industrial water chiller included.

High-speed Digital Galvanometer with Dual Red Lights

Making finding focus easier and marking speed more efficient and precise

High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

BJ JCZ Genuine Control Board

EZCAD Professional Marking Machine Software

Supports English, Turkish, Spanish, Russian, Vietnamese, German, Italian, Korean, Japanese and other languages

Supports QR code, barcode, serial number, simple graphics

Equipped with a Professional Industrial-grade Water Chiller

Control the working temperature

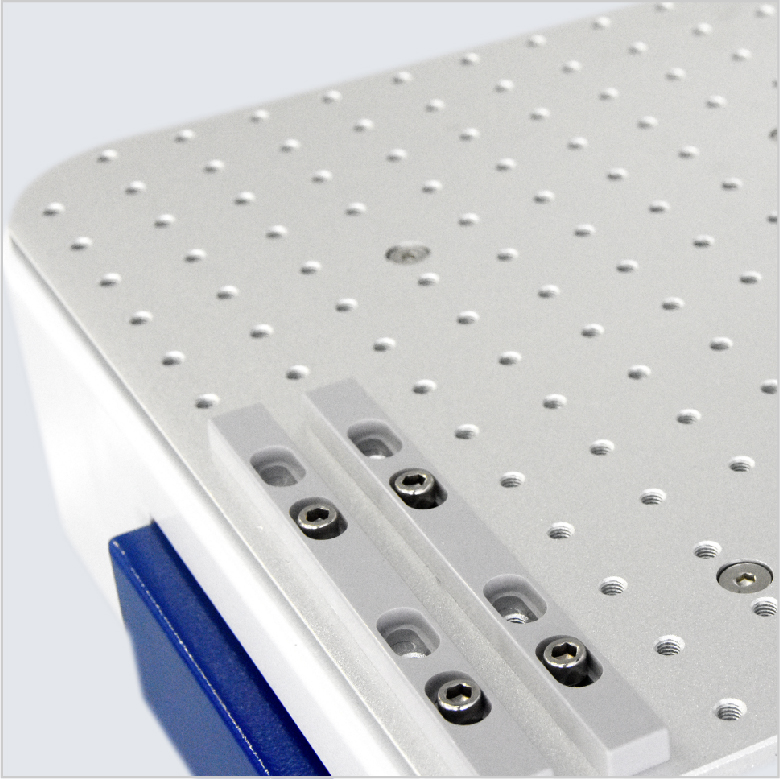

Anodized Aluminum Working Table
Full anodized aluminum technology, fine polishing, stable work, craftmanufacturing

Configuration Options

Technical Parameters

FP-5T UV Laser Marking Machine Technical Parameters
1	Model	FP-5T
2	Beam quality	TEMoo,M2<1.3
3	Average output power	3W@30kHz >5W@30kHz >8W@40kHz >10W@40kHz >15W@40kHz
4	Marking speed	≤12000mm/s
5	Wavelength	355nm±1nm
6	aser repetition frequency range	20khz-500khz (adjustable)
7	Single pusle energy	～100uj@30kHz ~160uJ@30kHz ~200uJ@40kHz ~250uJ@40kHz ~300uJ@40kHz
8	Output spot diameter	0.017mm
9	Marking range	110x110mm (standard and optional）
10	Repeatability	0.01mm
11	Pulse width(ns)	~15ns@30kHz/40kHz
12	Power adjustment range	10%-100%
13	Total Power	≤500W
14	Cooling system	Water cooling
15	Pulse stability	<3% rms
16	Equipment operating temperature	0℃-40℃
17	Power requirements	AC220V土10%，50HZ/60HZ
18	File Format	BMP/DXF/PLT/JPEG/HPGL
