3W 5W 8W 10W 15W 20W Industrial Flying UV Laser Etching Engraving Marking Machine for assembly line

Short Description:

Flying UV Laser Marking Machine 3W, 5W, 8W, 10W, 15W, 20W

1. Power: 3W, 5W, 8W, 10W, 15W, 20W

2. Marking area: 110x110mm, 150x150mm, 175x175mm, 200x200mm

3. Water cooling system, the industrial water chiller included

4. Different model types available


Product Detail

Product Tags

Product Features

紫外飞行打标机-20231228_画板 1 副本 3

1. It is suitable for some materials like plastic, rubber, ceramic, glass, paper, cardboard, wood, leather and etc.

2. Widely used for ultra-fine marking and engraving, and is especially suitable for application fields such as marking food and medical packaging materials, drilling micro holes, high-speed dividing of glass materials, and complex pattern cutting of silicon wafers.

3. The machine can import files to mark, also can mark barcode, QR code, serial number, production date and etc.

紫外飞行打标机-20231228_画板 1 副本 4

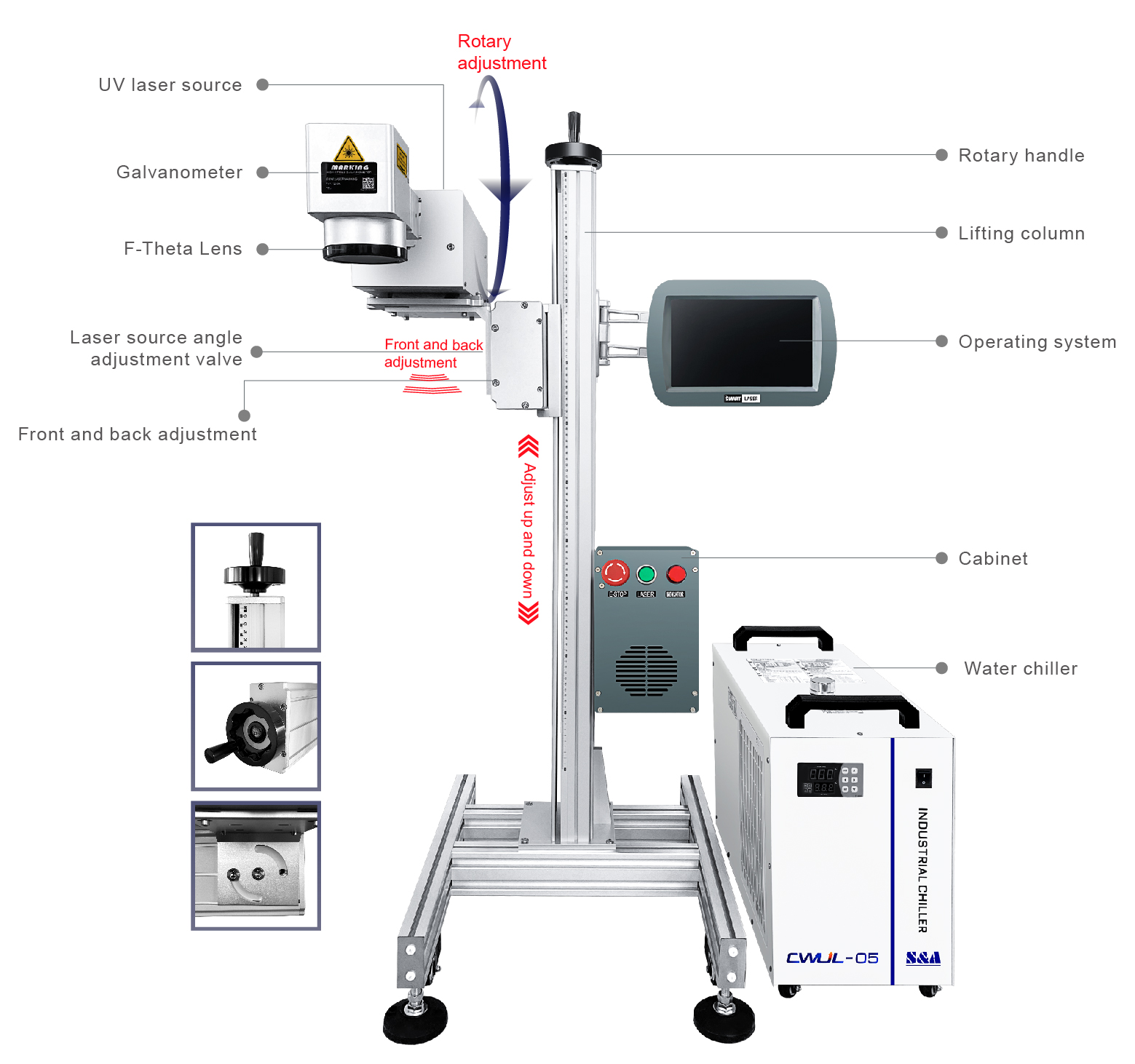

Machine Main Configuration

桌面式2013_画板 1 副本 2

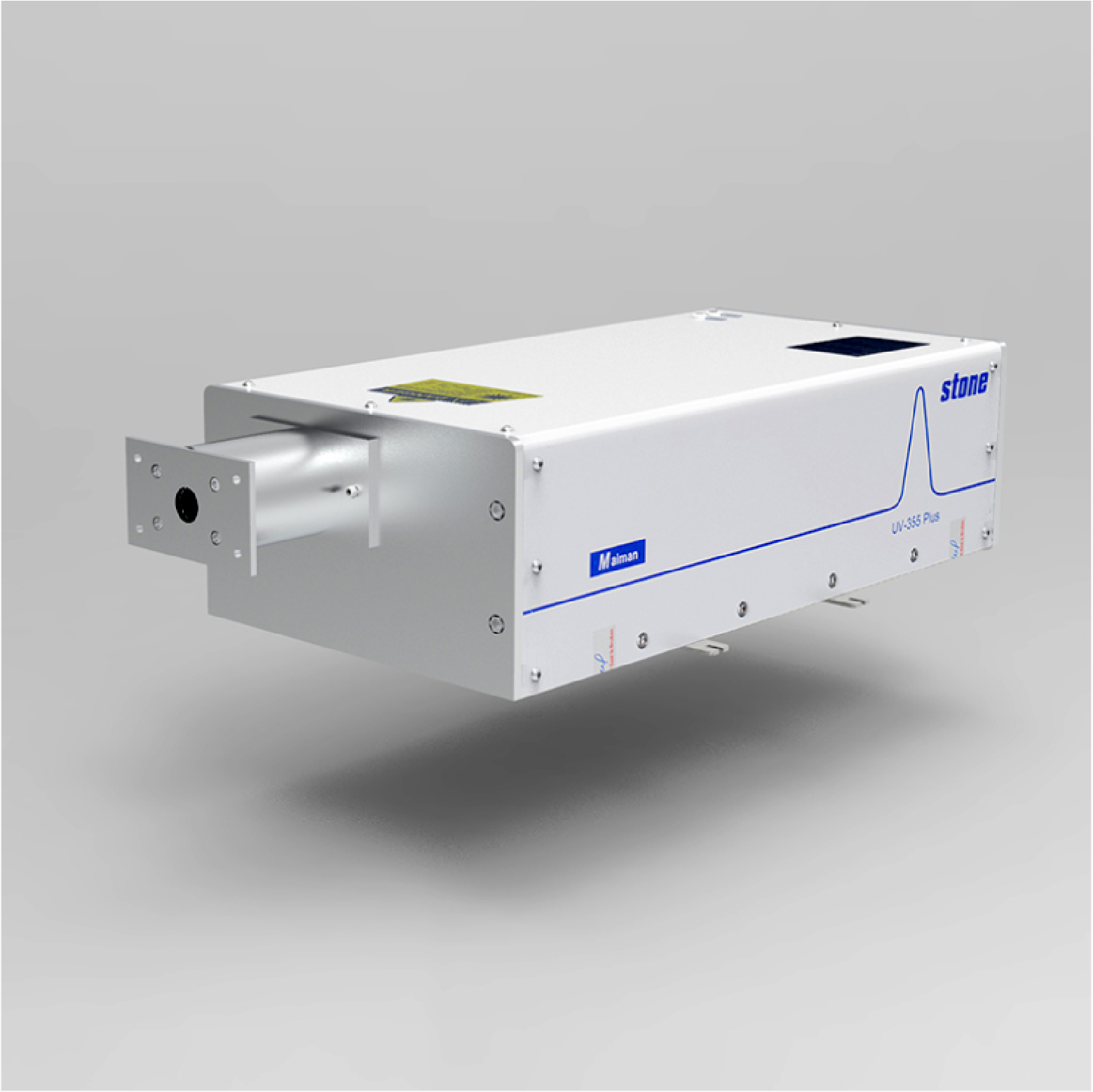

Maiman UV Laser Source,

China made first-grade brand UV laser source

3W, 5W, 8W, 10W, 15W, 20W

Water cooling system, industrial water chiller included.

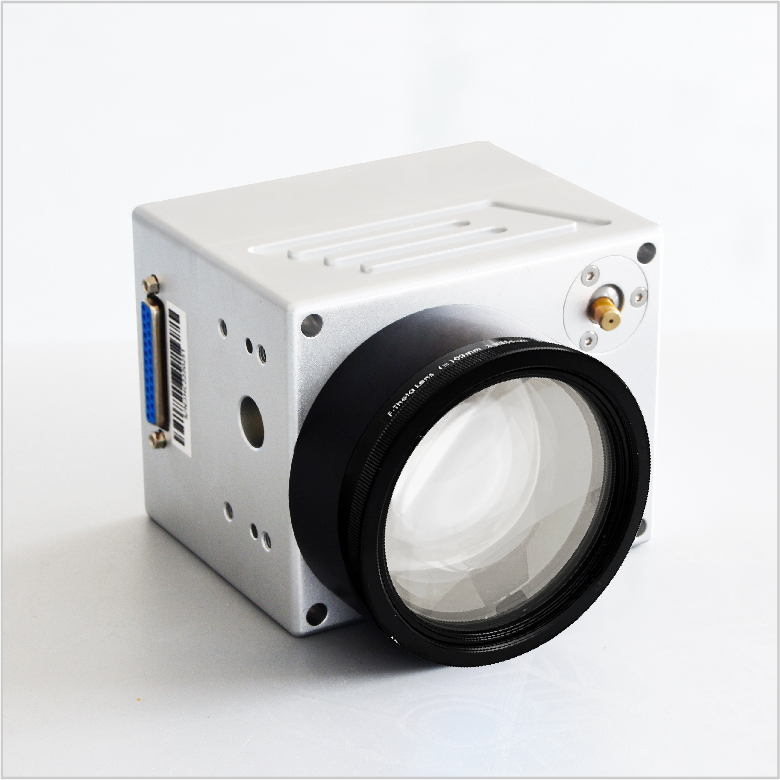

High-speed Digital Galvanometer with Dual Red Lights

Making finding focus easier and marking speed more efficient and precise

紫外标准台式激光打标机20231228_画板 1 副本 3
紫外标准台式激光打标机20231228_画板 1 副本 7

 High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

Professional Software for Assembly Line Marking
Can mark date, serial number, QR code, barcode, etc.

飞行软件
飞行触摸屏

8-inch Built-in Touch Control Screen

Easy to operate, sensitive and fast

Equipped with Encoders and Sensors

感应器和编码器
细节22

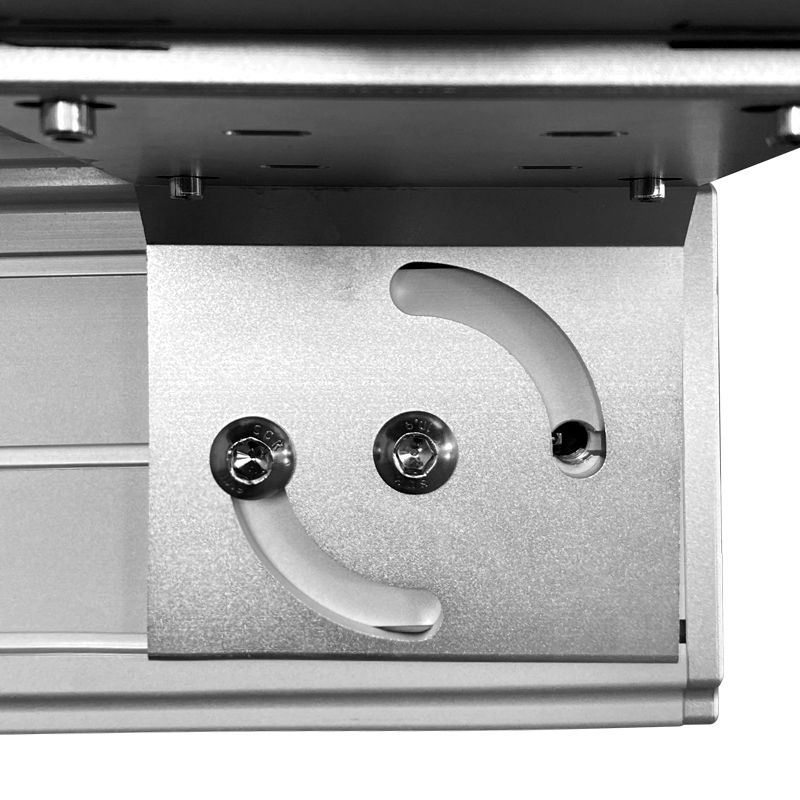

The laser head angle can be adjusted arbitrarily according to the marking position of the assembly line

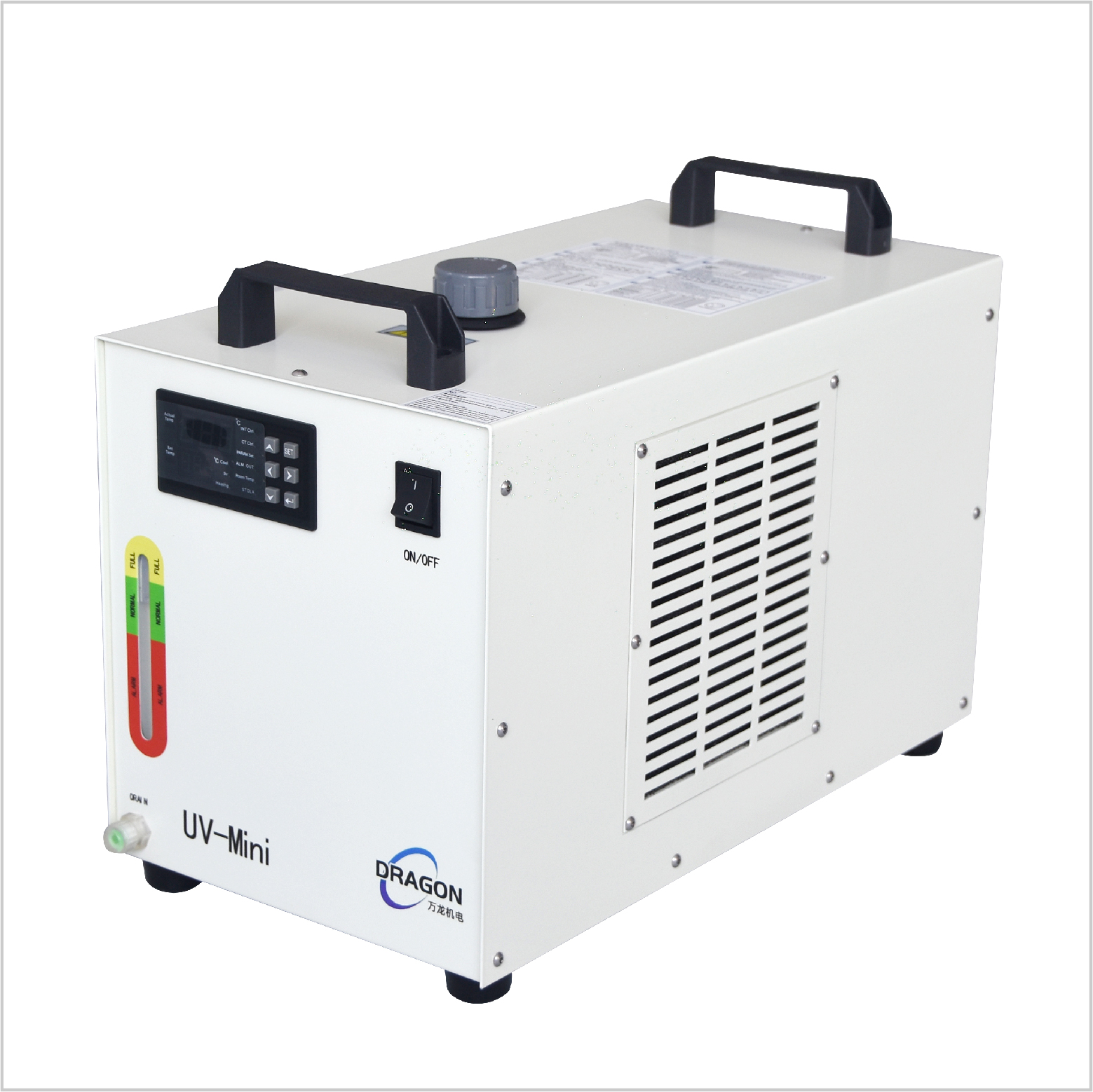

Equipped with a Professional Industrial-grade Water Chiller

Control the working temperature

大包围2013_画板 1 副本 9

Technical Parameters

FP-5F UV  Laser Marking Machine Technical Parameters
1 Model FP-5F
2 Beam quality TEMoo,M2<1.3
3 Average output power 3W@30kHz  >5W@30kHz  >8W@40kHz  >10W@40kHz  >15W@40kHz
4 Marking speed  ≤12000mm/s
5 Wavelength 355nm±1nm
6 aser repetition frequency range 20khz-500khz (adjustable)
7 Single pusle energy ～100uj@30kHz ~160uJ@30kHz ~200uJ@40kHz ~250uJ@40kHz ~300uJ@40kHz
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard and optional）
10 Repeatability 0.01mm
11 Pulse width(ns) ~15ns@30kHz/40kHz
12 Power adjustment range 10%-100%
13 Total Power  ≤500W
14 Cooling system Water cooling
15 Pulse stability <3% rms
16 Equipment operating temperature 0℃-40℃
17 Power requirements AC220V土10%，50HZ/60HZ
18 File Format BMP/DXF/PLT/JPEG/HPGL

UV Laser Marking Samples

紫外标准台式激光打标机20231228_画板 1 副本
