3W 5W 8W 10W Industrial Etching Engraving Desktop Integrated Small Size UV Laser Marking Machine

Short Description:

3W 5W 10W Industrial UV Laser Marking Machine

1. Power: 3W, 5W, 8W, 10W

2. Marking area: 110x110mm, 150x150mm

3. Water cooling system, the industrial water chiller included

4. Different model types available


Product Detail

Product Tags

Product Features

桌面式2013_画板 1 副本 3

1. It is suitable for some materials like plastic, rubber, ceramic, glass, paper, cardboard, wood, leather and etc.

2. Widely used for ultra-fine marking and engraving, and is especially suitable for application fields such as marking food and medical packaging materials, drilling micro holes, high-speed dividing of glass materials, and complex pattern cutting of silicon wafers.

3. The machine can import files to mark, also can mark barcode, QR code, serial number, production date and etc.

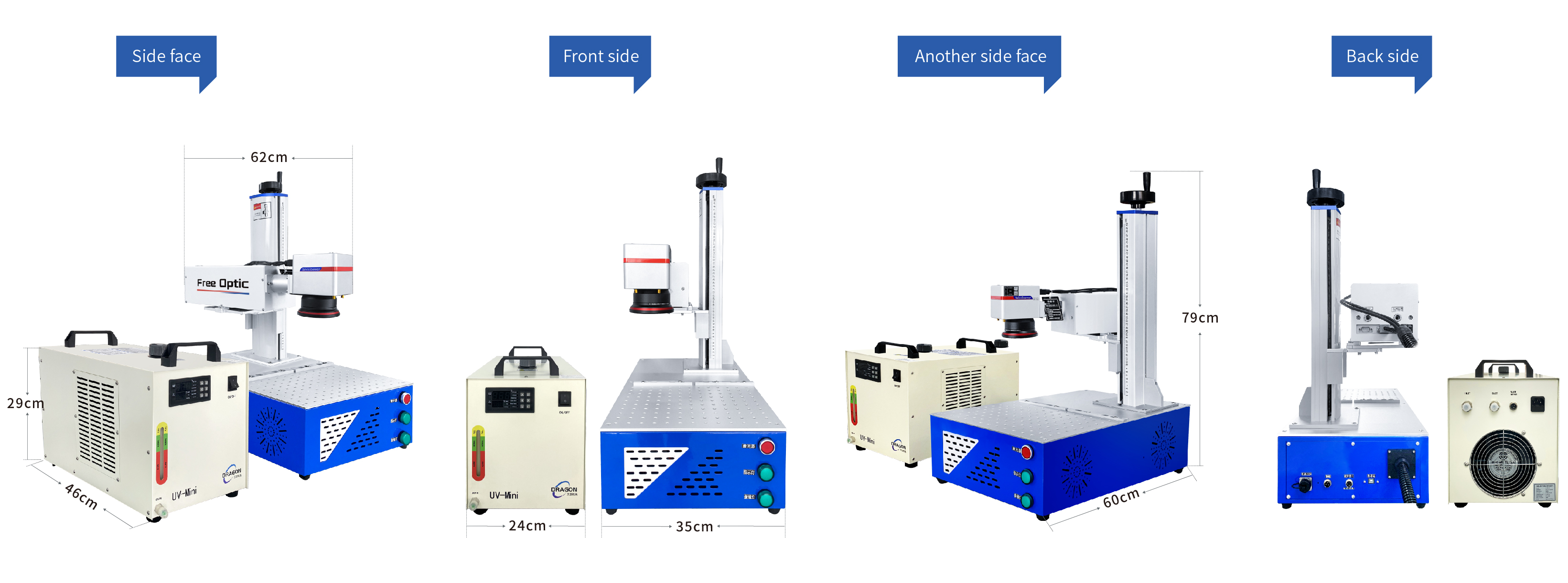

4. Small volume, easy to transport and carry.

桌面式2013_画板 1 副本 4

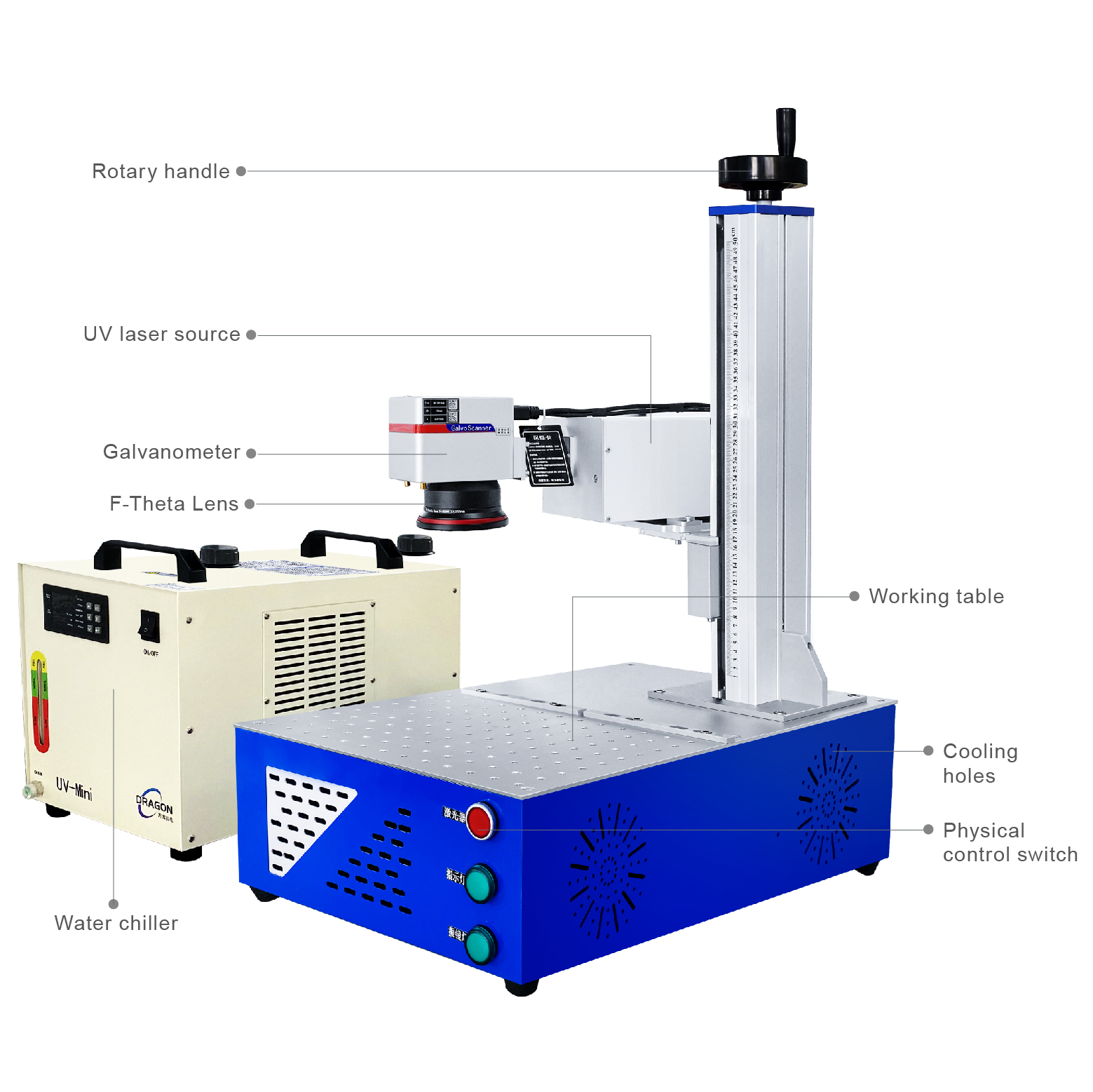

Machine Main Configuration

桌面式2013_画板 1 副本 2

Maiman UV Laser Source,

China made first-grade brand UV laser source

3W, 5W, 8W, 10W, 15W, 20W

Water cooling system, industrial water chiller included.

High-speed Digital Galvanometer with Dual Red Lights

Making finding focus easier and marking speed more efficient and precise

紫外标准台式激光打标机20231228_画板 1 副本 3
紫外标准台式激光打标机20231228_画板 1 副本 7

 High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

BJ JCZ Genuine Control Board

标准台式（白色机柜） 电动升降2.0_画板 1 副本 10
标准台式（白色机柜） 电动升降2.0_画板 1 副本 11

EZCAD Professional Marking Machine Software

Supports English, Turkish, Spanish, Russian, Vietnamese, German, Italian, Korean, Japanese and other languages

Supports QR code, barcode, serial number, simple graphics

Equipped with a Professional Industrial-grade Water Chiller

Control the working temperature

大包围2013_画板 1 副本 9

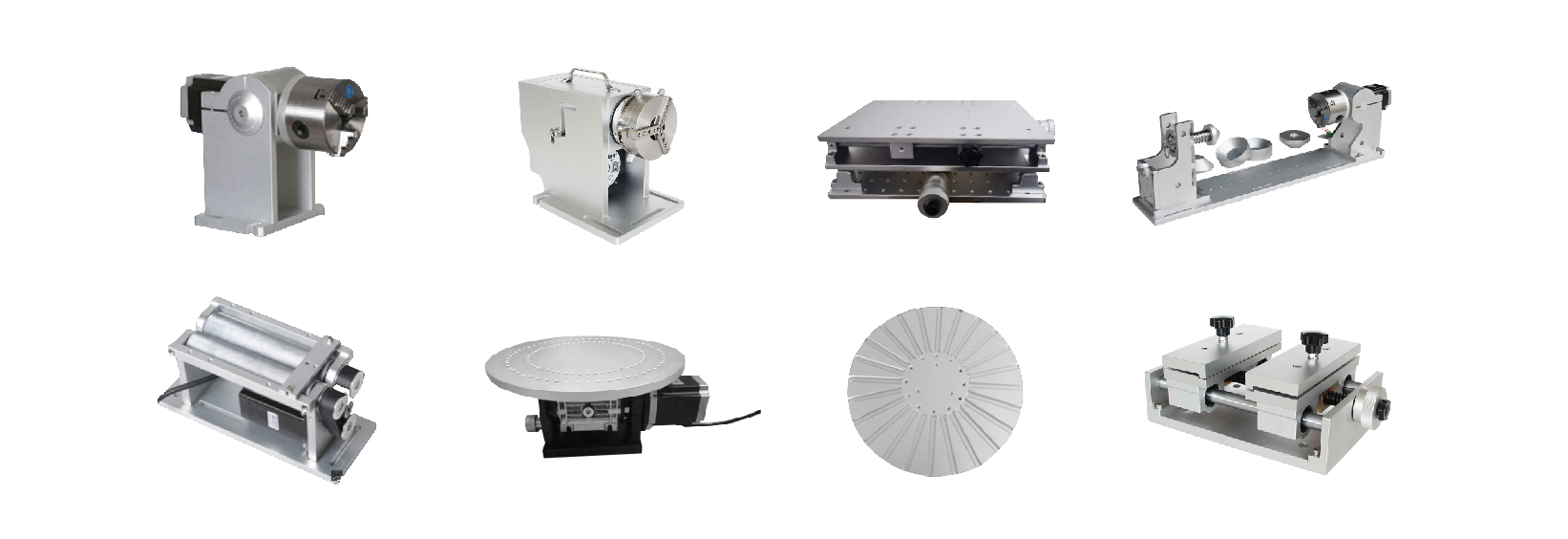

Configuration Options

紫外标准台式激光打标机20231228_画板 1 副本 5

Technical Parameters

FP-5Z UV  Laser Marking Machine Technical Parameters
1 Model FP-5Z
2 Beam quality TEMoo,M2<1.3
3 Average output power 3W@30kHz  >5W@30kHz  >8W@40kHz  >10W@40kHz  >15W@40kHz
4 Marking speed  ≤12000mm/s
5 Wavelength 355nm±1nm
6 aser repetition frequency range 20khz-500khz (adjustable)
7 Single pusle energy ～100uj@30kHz ~160uJ@30kHz ~200uJ@40kHz ~250uJ@40kHz ~300uJ@40kHz
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard and optional）
10 Repeatability 0.01mm
11 Pulse width(ns) ~15ns@30kHz/40kHz
12 Power adjustment range 10%-100%
13 Total Power  ≤500W
14 Cooling system Water cooling
15 Pulse stability <3% rms
16 Equipment operating temperature 0℃-40℃
17 Power requirements AC220V土10%，50HZ/60HZ
18 File Format BMP/DXF/PLT/JPEG/HPGL

UV Laser Marking Samples

紫外标准台式激光打标机20231228_画板 1 副本
