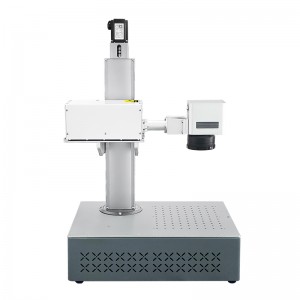

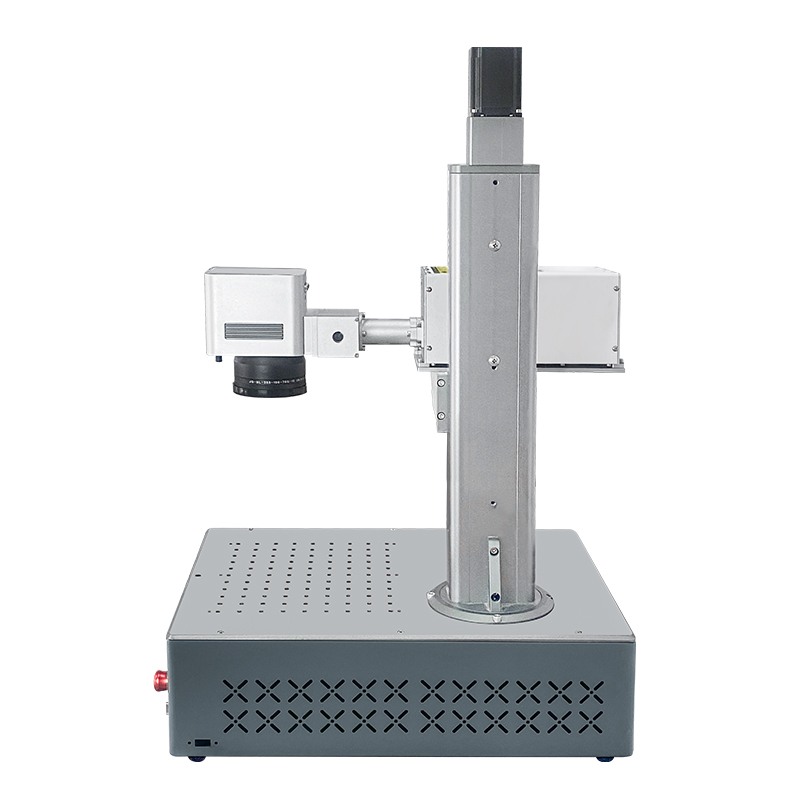

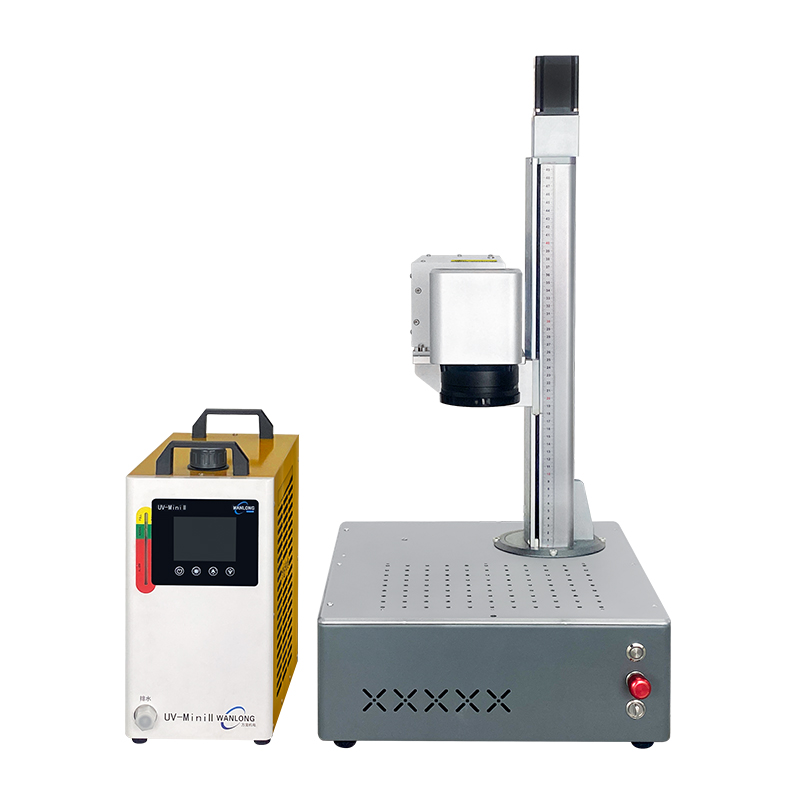

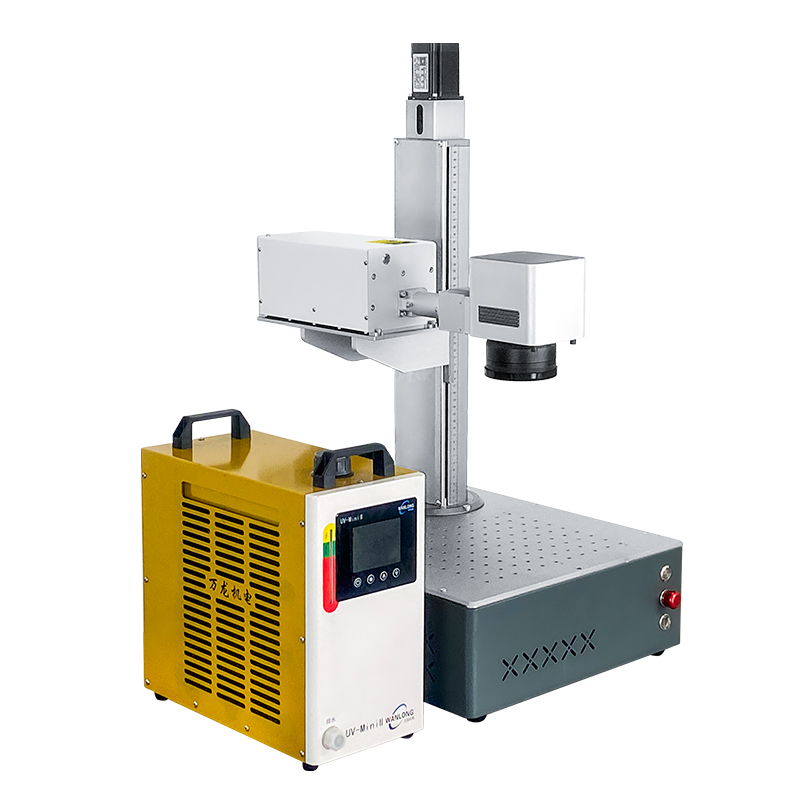

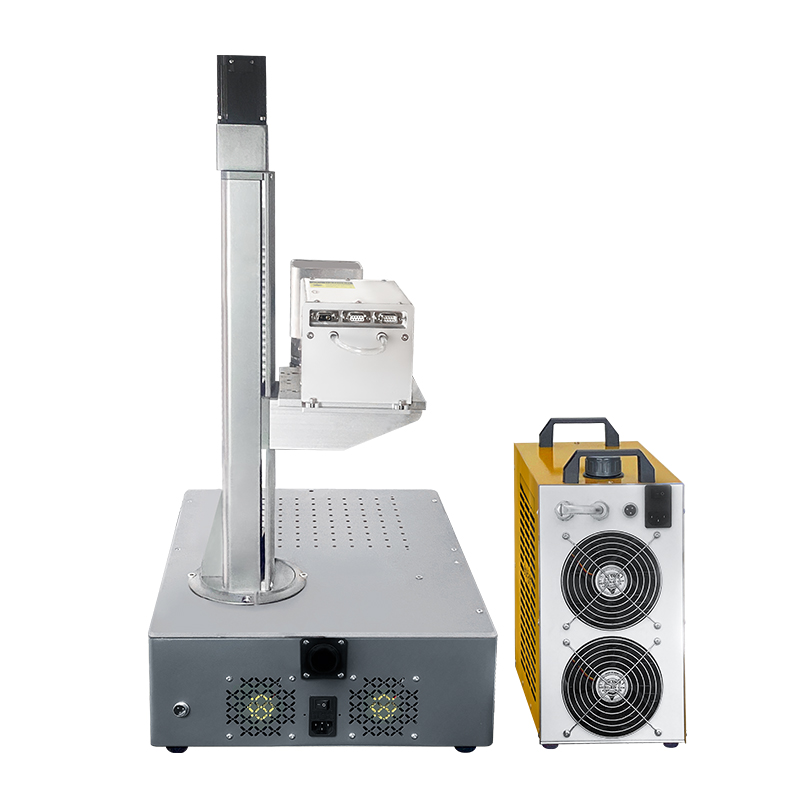

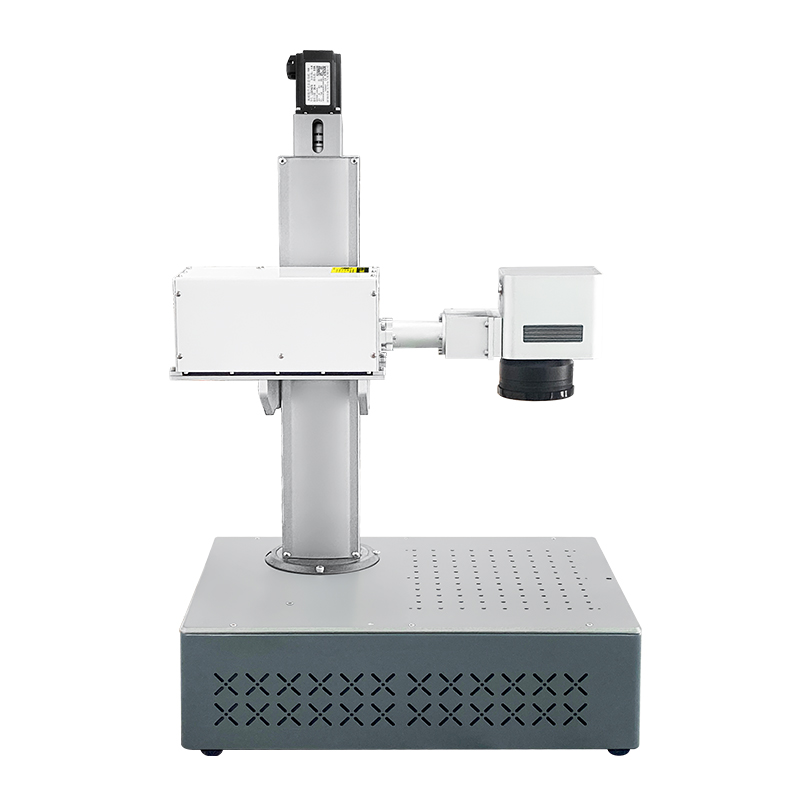

5W 3D UV Laser Inner Engraving Machine Crystal Laser Engraving Machine

Short Description:

5W 3D UV Laser Inner Engraving Machine Crystal Laser Engraving Machine

1. Power: 3W, 5W, 8W, 10W, 15W

2. Marking area: 70x70mm

3. Water cooling system, the industrial water chiller included

4. For crystal material inner engraving

5. It also can do the Relief and flat engraving

Send email to us

Product Detail

Product Tags

Product Features

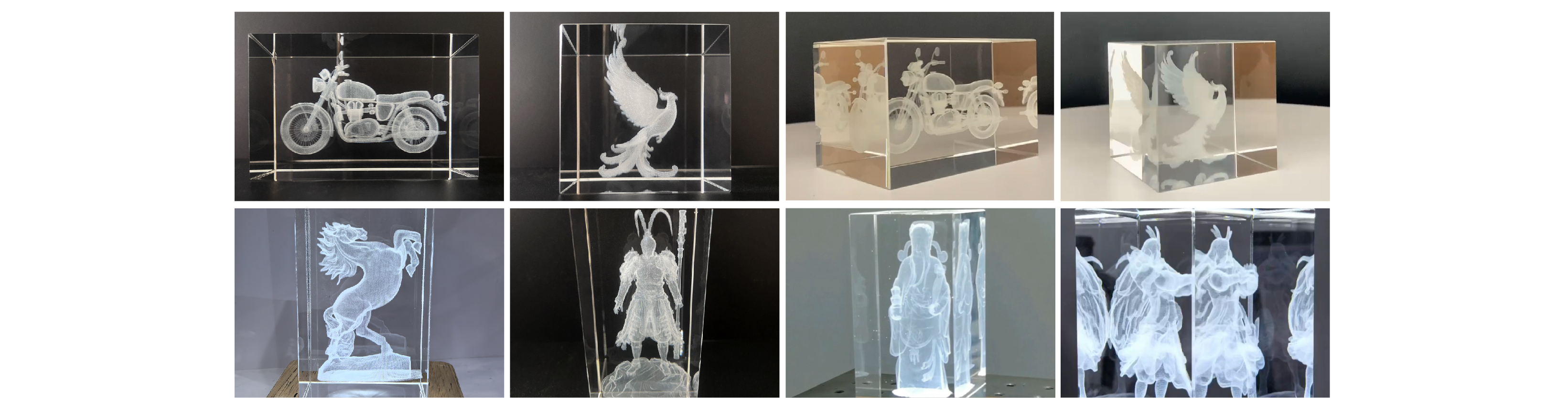

The 3D UV laser crystal carving machine is widely used in high-end customized gifts, trophies and medals, craft decoration, souvenirs, home decoration and other industries.

It can perform high-precision 3D carving inside crystal materials without touching the surface, ensuring the integrity of the material's appearance.

Wide compatib山ty: Not only suitable for internal carving of crystal materials, but also for relief and flat carving, meeting the personalized needs of different customers.

Common application scenarios include:

■ Personalized customized gifts: Customize photos, portraits, commemorative carvings, etc. to create exclusive gifts

■ Enterprise trophies and medals: high-end crystal carvings such as company honor awards, competition trophies, etc

■ Crafts and Home Decoration: Making crystal ornaments and decorations to enhance aesthetics and grade

■ Tourist souvenirs: 3D carving of scenic spots to create unique tourist souvenirs

■ Gold and silver jewelry mold carving, high-precision hard rigid material mold carving, metal and non-metal material carving, thin film cutting processing

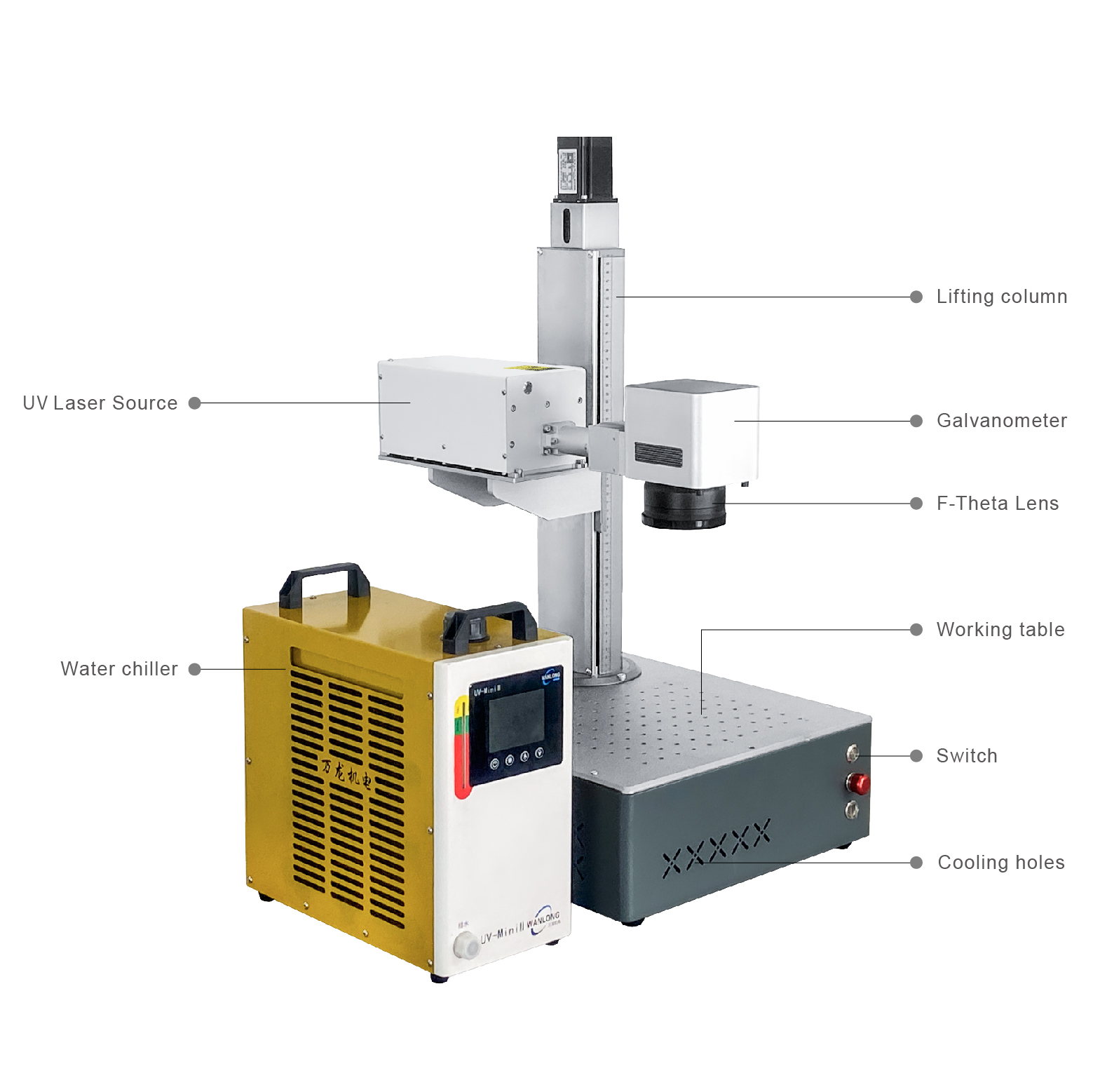

Machine Main Configuration

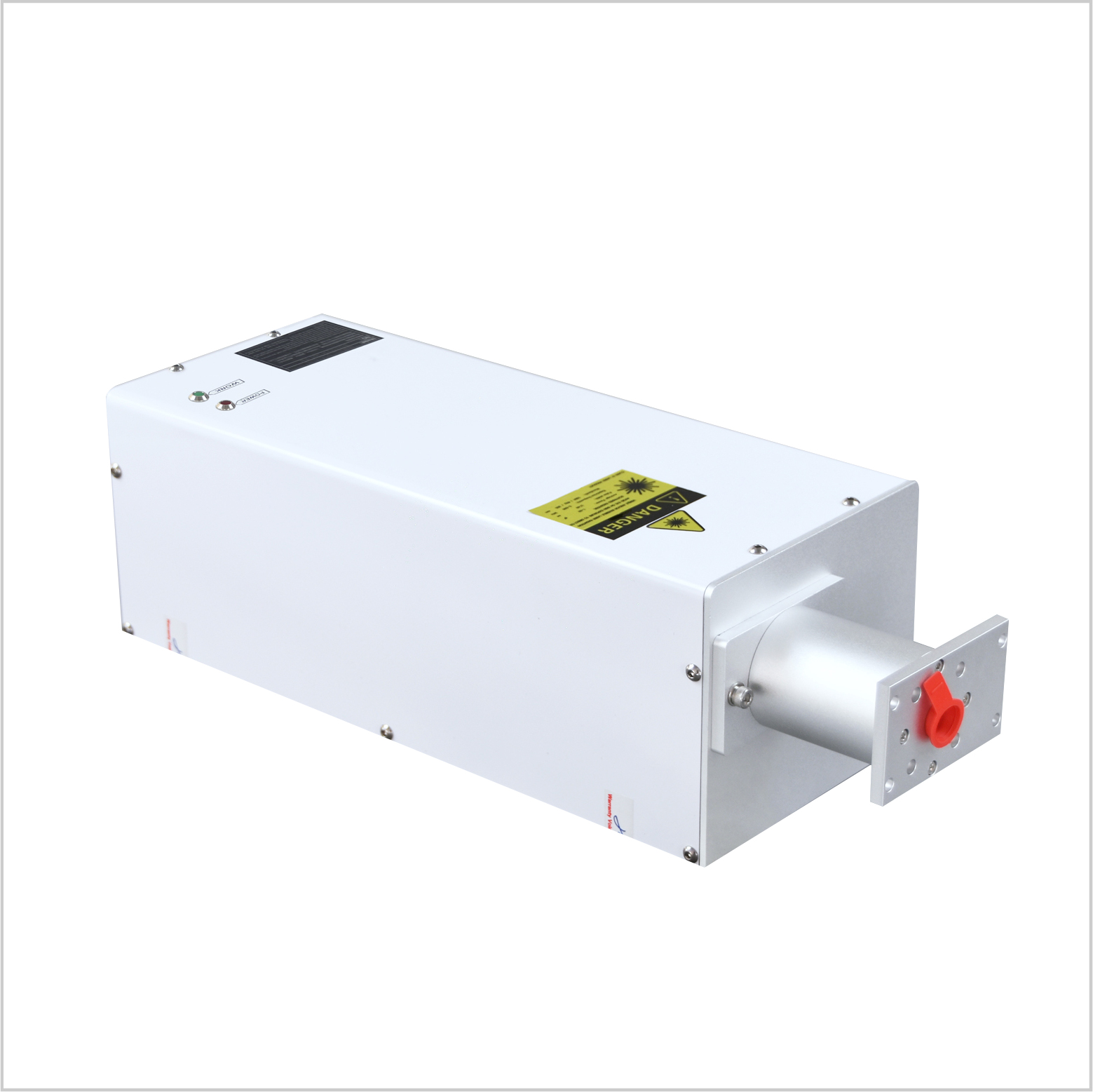

Maiman brand customized UV Laser Source,

5W power

3W, 8W, 10W, 15W optional

Water cooling system, stable beam quality

Free Optic Customized High-speed Digital Galvanometer

Making finding focus easier and marking speed more efficient and precise

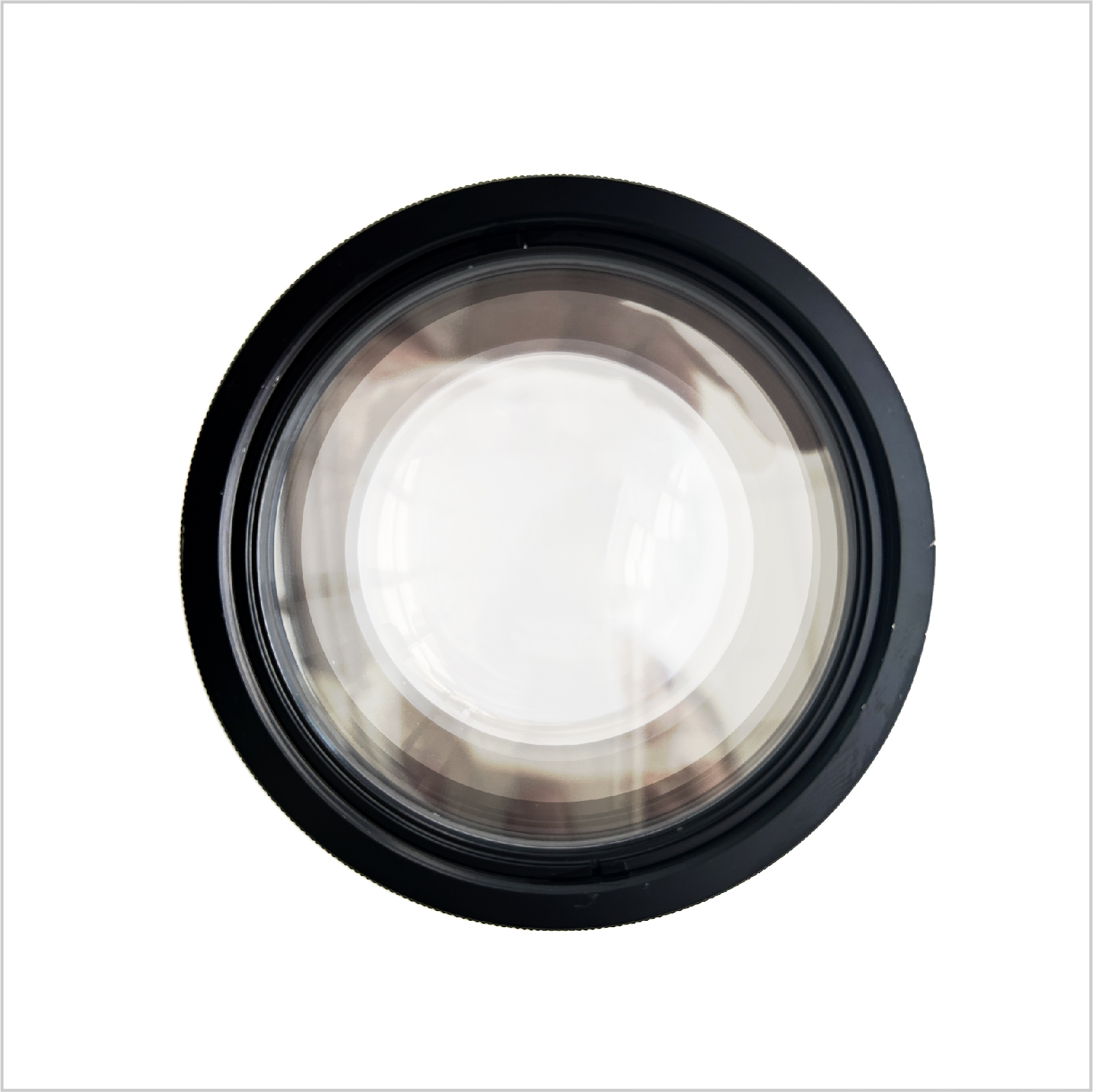

High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

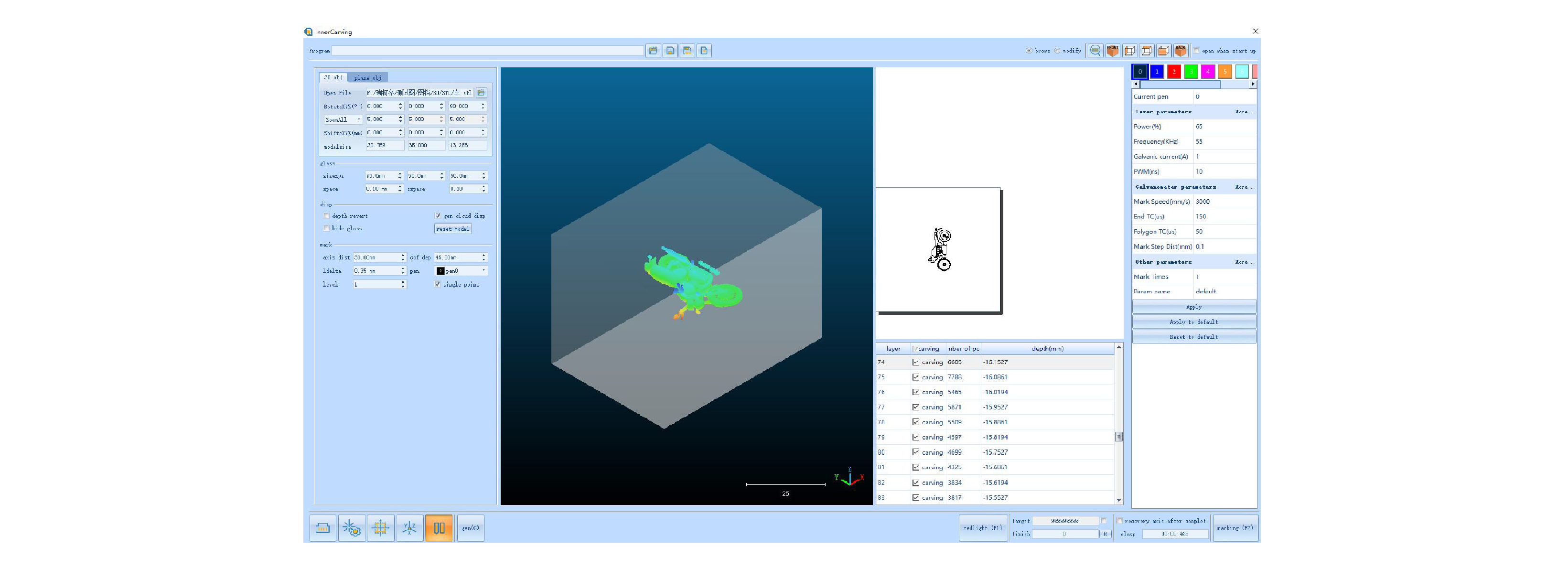

Software Interface

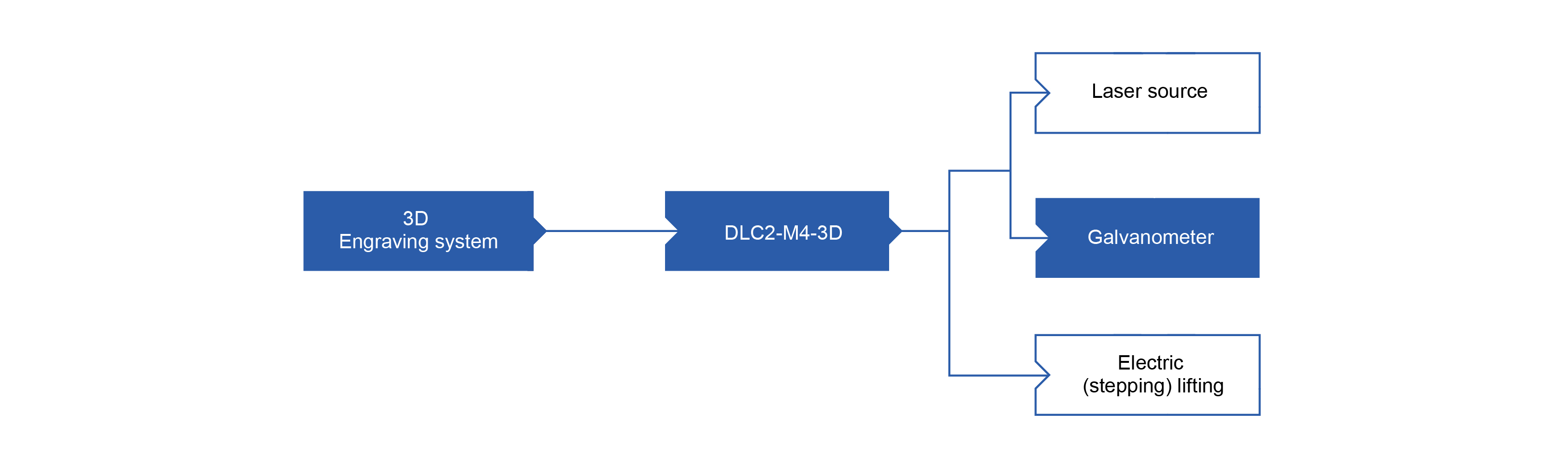

System Structure

Technical Parameters

FP-5Z UV Laser Marking Machine Technical Parameters
1	Model	FP-5Z (FP-3Z, FP-8Z, FP-10Z, FP-15Z)
2	Beam quality	TEMoo,M2<1.3
3	Average output power	>5W@30kHz
4	Marking speed	≤12000mm/s
5	Wavelength	355nm±1nm
6	Laser repetition frequency range	20khz-500khz (adjustable)
7	Single pusle energy	160uJ@30kHz
8	Output spot diameter	0.017mm
9	Marking range	70x70mm (standard）
10	Repeatability	0.01mm
11	Pulse width(ns)	~15ns@30kHz/40kHz
12	Power adjustment range	10%-100%
13	Total Power	≤500W
14	Cooling system	Water cooling
15	Pulse stability	<3% rms
16	Equipment operating temperature	0℃-40℃
17	Power requirements	AC220V/110V土10%，50HZ/60HZ
18	File Format	BMP/DXF/PLT/JPEG/HPGL
