Laser Engraving Machine 20w 30w 50w Fiber optic Laser Marking Machine for metal barcode play code lettering counter nameplate

Short Description:

FP-20T Standard desktop fiber laser marking machine has high photoelectric conversion rate, maintenance-free, long service life and high consistency of beam diameter. Especially suitable for high precision and fine marking. Various fine and complex patterns required by users can be marked on extremely small surfaces.

Product Detail

Product Tags

Product Advantages

It is suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver, etc., and some non-metal materials including PC, ABS, etc. Mainly used in electronic products, hardware sanitary ware, clocks, jewelry and other fields that require high smoothness and fineness.

标准台式2023_画板 1

Technical Parameters

FP-50T Fiber Laser Marking Machine Technical Parameters
1 Model FP-50T
2 Beam quality M': < 1.5 (TE MOO M)
3 Average output power 50W ( 20W, 30W, 100W, 150W, 200W, 300W optional)
4 Marking speed  ≥12000mm/s
5 Laser wavelength 1064nm
6 Laser repetition frequency range 30khz-100khz (adjustable)
7 Character size 0.2mmx0.2mm
8 Output spot diameter 0.017mm
9 Marking range 110x110mm (standard)150x150mm, 175x175mm, 200x200mm, 220x220mm optional
10 Repeatability 0.01mm
11 Output fiber length 3M
12 Power adjustment range 10-100%
13 Total power  ≤500W
14 Cooling system Air cooling
15 Output power stability 0-4℃
16 Power supply AC220V±10%, 50hz/60hz
17 File format BMP/DXF/PLT/JPEG/HPGL

Scope Of Application

Application scope of fiber laser
marking materials

标准台式2023_画板 1 副本

Product Characteristics


Wide Range Of Applications
Can mark all metals, rigid plastics, various coated products. It can mark graphics, QR codes, serial number marking, support all fonts, support network communication and secondary development of some special functions.

Permanent Marker
Laser marking is a marking method that uses a high-energy-density laser to locally irradiate the workpiece to vaporize the surface material or undergo a chemical reaction of color change, thereby leaving a permanent mark.

Easy Operation
With the basics of computer use, you can start to operate the machine within 30 minutes of training.

Marking Speed Is Fast
Using high-speed digital galvanometer, it can carry out assembly line flight marking.

Product Detail

Maintenance Free
Because the equipment uses advanced fiber lasers, it has high photoelectric conversion efficiency, is easy to use, does not require optical adjustment or maintenance, has a compact structure, high system integration, and fewer failures.

Low Environmental Requirements
0.5M², the whole machine is small and compact, and can adapt to harsh processing environments.

No Consumables Required
No need for any consumables, non-toxic, no environmental pollution, high environmental protection

Red Light Positioning
Using red light positioning system, convenient positioning and high positioning accuracy.

Easy Maintenance
The whole machine adopts a modular assembly method, and each component can be disassembled independently, which is convenient for fault diagnosis and later maintenance.

Low Failure Rate
Each component adopts the domestic first-line brand to ensure the stability of the product, and the 48-hour aging test method can be packaged and shipped before leaving the factory.

Can be extended with additional functions. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.

Computer Program
Marking is carried out automatically, marking English, numbers, Chinese characters, graphics, and the printing content can be changed arbitrarily.

标准台式2023_画板 1 副本 3
标准台式2023_画板 1 副本 4

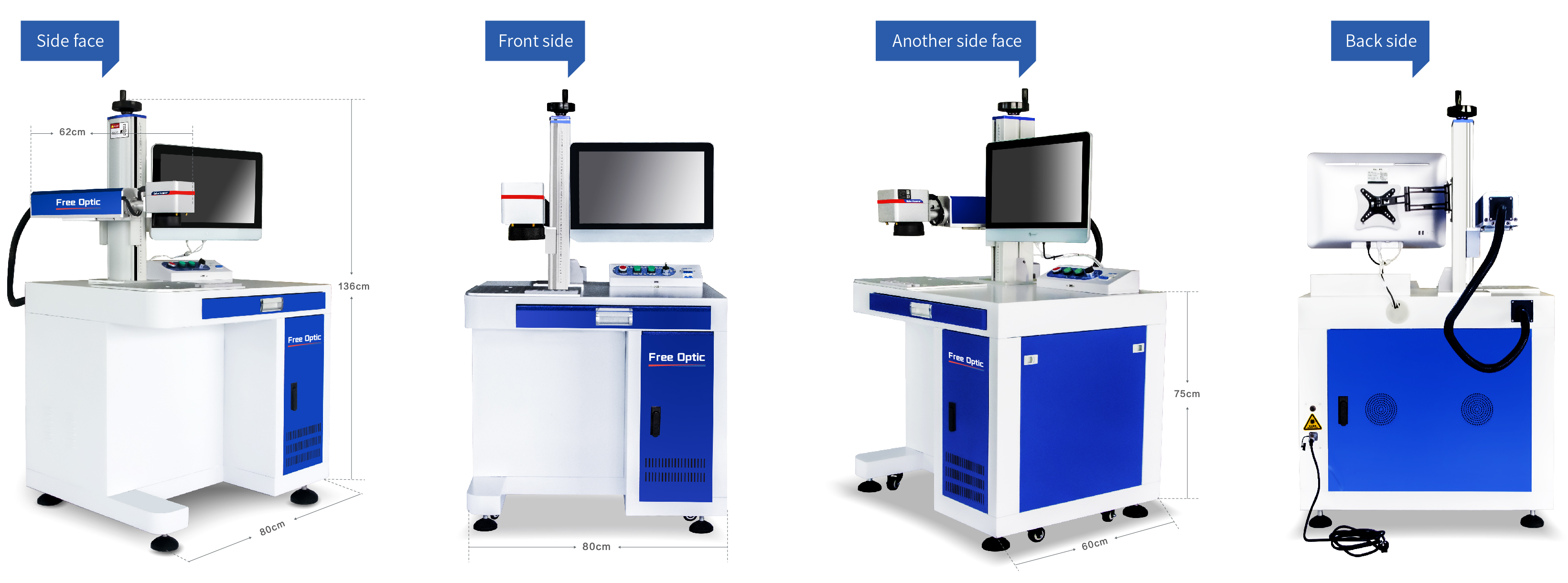

Configuration Options

手持台式2023_画板 1 副本 5

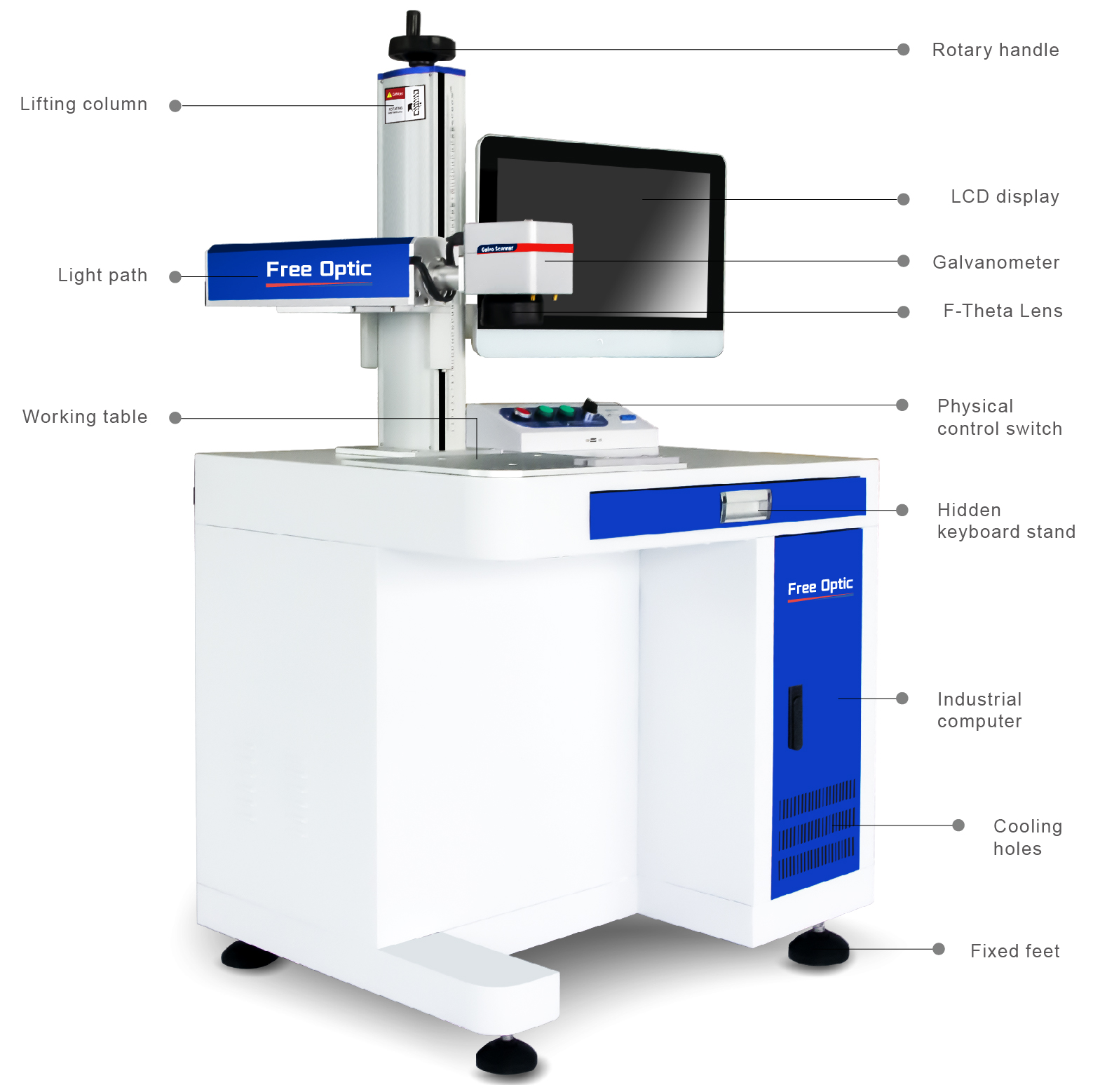

Machine Details Display

标准台式2023_画板 1 副本 6

High-speed digital galvanometer
Double red focus

High Transparency F-theta Lens
The light spot is finer, the anti-dirty coating is wear-resistant and anti-corrosion, and the focus is clear

标准台式2023_画板 1 副本 7
标准台式2023_画板 1 副本 8

Anodized aluminum working table
Full anodized aluminum technology, fine polishing, stable work, craftmanufacturing

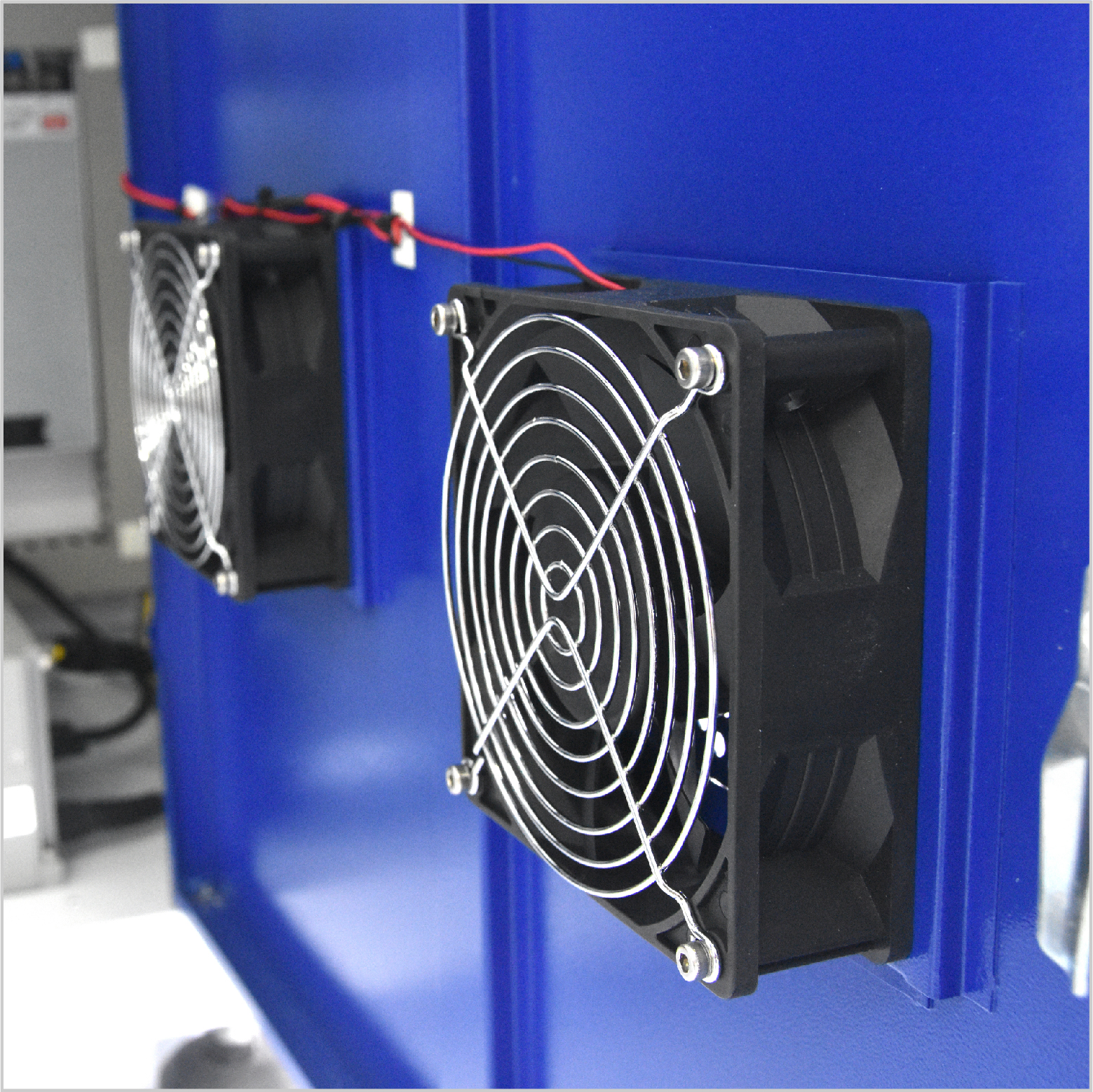

Built-in cooling system
Easily cope with high temperature and high humidity working environment

标准台式2023_画板 1 副本 9
标准台式2023_画板 1 副本 10

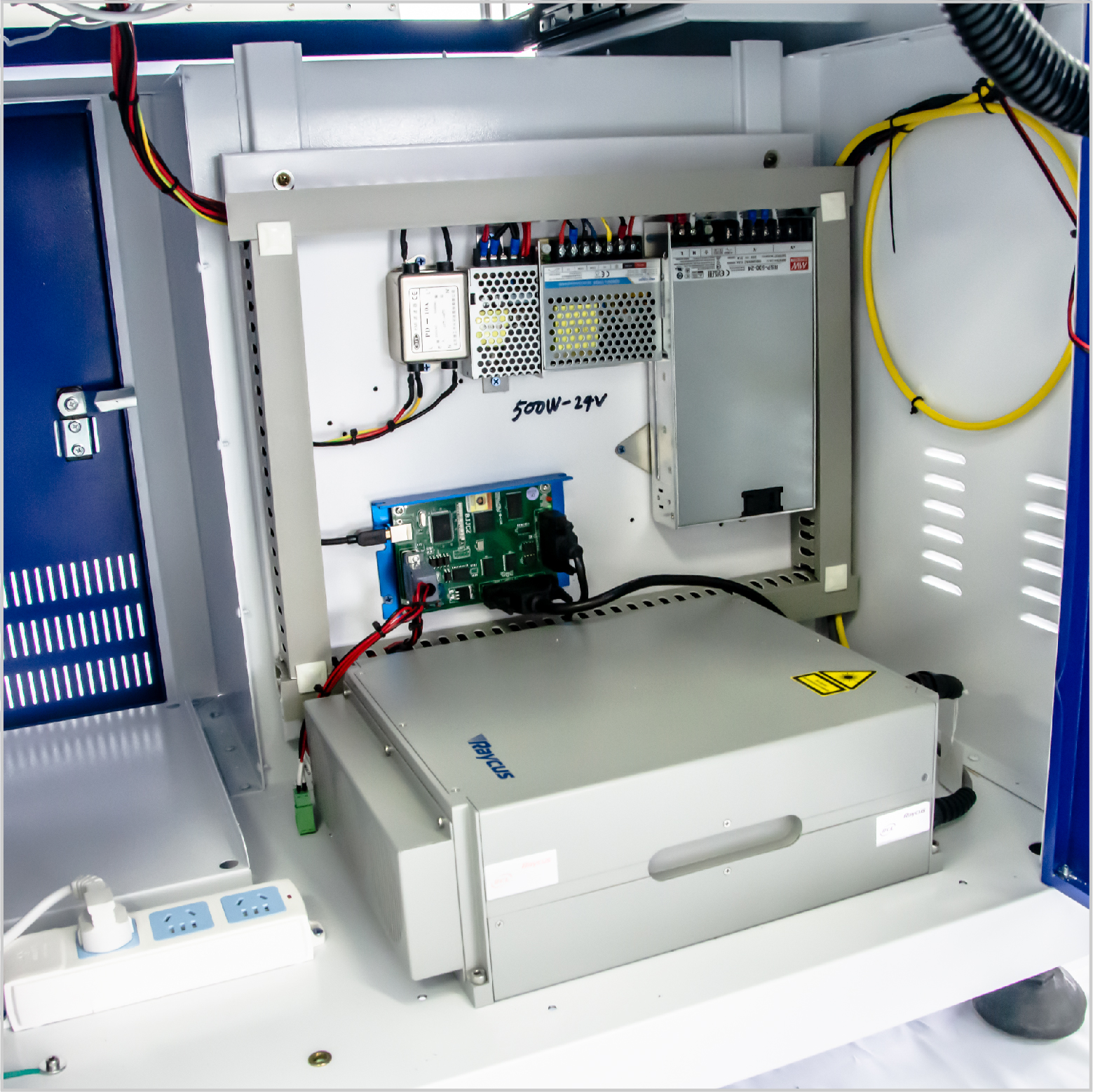

Modular chassis design
Easily troubleshoot and resolve equipment failures

About Logistics Packaging
